PHILIPH Goldway UT4000C Patient Monitor Bedside ECG NIBP SpO2 Temp Monitor

PHILIPH Goldway UT4000C Patient Monitor Bedside ECG NIBP SpO2 Temp Monitor



► Brief Introduction


This monitor, model UT4000C, is one of the multi-parameter monitors manufactured by Kingway. It's a common bedside monitor that can monitor five basic parameters and can be equipped with expansion modules, such as the ETCO2, to broaden its application scenarios.

The monitor features a 10.4-inch color TFT LCD screen that supports up to 8 waveforms displayed simultaneously. It supports external thermal recorder report printing, has a wide AC 100-240V input voltage, and a built-in rechargeable lithium battery, allowing for both AC and DC power consumption.



► Features

1. Multi-parameter integrated monitoring: Simultaneously acquires vital signs including ECG, respiration, non-invasive blood pressure, blood oxygen, body temperature, and pulse rate. Supports 3/5-lead ECG switching and simultaneous display of up to 8 waveform channels.

2. Large-capacity data storage: Stores a large amount of trend data, blood pressure records, and alarm event records. Supports waveform freeze-viewing.

3. Audible and visual alarm management: Multi-level audible and visual alarms with customizable alarm thresholds for each parameter. Supports alarm muting and volume reduction at night.

4.Report printing support: The monitor can be equipped with a built-in recorder to print waveform reports, or an external printer can be connected to output monitoring records, adapting to different departmental workflows.

► Parameters

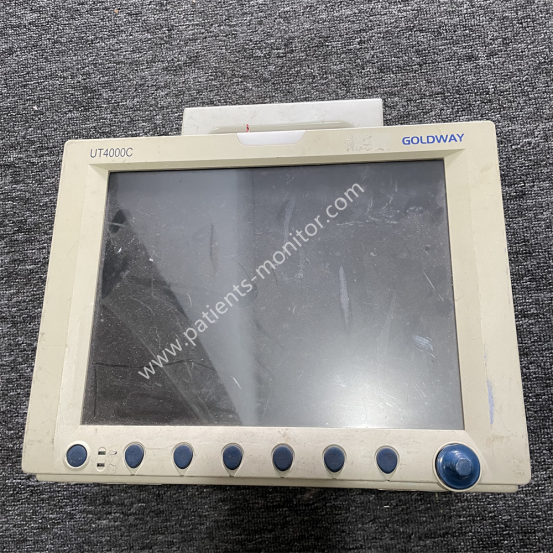

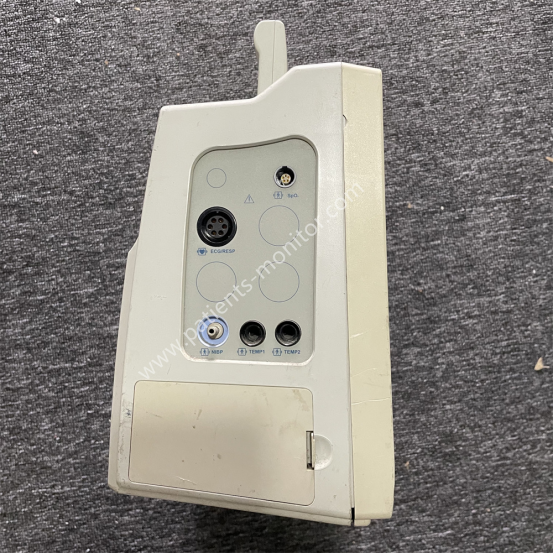

► Product Picture


►FAQ


Q1: What are the differences between the UT4000C and UT4000A PRO?

A1: The UT4000C is geared towards primary care/community healthcare. The software includes medication calculation and a larger font interface; the hardware structure and probe interfaces are mostly compatible; however, some firmware versions are not directly interchangeable, and version number verification is required for motherboard repair and replacement.

Q2: Are the pulse oximeter probe and blood pressure cuff compatible with the UT4000A PRO?

A2: The probe, blood pressure cuff, and ECG cable hardware interfaces are identical and can be used interchangeably.

Q3: Can it perform 12-lead ECGs?

A3: It natively supports 3/5 leads, but does not support 12-lead ECG acquisition. It is only for monitoring purposes and not used as a diagnostic ECG machine.

Q4: What are some common malfunctions?

A4: If the device does not power on, the battery cannot be charged, there is no blood oxygen reading, the blood pressure reading is incorrect, there is no waveform on the ECG, or the recorder does not print, the problem is mostly related to a faulty module, air pump, battery, or interface.
