 ► Brief Introduction

This is a brand-new, original LIN-to-USB interface card (model: IPEH-004052-005624) manufactured by the German company PEAK-System.

Its primary function is to provide a seamless connection between a Windows-based system and a LIN network via a USB interface.

The interface card fully supports the latest ISO 17987 standard, as well as all LIN specifications from version 1.x through 2.2. It can be used to emulate, monitor, and analyze data as either a LIN master or slave node, making it a professional-grade testing tool for applications in automotive electronics development and industrial automation.



► Features

1. Full Version Compatibility

Equipped with a USB 2.0 full-speed interface, the cable is compatible with various USB standards (USB 1.1, 2.0, and 3.0) and supports 5V DC power supply via the computer’s USB port.

2. High-Voltage Isolation and Protection

The LIN interface features up to 500V of galvanic isolation. Furthermore, the LIN lines are designed with short-circuit protection against both the transceiver power supply and GND, ensuring absolute device safety even in complex electromagnetic environments.

3. Free Professional Software

Fully compatible with Windows (10/11) and Linux operating systems, with official device drivers provided at no cost. The device comes with professional monitoring software, PLIN-View Pro, and an open PLIN-API, facilitating secondary development by engineers without the need for additional software license purchases.

4. External Power Supply

An external power supply (6–28V DC) can be connected via the standard DB9 interface to power the LIN transceiver directly, eliminating the need for complex external power setups. The device supports a wide operating temperature range from -40°C to +85°C.

► Parameters

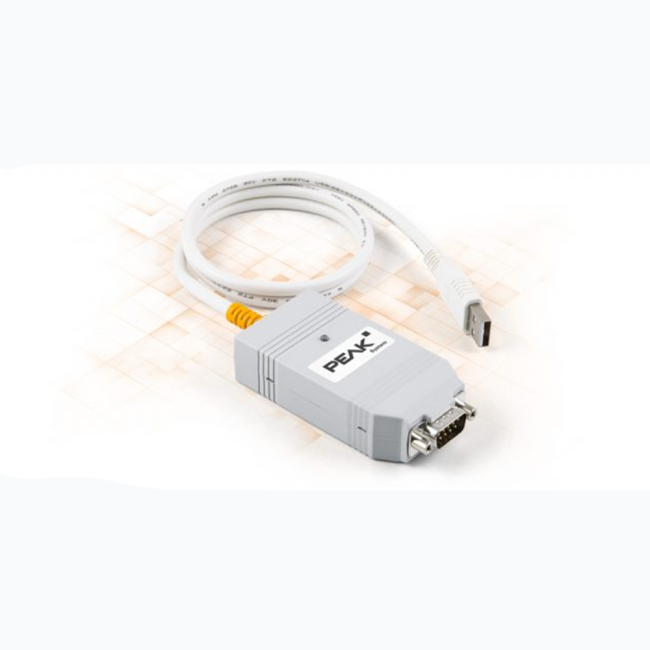

► Product Picture


►FAQ


Q1: Can PLIN-USB handle multiple LIN channels simultaneously?

A1: No. It is a single-channel LIN interface; each device supports only one LIN bus.

Q2: Which operating systems are supported?

A2: It supports Window 10/11, and Linux drivers are also provided.

Q3: What is the difference between this model and the PCAN-USB?

A3: PLIN-USB is a LIN bus adapter, while the PCAN series are CAN bus adapters. They use different bus protocols and are not interchangeable.
