PN UR-0249 Defibrillator Main Keypress Board Cardiolife TEC-7721C TEC-7621C 6190-022638C-S

PN UR-0249 6190-022638C-S NIHON KOHDEN Cardiolife TEC-7721C TEC-7621C Defibrillator Main Keypress Board

About us

CWT Technology HK Limited is a reliable source for refurbished medical equipment,parts and accessories . Any products leaving our facility is guaranteed to be certified for quality and exceed those expectations. We recognize the critical role of our products in diagnostics and embody this responsibility in our service process. At CWT, our priority is to provide high-quality products that will last for many years, while still providing our customers with the most cost-effective option.

CWT Technology HK Limited is located in Guangzhou city and we pride ourselves on providing high quality products to our customers. Our expert engineers have over 12 years of experience in biomedical industry.

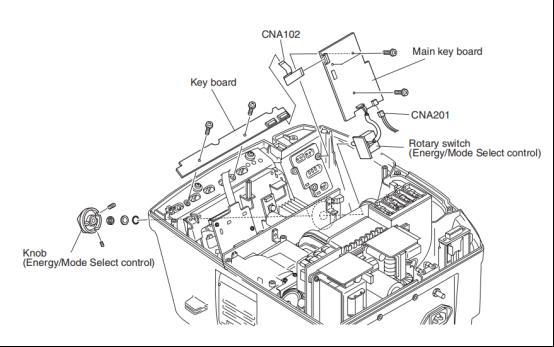

Removing the main key board

1. Remove the battery, memory card and lowercase letters. See. "Removing the Lower Enclosure Cover".

2 Remove the main case and motherboard.

3. Disconnect the following cables. Rotary switch cable.

• CNA201 cable: connect to a test load.

• CNA102 membrane cable: connects to and from the main keyboard.

To remove the membrane cable from the membrane cable connector, use a small flat blade driver and your finger to gently unlock the membrane cable connector, as shown in the enlarged view. Please note that the membrane cable connector is fragile.

4. Remove the three M3 disc screws with washers and spring washers, then remove the main keyboard.

5. Remove the two M3 disc screws with washers and spring washers, then remove the keyboard. Remove the Energy/Mode Selection control knob on the front panel.

1) Remove the two variable screws on the power/mode select control button.

2) Remove the knob, nut, washer and O-ring from the rotary switch

Our Mission

CWT Technology HK Limited provides high-quality products and services to achieve Win-win cooperation and common growth with customers . CWT Technology HK Limited provides a platform to learn and train, self-achievement for the realization of life value; And we are grateful to the society, share feedback, and build a green and beautiful home.

Our vision:

Become a used medical equipment ,parts ,accessories supplier with core competitiveness and international business capabilities

Our Goal

to survive by quality, to be driven by science and technology, to develop by reputation, and to take consumer satisfaction as the ultimate goal.

Our philosophy

self-cultivation, family harmony, career development, and helping the world.

FAQ:

1.Is a warranty provided after paid repair?

We offer a 30-day repair warranty, applicable only to the same fault point.

2.What should be done if a missed fault is discovered after maintenance?

If the customer returns the item, we will provide complimentary repair services and cover the shipping costs.

3.Are returns and refunds permitted during the warranty period?

Yes. If the accessory has quality issues and cannot be repaired or replaced, we offer a full refund.

4.How long does the refund processing take?

After receiving the faulty part and confirming the quality issue, we will process the refund within 3–5 working days.

5.Is a handling fee charged for returns and refunds?

No handling fees are charged; a full refund is provided.

If you're interested in PN UR-0249 6190-022638C-S NIHON KOHDEN Cardiolife TEC-7721C TEC-7621C Defibrillator Main Keypress Board,feel free to contact us .Thank you .
