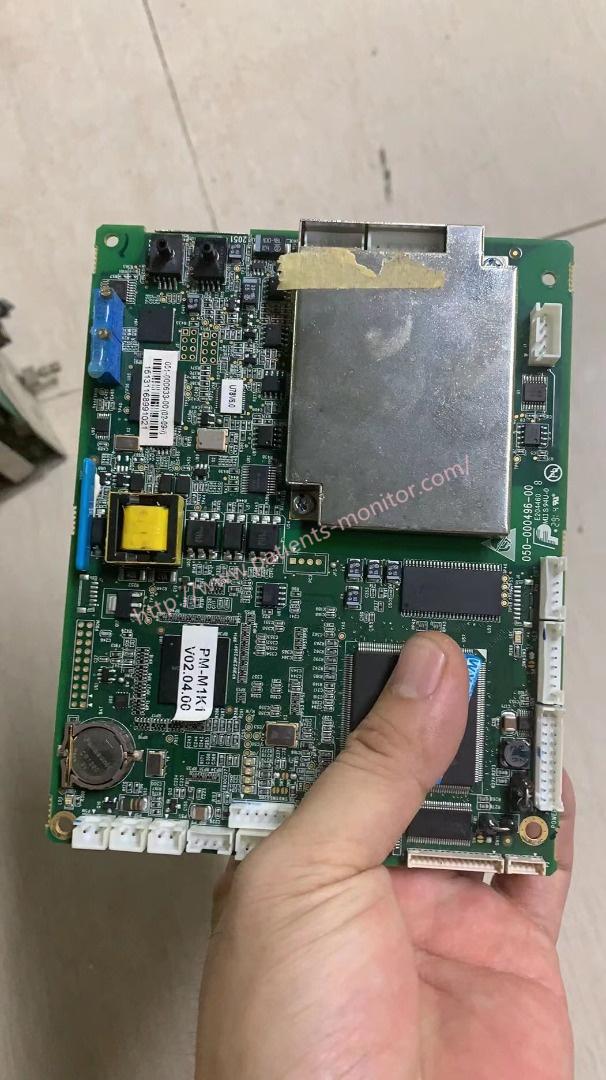

051-000633-00 Mindray MEC1200 MEC2000 Patient Monitor Mainboard Motherboard

The main control of the integrated card is to control the human-machine interface. Manage parameter measurements and provide users with other specific features such as waveform configuration storage and data retrieval.

It is the core of the whole system. It completes the following functions: Parameter measurement, control, handling and timing of the recorder and keyboard, FPGA driver to recognize TFT screen, AU screen and CRT screen, 3-way extended serial port for system fault alarm, RTC storage, Hardware WatchDog and related parameters.

recommend policy

The main control module is the core of the system. With a serial port of various modules TFT display interface and CRT display interface, BDM interface is reserved on the card for troubleshooting or downloading software.

central processing unit

The CPU is the core component of the main control module. It connects peripheral modules via BUS and I / O for data communication. data processing and complete logical control

real time clock

RTC (Real Time Clock) provides hourly data (hours, minutes, seconds) and dates (year, month, day). RTC data can be changed by the CPU.

FPGA and video memory

VRAM is used to store image data. CPU transmits image data to VRAM via FPGA. Data in VRAM is a map of physical display device. The FPGA has several extended serial ports that can communicate with external parameter components. CPU writes received data to FPGA. and the FPGA sends this data to the external parameter section.

watchdog

After switching on, the Watchdog provides a reset signal to the CPU, FPGA and Ethernet controller, provides water dog timer output and voltage monitoring function.

ethernet controls

The Ethernet controller is compliant with the IEEE802.3 / IEEE802.3u LAN standard, supports 10 Mbps and 100 Mbps data rates, and implements data communication between CPU and Ethernet.
