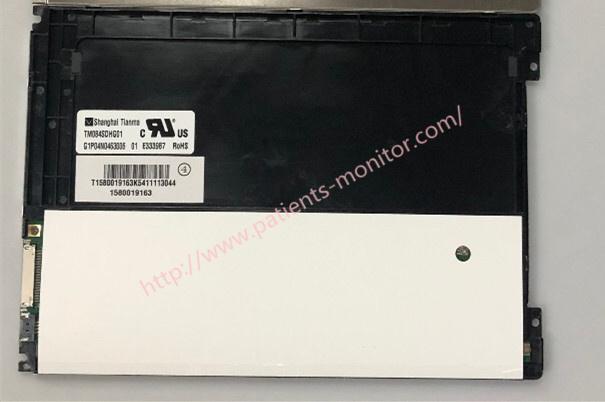

Mindray IMEC8 Patient Monitor Display 8.4'' TM084SDHG01 M1P6563706400
Mindray IMEC8 Patient Monitor Display 8.4" TM084SDHG01 M1P6563706400
The iMEC8, iMEC10 and iMEC12 support 8", 10" and 12" LCD monitors respectively. The displays are connected to the motherboard via display cable and backlight cable. The connection cables of the three patient monitors are different and unreliable. The signal cable is pretty bad. If there is a problem with the display Consider replacing the display cable first.
Touch screen control panel and touch screen
Fully configurable iMEC patient monitor supports touch screen. The touch screen can be controlled by touch and can be calibrated. The touch screen is connected to the touch screen control panel and the main board. The touch screen control panel operates on the touch screen and allows communication with the patient monitor. The touch screen control panel communicates with the main board through the I2C interface, and the touch screen is connected via FPC.
Specification
| Size | 8.4” |
| Resolution | 800 x 600 pixels |
| Dimensions | 268 x 210 x 114mm |
| Waveform | Up to 8 |
| External display | 1 display through VGA |
Display Failures
| Symptoms | Possible Cause | Corrective Action |
|
The display is blank or black.
|
Cable defective |
1. Check whether the cable between the monitor and the motherboard and the backlight cable are connected correctly. 2. Inspect cables and connectors for damage. |
| Main board defective | Replace the main board | |
| isplay defective | Replace the display. |
| Symptoms | Possible Cause | Corrective Action |
|
Images overlapped or distorted
|
main board error |
Replace the main board, or upgrade the main board with the upgrade software.
|
| Cable defective |
1. Check whether the cable between the monitor and the motherboard and the backlight cable are connected correctly. 2. Inspect cables and connectors for damage. |
| Symptoms | Possible Cause | Corrective Action |
|
Snows or flashing specks on the display.The display does not function.
|
Cable defective |
1. Check that the cable between the secondary monitor and the monitor is properly connected.
2. Inspect cables and connectors for damage. |
|
The connector board failed.
|
Replace the connector board . | |
| The main board failed. | Replace the main board. |
| Symptoms | Possible Cause | Corrective Action |
|
Touchscreen does not respond
|
Touchscreen disabled |
Check if there is a displayed above the [ Main Menu ] quickkey. If yes, press and hold the [ Main Menu ] quickkey for more than 3 seconds to enable the touchscreen
|
| Cable defective |
1.Check whether the cables between the touch screen and the touch screen control board, and between the touch screen control board and the main board are connected correctly. 2. Check for loose cables and connectors. |
|
|
Touchscreen control board defective
|
Replace the touchscreen control board | |
| Touchscreen defective | Replace the touchscreen. | |
| The main board failed. | eplace the main board. | |
|
Touch position invalid
|
Touchscreen not calibrated
|
Calibrate the touchscreen. |
