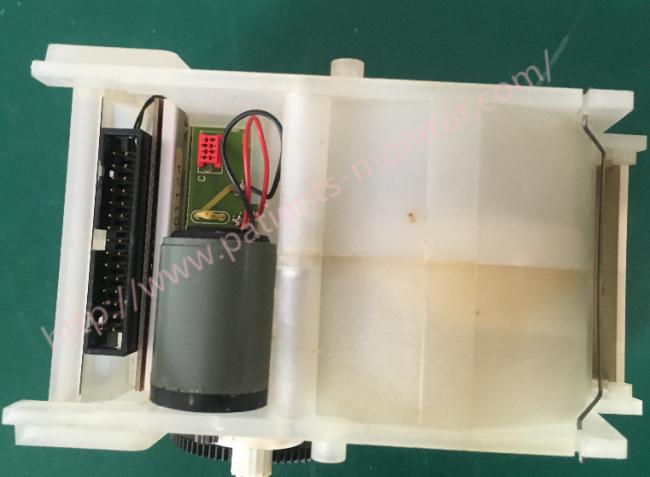

GE Marquette Cardioserv Defibrillator Refurbished Repair Part Printer For Sale

Printer test

The printer is tested in standard mode. Check for paper, and then press the print key. A manual printout will then be printed at 25 mm/s.

Use the ruler to check the printout grid. If there is a deviation, reset the motor speed (see Motor Adjustment on page 42 for details).

Device does not print:

- Is the paper inserted correctly? (thermal side up)

- Is the flat ribbon cable connected to the printer okay?

- Mechanical failure in paper transport, paper feed?

- No paper platinum runs approx. 1 second

- the flaps are not fully closed

- The print key on the membrane keyboard does not respond when pressed (perform a key test)

- Is the motor running? Or the print head voltage? Or move to the data line of the print head? No --> Defective PCB figures?

Recording

Delayed ECG recording stored in the signal memory. (Tape length is 16 seconds, including 4 seconds history) in case of alarm. with alphanumeric text on the edge of the sheet:

- heartbeat frequency

- drive

- Filter

- date

- time

- card speed

- Record the cause (defibrillation, alarm, manual)

- selected power

- Power transfer

- synchronization indicator

- Text (username / hospital / clinic)

After receiving the ECG, print a patient identification document with name, date of birth, user, comment, date, time, energy, and alarm limits.

Direct writing in Cartesian coordinates with thermal recording technology (Print head save thermal paper with electronically controlled heating element) Fixed base line in the center of the area. which can be used to record ECG traces Embossing printing on tables, roll paper, electric card, DC motor control limited delivery time

* Number of recording channels 2

* Paper width 55 mm.

* Maximum core diameter 60 mm. (40 m Marquette Hellige CONTRAST® rollable)

* Print head resolution vertical 6 dots/mm. and horizontal 24 dots/mm.

* Feed rate 25 mm/s ± 5%

* Paper carriage after 16 seconds of manual and automatic start (including history 4 seconds after recording starts) to avoid damage to the print head. Use only genuine Marquette Hellige CONTRAST® chart paper.

FAQ

• How long is is your delivery time ?

Our delivery time is 3-5 working days ,and it will take around 5-7 working days to arrive on your side .

• How can i place the order ?

Contact us firstly ,then we will confirm product details and send proforma invoice to confirm .Orders will be shipped out after receiving payment .

• Do you have product list ?

I’m sorry we don’t have it .If you’re interested in our product ,feel free to send product pictures to get details .

If you're interested in GE Marquette Cardioserv Defibrillator Refurbished Repair Part Printer For Sale ,feel free to contact us .Thank you .
