84Ah 1000W Home Solar Generator 220V AC Inverter Battery For Camping Emergency
Portable Power Station 1000W Power Home Solar Generator With 220V AC Inverter Battery Power Supply for Camping Emergency
Production Description:
1. General
This product specification describes the technique requirements, test procedures and precaution notes of LiFePO4 battery pack AMT12.8V-84Ah-1402, manufactured by Shenzhen AMT Technology Co., Ltd.
2. Battery’s Characteristics:
- Sturdy and pressure resistant steel envelope
- Short time to take full charge
- High capacity and high energy density
- Excellent cycle life
- Excellent high and low temperature performance
- Steady output voltage
- Low self-discharge
- Double safety protection
- With outstanding high level of vibrations and shocks
- Having iron and plastic shells for choice
- Environmentally-friendly
3. Key Parameter for cell and battery pack
| Item | Parameter | Remark | |
| Cell | Type | LiFePO4 Rechargeable Battery | |
| Cell Model | LF3.2V-84Ah | RP | |
| Nominal Capacity | 84Ah | Discharge : 0.2C | |
| Cut-off Voltage:2.5V | |||
| Minimum Capacity | 84Ah | Discharge : 0.2C | |
| Cut-off Voltage: 2.5V | |||
| Nominal voltage | 3.2V | ||
| Internal Impedance | ≤1mΩ | ||
|
Battery pack |
Pack Method | 4S1P | |
| Nominal Capacity | 84Ah | Discharge : 0.2C | |
| Cut-off Voltage:10V | |||
| Minimum Capacity | 84Ah | Discharge : 0.2C | |
| Cut-off Voltage: 10V | |||
| Nominal Voltage | 12.8V | ||
| Energy | 1075Wh | ||
| AC Output | 100V-120V 50/60Hz or 220V-240V 50/60Hz, Pure sine wave output. | ||

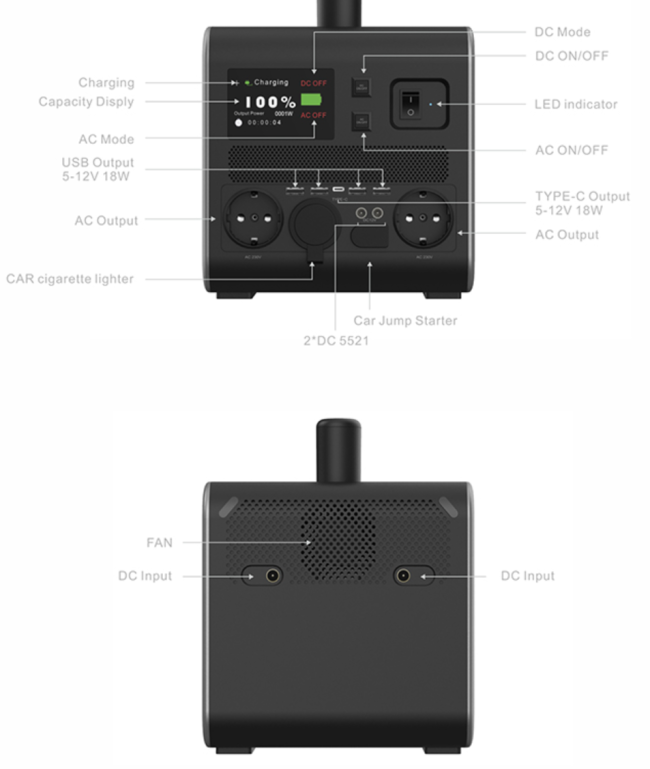

| DC Output | 4xUSB Port/1xC-TYPE Port/2xDC Port/ 1xCar Cigarette Port | ||
| USB/C-Type Port | 5V/2.4A, 9V/2A, 12V/1.5A | ||
| DC12V Port | 12V/5A | ||
| DC12V Cigarette Port | 12V/10A | ||
| Continuous Power | 1000W | Peak 2000W | |
| Car Jump Starter | 150A Peak | ||
| Charging Ways | Wall Charging&Solar Charging(PWM Type) | ||
| Wall Charging | AC90-264V,50/60Hz,120W Max | ||
| Solar Charging | DC5-24V,120W Max | ||
| Wind Charging | DC 5-24V,120W Max | ||
| Life Cycles | Over 2000 times | ||
| Charging time | 20h | ||
| Basic Accessories | One Adapter,One Power Cord | ||
| Working Temperature Range | Charge: 0°C--45°C | ||
| Discharge: -20°C--60°C | |||
| Storage Temperature | -10°C--50°C | ||
4. Product Application
5. Product Circuit diagram
6. Supported Devices
7. Package Includes
8. Packing drawing
9. Safety Guarantee
10. Electrical Performance for cell
| Item | Test Condition | Specification |
| Open-Circuit Voltage | The open-circuit voltage shall be measured within 24hours after standard charge | ≥13.2V |
| Battery Capacity | The discharge time at 40A shall be measured after standard charge at 20±5℃ and rest 30mins | ≥100% |
| Cycle Life | The discharge time on standard discharge shall be measured after 2000 cycles of standard charge and discharge at 20±5℃ | ≥80% |
| Charge(capacity) retention | The discharge time at 40A shall be measured after standard charge and then storage at 20±5℃ for 28days | ≥80% |
| Temperature Characteristics | After standard charging at 20±5℃, laying the battery at 55℃ for 2hour, then discharge at 40A to 10V, record the discharge time | ≥80% |
| Temperature Characteristics | After standard charging at 20±5℃, laying the battery at -10℃ for 4hour, then discharge at 40A to 10V, record the discharge time | ≥60% |
11. Machanical Performance for cell
| Item | Test Condition | Specification |
| Crush Test | A battery is to be crushed between two flat surfaces. The force for the crushing is to be applied by a hydraulic ram with a 32mm diameter piston. The crushing is to be continued until a pressure reading of 17.2mmPa is reached on the hydraulic ram, applied force of 13kN. Once the maximum pressure has been obtained it is to be released. | No fire,No explosion |
| Drop Test | The battery has only two axes of symmetry in which case only two directions shall be tested. The battery is to be dropped from a height of 1 meter twice onto concrete ground. | No explosion, No fire, No smoke |
| Vibration | A full-charged battery is to be subjected to simple harmonic motion with an amplitude of 1.6mm total maximum excursion. The frequency is to be varied at the rate of 1 hertz per minute between 10 and 55 hertz. The cell shall be vibrated for 30 minutes per axis o XYZ axes. | No leakage, No Fire, No explosion |
12. Cell Safety Performance
| Item | Test Condition | Specification |
| Over charge | At 20±5℃, charging battery with constant current 1C to voltage 4V, then with constant voltage 4V till current decline to 0. | No explosion, No fire |
| Over discharge | At 20±5℃, according to the requirement of the standard of discharge after discharge to termination voltage, 30 m Ω external load discharge within 24 hours. | No explosion, No fire |
| Short-circuit | At 20±5℃, Standard charge, across the electrodes of the battery with a less than 50 m Ω wire connection, 6 hours | No explosion, No fire The temperature of the surface of the cell are lower than 150℃ |
| Heating | Battery is heated in a circulating air oven at a rate of 5±2℃ per mins to 130℃, an then placed 30 mins at 130℃ | No explosion, no fire |
13. Our Company
Shenzhen AMT Technology Co., Ltd, a professional manufacturer of LiFePO4 Lithium ion batteries. Our LiFePO4 Lithium ion batteries provide steady discharge & charge performance in a lighter volume, are applicable for different kinds of EV/PHEV/UPS/Storage energy/Starting power supply.Have passed ISO 9001, ISO 14000,UL1642/UN38.3/CB(IEC62133)/BIS/ROHS/CE certification, With our advanced equipments, we can provide customized product with high quality.
