3.7v 1500mAh 853450 Polymer Li Ion Battery 8.5*34.0*52.5MM
Price:
Negotiate
MOQ:
1000pcs
Delivery Time:
2~3weeks for samples,4~5 weeks for mass production
Brand:
ODM/OEM
Product Description
3.7v 1500mAh 853450 1500mAh Rechargeable Li-ion battery for Wireless / RC / GPS
Production Description:
1. Basic Parameters
| Item | Rating | Note | ||
| Capacity | Typical | 1500mAh | Discharge:0.2CmA | |
| Minimum | 1450mAh | cut off Voltage:3V for cell | ||
| Nominal Voltage | Average 3.7V | Discharge:0.2CmA | ||
| cut off Voltage:3V for cell | ||||
| AC Impedance Resistance | ≤220mΩ | |||
| Discharge Cut-off Voltage | 3.00V | |||
| Charge Current | 300mA | Standard Charge | ||
| Charge Voltage | 4.2V | |||
| Max. Charge Voltage | 4.23V | |||
| Storage humidity | < 75%RH | Hygrometer | ||
| Max. Charge current | 1500mA | 1.0CmA | ||
| Max Continued Discharge Current | 1500mA | 1.0CmA | ||
| Weight | Approx 35g | |||
| Shipping Voltage | >3.80V | |||
| Operating Temperature | Charge | 0~+45℃ | Can be operated at max Altitude 3000m and 8%~90% humidity. | |
| Discharge | -20~+60℃ | Get more than 50% discharge capacity (typical) in -15°C or +55°C. | ||

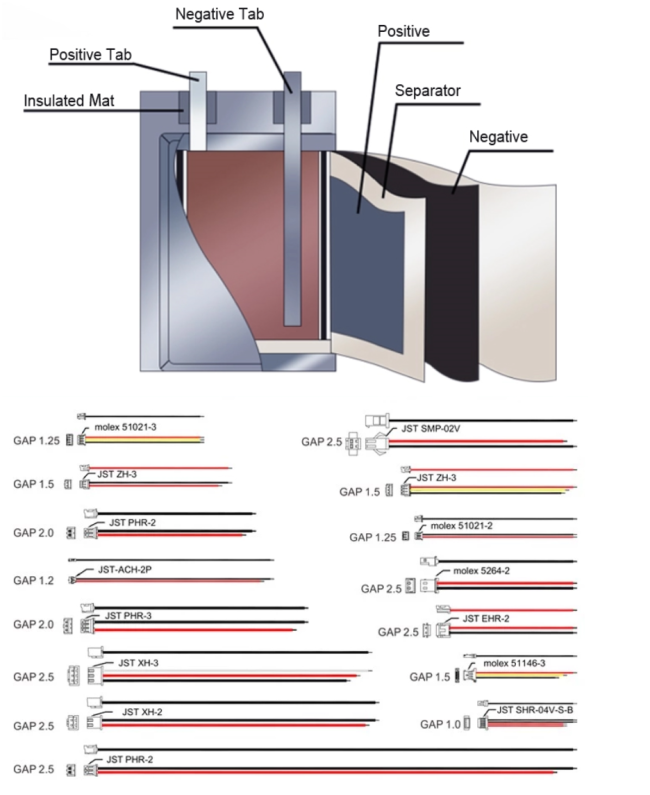

2. Cell Structure and Connector
3. Safety Characteristics
| Items | Criteria | Test Method |
| Over-charge | No fire. No explosion. | Charging to 6V with Maximum Charging Current after Standard Discharge, then CV Charge till current decline to End-of-Charge Current or CV time is more than 7hours. |
| Short-Circuit | The maximum Temperature: ≤150℃. No fire. No explosion. | Rest for 30miniutes at (55±2)℃ after Standard Charge, then short-circuit battery by connecting the positive and negative terminals with a circuit load having a resistance load(copper wire) of 80±20mΩ.Test can be terminated when battery surface temperature has returned to ±10°C of environment temperature. |
| Thermal Abuse | No fire. No explosion. |
The battery is to be heated in a gravity convection or circulating air oven after Standard Charge. The temperature of the oven is to be raised at a rate of 5±2℃per minute to a temperature of 130 ±2°C and remain for 10 minutes. |

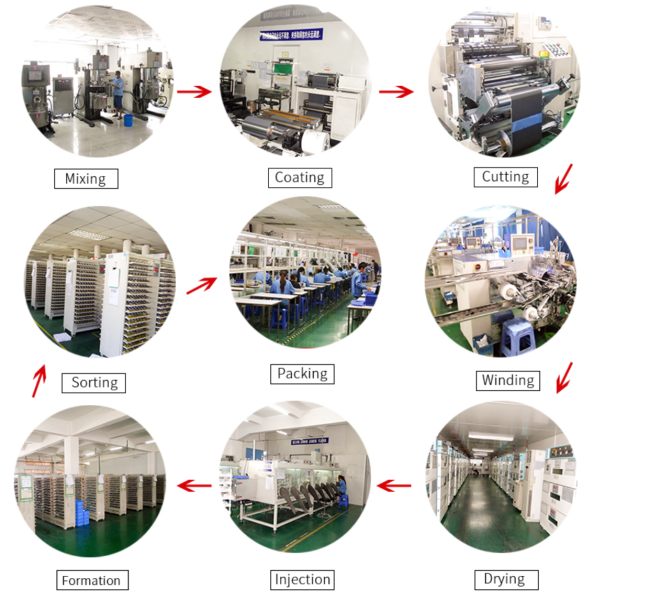

4. Production Process
5. Application
6. Production Equipment
7. Package and Delivery
