3.7V 1000mAh Li Polymer Rechargeable Square Battery 703048 For Wireless RC GPS
Price:
Negotiate
MOQ:
1000pcs
Delivery Time:
2~3weeks for samples,4~5 weeks for mass production
Brand:
ODM/OEM
Product Description
3.7V 1000mAh Li-polymer rechargeable square battery 703048 for Wireless / RC / GPS
Production Description:
1. Basic Parameters
|
Items
|
Specifications
|
|
keywords
|
lithium polymer battery 703048
|
|
Charge voltage
|
4.2V
|
|
Nominal voltage
|
3.7V
|
|
Nominal capacity
|
1000mah
|
|
charge current
|
Standard Charging:0.5C
|
|
Rapid charge: 1.0C
|
|
| Standard Charging method |
0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
|
|
charging time
|
Standard Charging:2.75 hours(Ref.)
|
|
Rapid charge: 2hours(Ref.)
|
|
|
Max.charge current
|
1.0C
|
|
max.discharge current
|
1.0C
|
|
Max.discharge current
|
2.5V±0.25V(15C)
|
|
Operating temperature
|
Charging: 0 °C ~45 °C
|
|
Discharging:0 °C ~45 °C
|
|
|
Storage temperature
|
-10~ +45 °C
|
|
Weight
|
approx 18g
|
2. Cell Structure and Connector
3. Safety Characteristics
| Items | Criteria | Test Method |
| Over-charge | No fire. No explosion. | Charging to 6V with Maximum Charging Current after Standard Discharge, then CV Charge till current decline to End-of-Charge Current or CV time is more than 7hours. |
| Short-Circuit | The maximum Temperature: ≤150℃. No fire. No explosion. | Rest for 30miniutes at (55±2)℃ after Standard Charge, then short-circuit battery by connecting the positive and negative terminals with a circuit load having a resistance load(copper wire) of 80±20mΩ.Test can be terminated when battery surface temperature has returned to ±10°C of environment temperature. |
| Thermal Abuse | No fire. No explosion. |
The battery is to be heated in a gravity convection or circulating air oven after Standard Charge. The temperature of the oven is to be raised at a rate of 5±2℃per minute to a temperature of 130 ±2°C and remain for 10 minutes. |

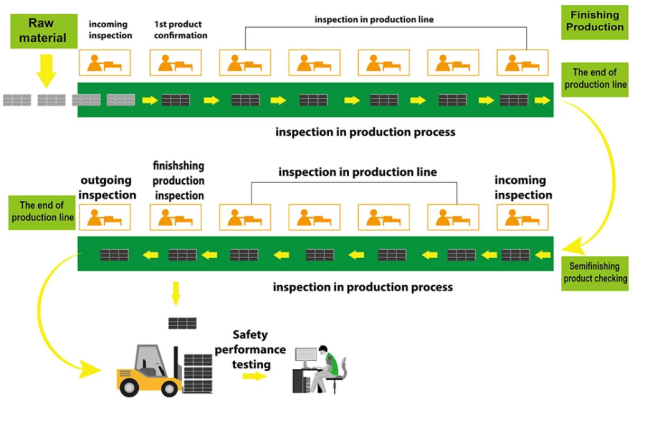

4. QA Inspection
5. Application
6. Production Equipment

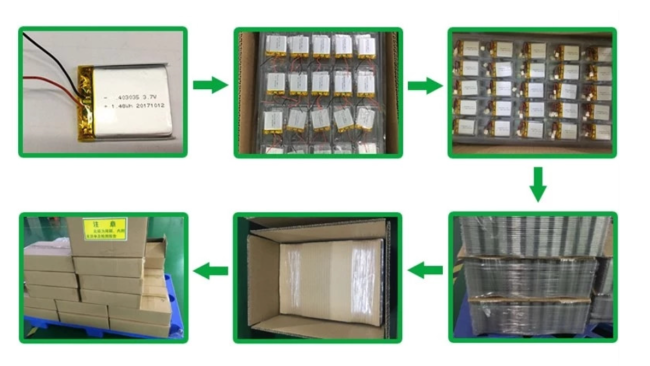

7. Package and Delivery

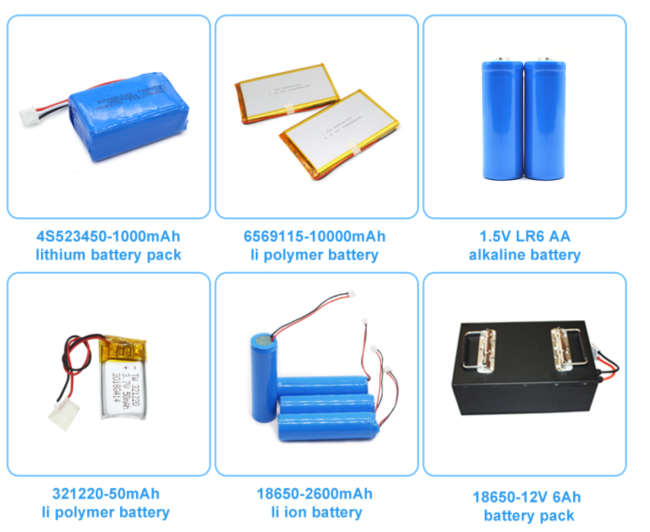

Similar Products
