AMT 480V 20Ah 40Ah 60Ah 100Ah UPS Rechargeable Battery For Telecommunication Station
Rechargeable battery 480V 20Ah 40Ah 60Ah 100Ah for telecommunication station UPS battery
Product Information:
1. Battery Parameter:
| No. | Item Name | Basic parameter | ||
| 1 | Matched UPS | 20KVA~100KVA | ||
| 2 | Charging voltage | 480V | ||
| 3 | Max voltage | 547.5V | ||
| 4 | Mini Voltage | 375V | ||
| 5 | Nominal capacity | 20Ah | 40Ah | 60Ah |
| 6 | Nominal energy | 9.6Kwh | 19.2kwh | 28.8kwh |
| 7 | Standard charging current | CC-CV mode | ||
| 20A | 40A | 60A | ||
| Cut-off current 1.25A | ||||
| 8 | Standard discharging current | CC mode | ||
| 50A | 80A | 120A | ||
| 60A | 160A | 240A | ||
| Max constant current 3S | ||||
| 9 | Max discharge watt | 28.8KW | 76.8KW | 115.2KW |
| 10 | Backup time | 20min | 15min | 15min |
| 11 | Weight | 130kgs | 205kgs | 320kgs |
| 12 | Temperature range | -10~55℃ | ||
| 13 | Communication interface | 485/CAN BUS | ||
| 14 | Cycle life time | 80% DOD, 3500 times | ||
| 15 | Size(W*H*D:mm) | 9U | 18U | 30U |
| 443*396*600 | 443*792*600 | 443*1320*600 |
2. Our Advantage:
•Land Area Saving: 50%
•Installation Efficiency Increase: 40%
•Energy Consumption Saving: 30%
•Annual Availability: 98%
•Life Increase: 33% (10,000 Cycle Performance)
•Transportation Cost Saving: 30%
3. Application:
This battery system mainly match with UPS. It can be compatible with UPS perfectly.

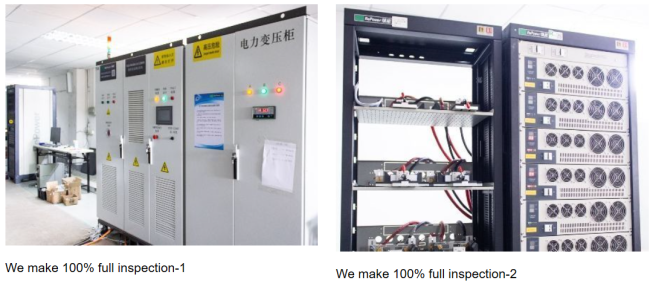

4. Quality Control
We do 100% full inspection before shippment. And we can provide completed test report for each piece battery

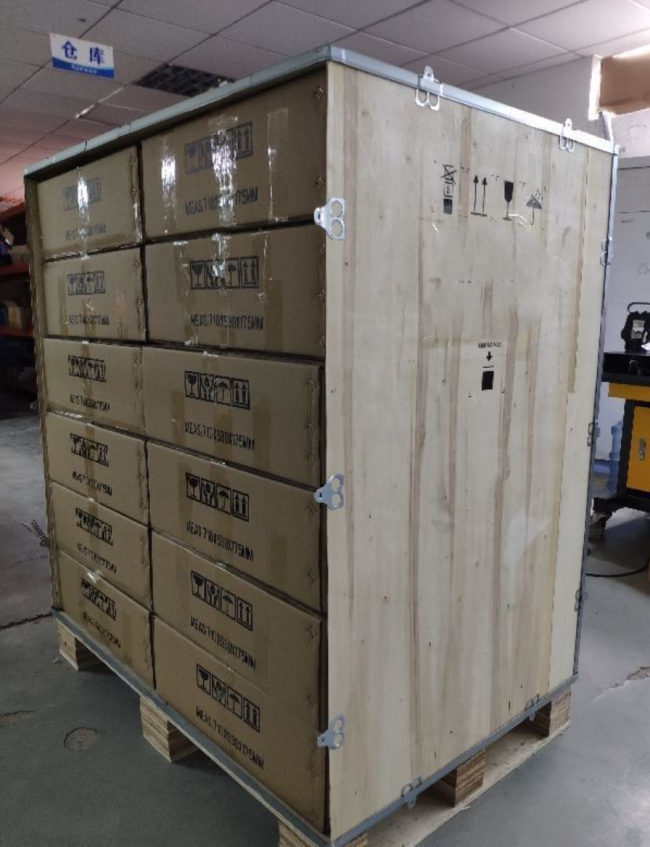

5. Package and shipping
The standard export wooden case packaging.The inner packaging is 5 layers carton.
