3.7V 900mAh 18350 Single Cell Batteries
Lithium ion Rechargeable Cylindrical Battery 3.7V 900mAh 18350 Single Battery Cell With/out PCB and Cap
18350-900mAh Lithium Ion Battery Features:
- Large capacity. 18350 lithium battery capacity is generally between 900mAh - 1200mAh. 18350 lithium battery pack is casually can break through 5000mAh.
- Long life. Cycle life can reach more than 500 times.
- High safety performance. No explosion, no combustion, no poison, no pollution.
- High voltage. Nominal voltage is 3.7V.
- No memory effect. Before charging Do not have to discharge the remaining electricity, easy to use.
- Small internal resistance. Greatly reduces the battery self power consumption.
1. Product Description:
| Product |
18350-900 |
Remark | |
| Rated Capacity | Typical | 900mAh |
standard discharge(0.2C) after standard charge |
| Minimum | 900mAh | ||
|
Alternating Internal Resistance |
≤70mΩ | ||
| Nominal Voltage | 3.7V | mean operation voltage | |
| Voltage at end of Discharge | 3.0V | discharge cut-off voltage | |
| Charging at end of Voltage | 4.2V | ||
| Standard Charge |
Constant Current 0.2C Constant Voltage 8.4V 0.02C cut-off |
charge time:Approx 6.0h | |
| Standard Discharge | Constant Current 0.2C end Voltage 3.0V | ||
| Fast Charge |
Constant Current 1C Constant Voltage 8.4V 0.02C5A cut-off |
charge time:Approx 5h | |
| Fast Discharge | Constant Current 1C end Voltage 3V | ||
| Cycle Characteristic |
300times(100%DOD) 500 times(80%DOD) 800 times(50%DOD) |
the residual capacity is no less than 80% of rated capacity at 1C rate. |
|
|
Maximum Continuous Discharge Current |
1C | pulse discharge current: 3C | |
| Operation Temperature Range |
Charge:0~55℃ Discharge:-20~60℃ |
60±25%R.H. bare battery | |
| Storage Temperature Range |
Less than 1 year:-20~25℃ Less than 3 months:-20~45℃ |
60±25%R.H. at the shipmen | |
2. Our Advantages:
- 128 Key quality control points
- 72 Hrs high temperature aging
- 350 Hrs room temperature storage
- 50+ Performance testing
- 3 Levels OCV inspection

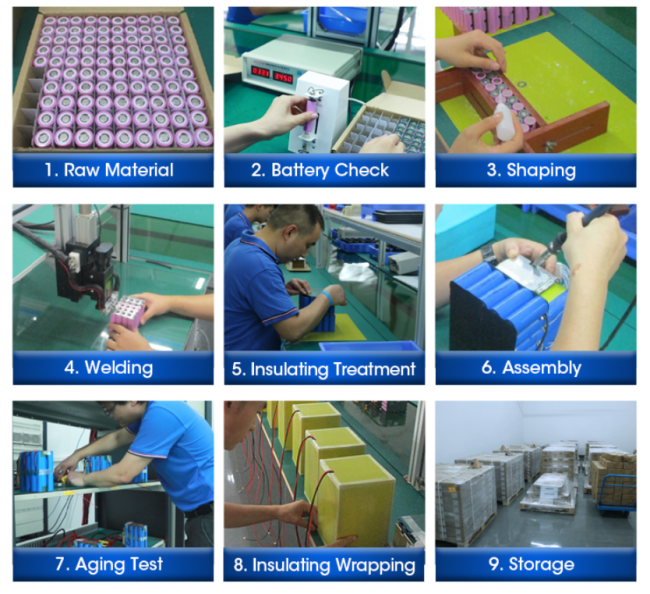

3. Battery Assemly:
4. Application:
Solar power system, Notebook, walkie-talkie, instrumentation, audio equipment, aeromodelling, toys, cameras, digital cameras, and other electronic equipment.

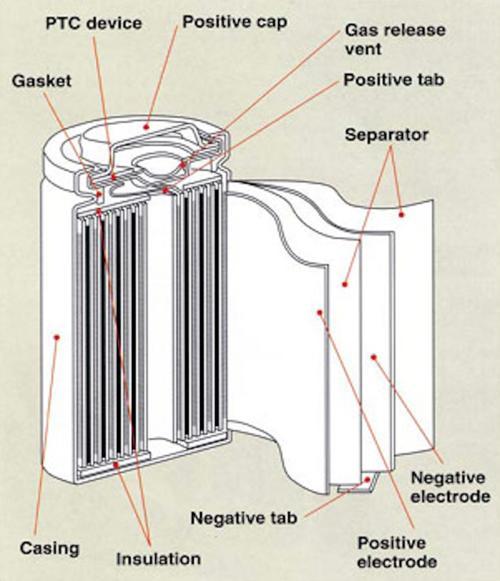

5. Cell Structure
6. Package and Shipping:
