Non Bendable Aluminum Window Spacer Upvc Window Spacers Hand Made Insulated Glass
Price:
Negotiable
MOQ:
1box
Delivery Time:
20-25 work days
Brand:
UNEX
Product Description

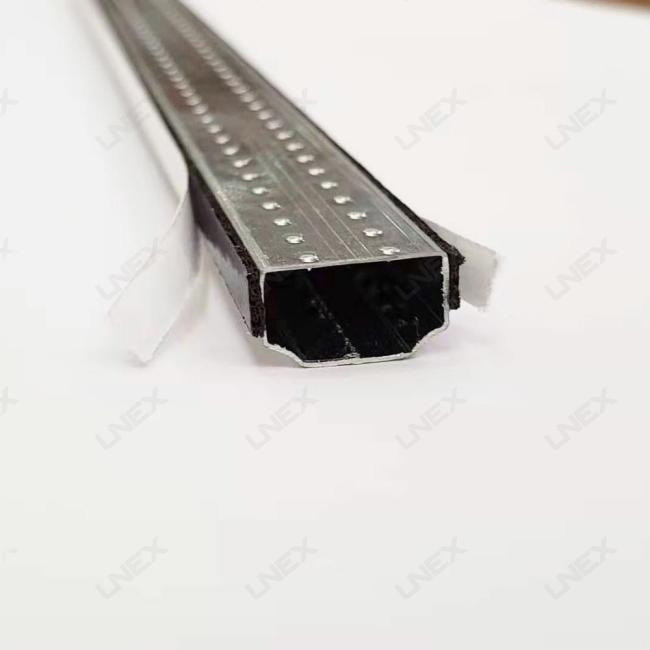

Factory Price Non-bendable Aluminum Spacers With Butyl Sealant for Hand Made Insulated Glass
DESRICPTION
Aluminum spacer with butyl sealant at both edge, it is more suitable for hand made insulate glass making. High frequency welding aluminum spacer with right angle connecting hollow glass production,the production of hollow glass four corners without connecting piece,sealing effect is good, not easy to leak.
TECHNICAL DATE SHEET
| ITEM | SPECIFICATIONS | NOTES | |||||||||
| ALLOY | 3003 | ||||||||||
| TEMPER | H26 | ||||||||||
| THICKNESS (T) | 0.20~0.35mm( Special requirements can be made) | ±0.005mm | |||||||||
| HEIGHT(H) | 6.5mm | ±0.1mm | |||||||||
| WIDTH(W) | 5.5mm ~26.5mm | ±0.1mm | |||||||||
| LENGTH | 5M/6M (others are available as customer requriments) | ±2mm | |||||||||
| WELDER | High Frequency Induction Welding | ||||||||||
| WELDING | BOTTOM | ||||||||||
| COLOR | SILVER | ||||||||||
| PACKING | Standard Carton Box | ||||||||||
| OTHERS | At equal intervals of 0.3m, customers' logo can be printed. | ||||||||||
COMPOSITION OF RAW MATERIALS
ALLOY 3003
| Si | Fe | Cu | Mn | Mg | Zn | Ti | Cr | Others | Al | ||
| 0.08 | 0.4~0.7 | 0.05~0.2 | 1.0~1.5 | ≤0.005 | ≤0.005 | 0.01~0.02 | － | 0.15 | the rest | ||
ALLOY 3003H26 MECHANICAL PROPERTIES
Rm = Breakage Point ≥ 170 Rp = Yield Load ≥ 140
A = Elongation Percent ≥ 10
