Polypropylene Membrane Filter Plate PP Filter Plate Of Filter Press
Manufacturers PP Filter Plate for Different Types of Filter Press
Specification
Filter Plate Instruction:

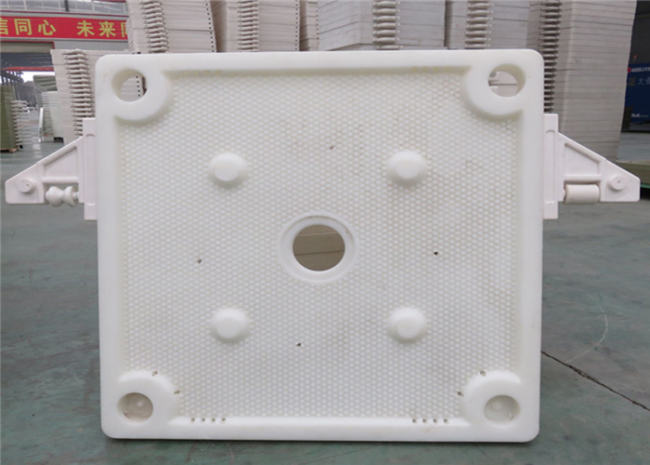

Filter Plate is the key part of filter press. It's used to support filter cloth and store the heavy filter cakes. Poor filter plate might cause following problems:
1. Bad filtering performance.
2. Easy to break to increase the running cost.
3. Might break the filter cloth.
4. Poor processes will cause leakage. ETC...
So the quality of filter plate is very important. Pls contact us for best quality filter press plate.
Types of Filter Press Plate:
1. According to fix method: side beam filter plate, top beam filter plate, vertical filter plate etc.
2. According to the plate type: plate & frame filter plate, chamber filter plate, membrane filter plate, special filter plate (say, round filter plate, cotton cake filter plate etc..).
3. According to material: PP filter plate, cast iron filter plate, stainless steel filter plate, aluminum alloy filter plate etc...
4. According plate size: 320/450/630/800/870/1000/1250/1500/2000 etc...
5. More info pls contact us...
Parameter of filter plate:
|
Chamber filter press plate
|
|||||
|
Outer size(mm)
|
Inner size(mm)
|
Plate thickness (mm)
|
Cake thickness (mm)
|
Filter area (m2)
|
Volume (L)
|
|
400*400
|
350*350
|
55
|
25
|
0.24
|
2.2
|
|
500*500
|
450*450
|
55
|
25
|
0.42
|
5.5
|
|
630*630
|
560*560
|
55
|
25
|
0.55
|
7.5
|
|
800*800
|
700*700
|
60
|
30
|
0.95
|
15.6
|
|
1000*1000
|
900*900
|
60
|
30
|
1.56
|
25.3
|
|
1250*1250
|
1160*1160
|
60
|
30
|
2.63
|
39.2
|
|
1500*1500
|
1400*1400
|
70
|
30
|
4
|
71
|
|
Membrane filter press plate
|
|||||
|
Outer size(mm)
|
Inner size(mm)
|
Plate thickness (mm)
|
Cake thickness (mm)
|
Filter area(m2)
|
Volume (L)
|
|
630*630
|
560*560
|
60
|
25
|
0.55
|
7.5
|
|
800*800
|
700*700
|
65
|
30
|
0.95
|
15.6
|
|
1000*1000
|
900*900
|
72
|
40
|
1.56
|
25.3
|
|
1250*1250
|
1150*1150
|
78
|
40
|
2.63
|
39.2
|
|
1500*1500
|
1400*1400
|
85
|
40
|
4
|
7
|
Various type Filter plates
The filter press plate is various according to different filter press design. Filter Press Plate Size:400mmX400mm,500mmX500mm,630mmX630mm,800mmX800mm,1000mmX1000mm,1200mmX1200mm,1250mmX1250mm,1500mmX1500mm,1500mmX2000mm,2000mmX2000mm
Q: How fast can I get the quotation?
A: We usually quote within 12 hours unless holiday in China, if you can urgent to get the price, you can call us so that we can regard your inquiry priority.
Q: Can I get the samples?
A: yes. The sample can be free of charge. But, the shipping expenses should be paid by the customer. The sample will be issued within 3 days. Custom samples take more time
Q: How long does the production take?
A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.
Q: Can the logo or company name to be printed on the products or package?
A: Sure.We are able to make your brand label and color box as your requirements. Please contact us to discuss details.
Q: What is your payment term?
A: Our normal payment is T/T 30% deposit, 70% balance should be paid before shipping
Q: How does your factory do regarding quality control.
A: Quality is priority. We will do 100% quality inspection before shipment.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q: How I know whether your product can be used in my area?
A: Our filter cloth, filter bag can be widely applied in cement, steel, asphalt and chemical industry, to reduce the emission of dust-content tail gas, thus help controlling the pollution of these industries to the atmosphere.
