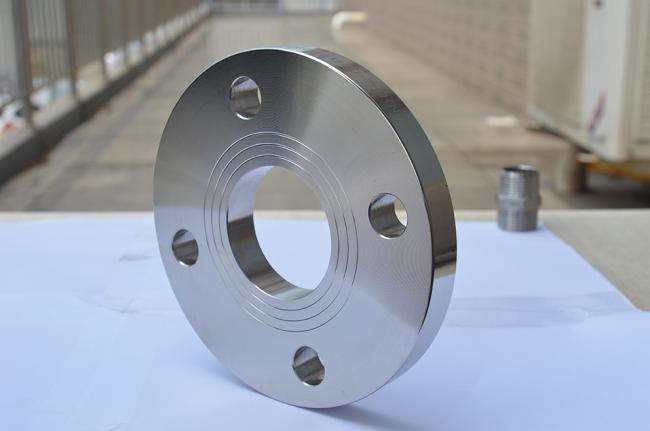

En1092-1 Flat Welding Flange Pn16 Dn100 Type01b
Product Description:
FLANGE DIN EN 1092-1 is a type of welding flange available in a wide range of sizes from DN15 to DN2000, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450. It meets different standards, such as ANSI, DIN, JIS, GOST, En1092, and is made of various materials, such as CS, RST37.2, S235JR, P245GH, P250GH, C22.8. This flange is available in two processing methods, including forged flange and cast flange. Moreover, it includes EN1092-1 PN16 TYPE02 LOOSE FLANGE, EN1092-1 PN16 TYPE01A FLAT FLANGE, and Flange_EN_1092-1_Standard. FLANGE DIN EN 1092-1 is a reliable and durable product, widely used in many different fields.
Features:
- Product Name: FLANGE DIN EN 1092-1
- Material: CS, RST37.2, S235JR, P245GH, P250GH, C22.8
- Standard: ANSI, DIN, JIS, GOST, En1092
- Type: Welding Flange
- Size: DN15-DN2000, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450
- Face Type: RF, FF, RTJ
- EN1092-1 PN16 TYPE02 LOOSE FLANGE
- EN1092-1 PN16 TYPE02 LOOSE FLANGE
- EN1092-1 PN16 TYPE01B FLAT FLANGE
Technical Parameters:
| Property | Details |
|---|---|
| Type | Welding Flange |
| Standard | ANSI, DIN, JIS, GOST, En1092 |
| Size | DN15-DN2000, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450 |
| Processing methods | Forged Flange, Cast Flange |
| Coating | Black Paint, Anti-rust Paint, Yellow Transparent |
| Face Type | RF, FF, RTJ |
| Material | CS, RST37.2, S235JR, P245GH, P250GH, C22.8 |
| Pressure | PN6-PN40, PN6, PN10, PN16, PN25, PN40, PN64, PN100,PN160 |
Applications:
The FLANGE DIN EN 1092-1 is a standard for welding flanges made by Carbon Steel. It is branded XF and certificated with PED, ISO CERTIFICATE. The Model Number is EN1092 TYPE01A. The minimum order quantity is 5TON and the price is negotiable. It will be well packed in standard export seaworthy package,or as required. The delivery time is 15-45 DAYS. The Payment Terms is L/C, D/A, D/P, T/T, and the Supply Ability is 1000-5000 TONS/MONTH. The Pressure is PN6-PN40, PN6, PN10, PN16, PN25, PN40, PN64, PN100,PN160. The Size is DN15-DN2000, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450. The Coating is Black Paint, Anti-rust Paint, Yellow Transparent. The Processing methods are Forged Flange and Cast Flange. Especially, it has EN1092-1 PN16 TYPE02 LOOSE FLANGE.
Packing and Shipping:
The packaging and shipping of FLANGE DIN EN 1092-1 products are done in accordance with the relevant standards set by the manufacturer. Generally, the product is packaged in wooden cases and will be shipped from the factory to the customer's designated warehouse or other places as per the customer's requirements.
