ASME B16.11 A105 Elbow 3000 Lbs Socket Welding Threaded Forged Steel Fitting

 Forged Steel Fitting ASME B16.11 Socket-welding and Threaded

These fittings are designated as Class 2000, 3000, and 6000 for threaded end fittings and Class 3000, 6000, and 9000 for socket-weld end fittings. B16.11 is to be used in conjunction with equipment described in other volumes of the ASME B16 series of standards as well as with other ASME standards, such as the Boiler and Pressure Vessel Code and the B31 Piping Codes.

Products:

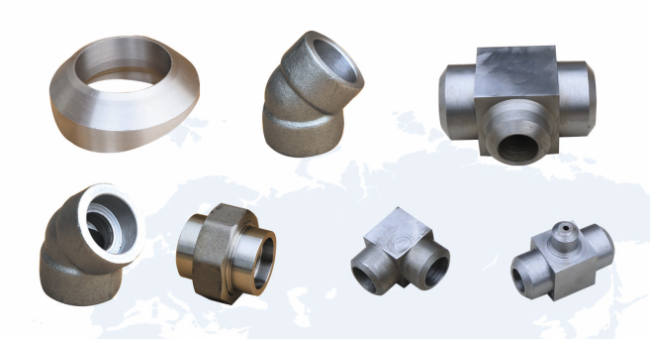

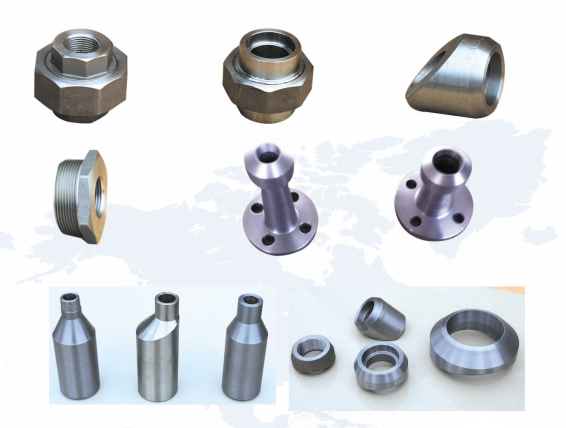

elbow 90deg/45deg;  straight elbow;  equal tee/ reducing tee/cross;  coupling / half coupling / reducing coupling;  union; nipple/hex nipple; socket; square head plug / hex head plug / round head plug;  bushing;  socketolet / weldolet / threadolet;

Size range: 1/8" to 4"

Pressure and joint type:

Threaded end 2000LB/3000LB/6000LB;

Socket welding end 3000LB/6000LB/9000LB;

Butt weld end SCH40/80/160/XXS

Material:

Carbon steel ASTM A105; A350 LF2

Stainless steel ASTM A182 F304/304L, F316/316L, F321

Packing:  carton box packed into seaworthy plywood case
