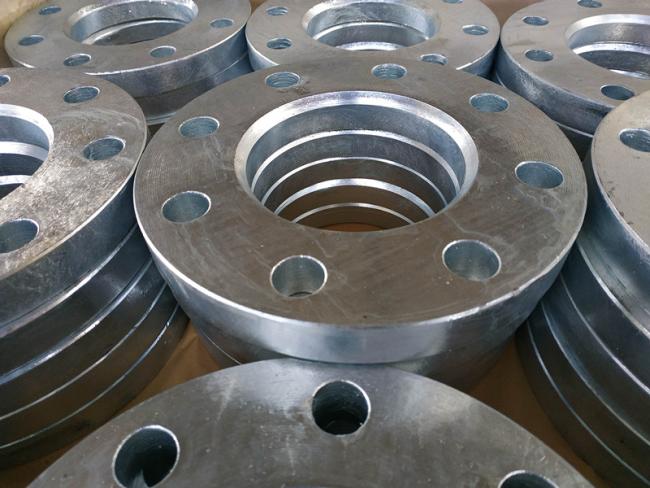

0.5 Inch To 80 Inch Galvanized Steel Flange Slip On Sorf Forged Flange
Price:
USD1580/TON TO USD2640/TON
MOQ:
2TONS
Delivery Time:
10-45DAYS
Brand:
XF
Product Description
GALVANIZED STEEL FLANGE ANSI B16.5 ASME B16.47 SLIP ON FLANGE SORF FORGED FLANGE
The Weld neck flange is designed to joint a piping system by butt welding. The hub, or neck, transfer the stresses to the pipe to reduce high stress concentrations. The bore of the weld neck flange matches the pipe bore.
Weld Neck flange is typically provided with a raised face(RF), flat face(FF), or ring type joint face(RTJ). When a raised face is necessary for weld neck flange, the standard height is 1/16" for blind flanges under 400#. For blind flange of 400# and up, the standard blind flange raised face height is 1/4".
Weld Neck Flange manufacturer Duwa Piping can supply weld neck flanges in all materials grades, specification and sizes. Duwa Piping have some stock and can delivery weld neck flange in 3 days.
Specifications:
Size: 1/2" to 96".
Flange Face: Raised Face(RF), Flat Face(FF), Ring Type Joint(RTJ), T&G.
Flange Pressure: 150#--6000#(PN6-PN40).
Schedule: SCH40/XS, STD.
Material:
Carbon Steel: ASTM A105.
Low-Temperature: ASTM A350 LF1 LF2 CL1/CL2, LF3 CL1/CL2.
Stainless Steel: ASTM A182 F304/304L, F316/316L, F321.
Weld Neck flange is typically provided with a raised face(RF), flat face(FF), or ring type joint face(RTJ). When a raised face is necessary for weld neck flange, the standard height is 1/16" for blind flanges under 400#. For blind flange of 400# and up, the standard blind flange raised face height is 1/4".
Weld Neck Flange manufacturer Duwa Piping can supply weld neck flanges in all materials grades, specification and sizes. Duwa Piping have some stock and can delivery weld neck flange in 3 days.
Specifications:
Size: 1/2" to 96".
Flange Face: Raised Face(RF), Flat Face(FF), Ring Type Joint(RTJ), T&G.
Flange Pressure: 150#--6000#(PN6-PN40).
Schedule: SCH40/XS, STD.
Material:
Carbon Steel: ASTM A105.
Low-Temperature: ASTM A350 LF1 LF2 CL1/CL2, LF3 CL1/CL2.
Stainless Steel: ASTM A182 F304/304L, F316/316L, F321.
| SIZE | MATERIAL | FLANGE TYPE |
| 1/2"-80" | Stainless Steel | weld neck flange |
| Slip on Flange | ||
| socket weld flange | ||
| LAP Joint Flange | ||
| Threaded flange | ||
| blind flange | ||
| CARBON STEEL, STAINLESS STEEL | weld neck flange | |
| Slip on Flange | ||
| socket weld flange | ||
| LAP Joint Flange | ||
| Threaded flange | ||
| blind flange | ||
| Sealing face of flanges | RF with serrated finish | |
| FF with 3 waterlines | ||
| FF with smooth finis | ||
| RTJ (Ring Joint Type) | ||
| FF with serrated finish | ||
| RF with water lines |
Type: Welding Neck Flange.
Material: ASTM A182 F316.
Class: PN 20.
Size: DN 150.
Standard: ASME B16.5.
| ø | D | b | g | m | a | J* | h | k | Holes | l | Kg. |
| 1/2" | 88,9 | 11,1 | 34,9 | 30,2 | 21,3 | 15,7 | 47,6 | 60,3 | 4 | 15,9 | 0,500 |
| 3/4" | 98,4 | 12,7 | 42,9 | 38,1 | 26,7 | 20,8 | 52,4 | 69,8 | 4 | 15,9 | 0,700 |
| 1" | 107,9 | 14,3 | 50,8 | 49,2 | 33,5 | 26,7 | 55,6 | 79,4 | 4 | 15,9 | 1,100 |
| 1 1/4" | 117,5 | 15,9 | 63,5 | 58,8 | 42,2 | 35,1 | 57,1 | 88,9 | 4 | 15,9 | 1,500 |
| 1 1/2" | 127,0 | 17,5 | 73,0 | 65,1 | 48,3 | 40,9 | 61,9 | 98,4 | 4 | 15,9 | 1,800 |
| 2" | 152,4 | 19,0 | 92,1 | 77,8 | 60,3 | 52,6 | 63,5 | 120,6 | 4 | 19,0 | 2,700 |
| 2 1/2" | 177,8 | 22,2 | 104,8 | 90,5 | 73,1 | 62,7 | 69,8 | 139,7 | 4 | 19,0 | 4,400 |
| 3" | 190,5 | 23,8 | 127,0 | 107,9 | 88,9 | 78,0 | 69,8 | 152,4 | 4 | 19,0 | 5,200 |
| 3 1/2" | 215,9 | 23,8 | 139,7 | 122,2 | 101,6 | 90,2 | 71,4 | 177,8 | 8 | 19,0 | 6,400 |
| 4" | 228,6 | 23,8 | 157,2 | 134,9 | 114,3 | 102,4 | 76,2 | 190,5 | 8 | 19,0 | 7,500 |
| 5" | 254,0 | 23,8 | 185,7 | 163,5 | 141,2 | 128,3 | 88,9 | 215,9 | 8 | 22,2 | 9,200 |
| 6" | 279,4 | 25,4 | 215,9 | 192,1 | 168,4 | 154,2 | 88,9 | 241,3 | 8 | 22,2 | 11,000 |
| 8" | 342,9 | 28,6 | 269,9 | 246,1 | 219,1 | 202,7 | 101,6 | 298,4 | 8 | 22,2 | 18,300 |
| 10" | 406,4 | 30,2 | 323,8 | 304,8 | 273,0 | 254,5 | 101,6 | 361,9 | 12 | 25,4 | 25,000 |
| 12" | 482,6 | 31,7 | 381,0 | 365,1 | 323,8 | 304,8 | 114,3 | 431,8 | 12 | 25,4 | 39,000 |
| 14" | 533,4 | 34,9 | 412,7 | 400,0 | 355,6 | 336,5 | 127,0 | 476,2 | 12 | 28,6 | 51,000 |
| 16" | 596,9 | 36,5 | 469,9 | 457,2 | 406,4 | 387,3 | 127,0 | 539,7 | 16 | 28,6 | 60,000 |
| 18" | 635,0 | 39,7 | 533,4 | 504,8 | 457,2 | 438,1 | 139,7 | 577,8 | 16 | 31,7 | 71,000 |
| 20" | 698,5 | 42,9 | 584,2 | 558,8 | 508,0 | 488,9 | 144,5 | 635,0 | 20 | 31,7 | 88,000 |
| 22" | 749,3 | 46,0 | 641,2 | 609,6 | 558,8 | 539,7 | 149,2 | 692,1 | 20 | 34,9 | 102,000 |
| 24" | 812,8 | 47,6 | 692,1 | 663,6 | 609,6 | 590,5 | 152,4 | 749,3 | 20 | 34,9 | 119,000 |
Keywords: 1/2", CS A105, GAL, FLANGE, RF, 150 LB, SCRD.

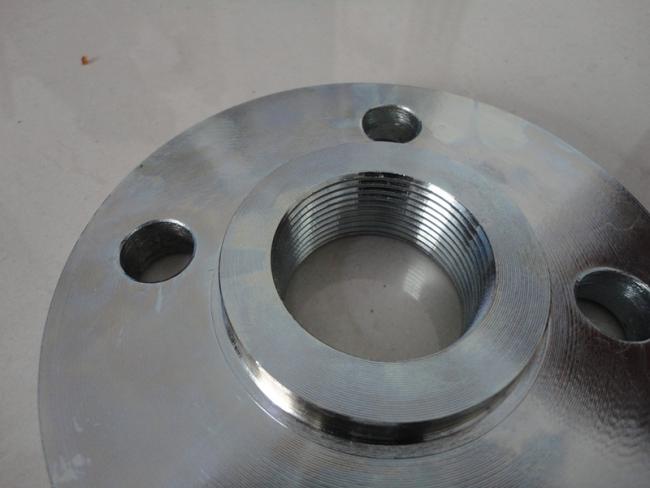

Name: Carbon Steel Threaded Flange.
Material: ASTM A105.
Size: 1/2 Inch (DN15).
Pressure: 150 LB (PN20).
Ends: RF.
Surface Treatment: Galvanized.
![Carbon Steel Threaded Flange, 150 LB, 1/2IN, RF]( "Carbon Steel Threaded Flange, 150 LB, 1/2IN, RF")
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diam. of Bolt Circle |
Diam. of Bolt Holes |
Number of Bolts |
Diam. of Bolts (inch) |
KG | LB | |
| inch | dn | O | C | X | G | Y | T | BC | BH | BN | BD | ||
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
| 4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
| 5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
| 16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
