GOST STANDARD FLANGE (GOST 12820/GOST 12821/GOST 33259) – MANUFACTURERS & STOCKISTS
GOST Standard Flanges
Check GOST Flanges Dimensions, GOST 12821 80 flange Manufacturer
GOST Standard Flanges abide by the standard called GOST. It is a Russian standard that adapts to the standards of European, Asian standards and many other national standards. Dinesh Industries is a producer of different flanges in different material grades that come with the GOST standard. The Gost Standard Flange Dimensions vary with specification and other standards. There are small to medium scale diameter flanges that operate in different applications. The Gost 12821 Flange is a stainless steel flange that can range between the DIN15 to DIN1600. There are different types of the flanges as well. The GOST 12821 80 flange is used in oil fields, offshore oil industries, natural gas industries and in water systems.
View GOST 12821 Stainless Steel Flanges Pressure Chart & GOST 12821-80 Flanges Weight

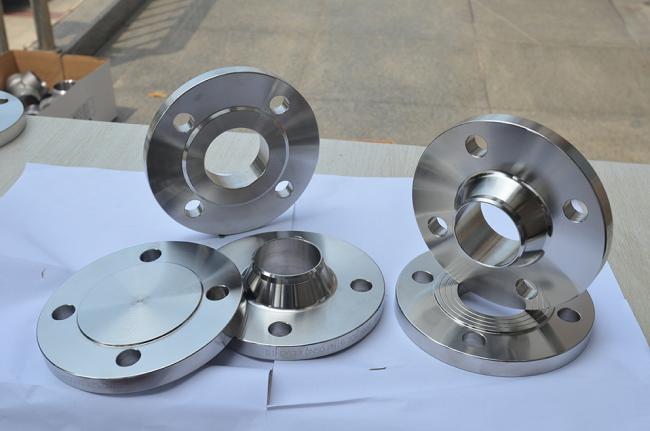

The electric power plants and shipbuilding industries use this standard of flanges as well. There are different types such as the weld neck, slip on, butt weld and blind flanges. The Ghost Blind Flange is used to terminate a pipe line either temporarily or permanently. The Ghost Weld Neck Flange is used to have more welding surface and strength over connection. The Ghost Plate Flange is used to add more connection surface to blunt pipe ends and the Ghost Slip On Flange is useful when connecting seamless pipes together. You can get any types of flanges from us and please feel free to contact us with your inquiry.
Table of Content
Specification List of GOST Standard Flanges
| Producty Type | GOST Flanges |
|---|---|
| Size | ½” to 48″ |
| Pressure Class Ratings | Class 1500, Class 150, Class 400, Class 900, Class 300, Class 2500, Class 600 | PN16, PN40, PN6, PN10, PN64, PN25 |
| Specialize | As per drawing |
| Standard | ANSI B16.47, MSS SP44, ANSI B16.5, ANSI B16.36, ANSI B16.48 ,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820DIN : DIN2527, DIN2633, DIN2636, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2637, DIN2638, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2634, DIN2635, DIN2632, DIN2673B.S : BS1560, BS4504, BS4504 , BS10 |
| Connection Type / Flange Face Type | Flat Face, Large Male-Female, Ring Type Joint, Lap-Joint Face, Large Tongue & Groove, Raised Face, Small Male-Female, Small Tongue & Groove |
GOST Standard Flanges are Available in Class 150 to Class 2500, in Dimensions like ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, AWWA

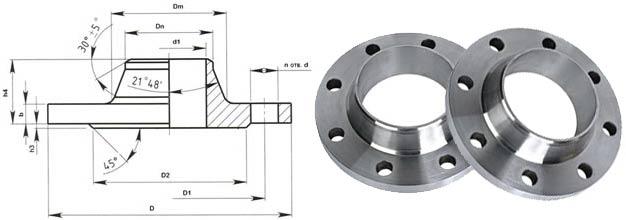

Dimensions Format of GOST 12821-80 Flanges
| Проход условный Dy | d1 | b | h4 | Dm | Dn | Масса, кг | ||||
| с соединительным выступом | с выступом | с впадиной | с шипом | с пазом | ||||||
| 10 | 8 | 10 | 27 | 22 | 15 | 0,34 | 0,34 | 0,32 | 0,34 | 0,33 |
| 15 | 12 | 28 | 28 | 19 | 0,40 | 0,40 | 0,38 | 0,40 | 0,40 | |
| 20 | 18 | 30 | 36 | 26 | 0,53 | 0,53 | 0,50 | 0,53 | 0,52 | |
| 25 | 25 | 12 | 42 | 33 | 0,76 | 0,77 | 0,72 | 0,75 | 0,75 | |
| 32 | 31 | 33 | 50 | 39 | 1,10 | 1,08 | 1,04 | 1,08 | 1,08 | |
| 40 | 38 | 35 | 60 | 46 | 1,36 | 1,37 | 1,28 | 1,30 | 1,34 | |
| 50 | 49 | 70 | 58 | 1,53 | 1,51 | 1,44 | 1,46 | 1,47 | ||
| 65 | 66 | 88 | 77 | 1,97 | 2,06 | 1,83 | 1,72 | 1,75 | ||
| 80 | 78 | 13 | 37 | 102 | 90 | 2,76 | 2,76 | 2,80 | 2,65 | 2,72 |
| 100 | 96 | 38 | 122 | 110 | 3,35 | 3,04 | 3,03 | 3,03 | 3,04 | |
| 125 | 121 | 15 | 40 | 148 | 135 | 4,66 | 4,24 | 3,66 | 4,50 | 4,55 |
| 150 | 146 | 43 | 172 | 161 | 5,37 | 5,85 | 4,93 | 5,29 | 5,35 | |
| (175) | 177 | 17 | 47 | 210 | 196 | 7,32 | 8,10 | 6,92 | 7,11 | 7,16 |
| 200 | 202 | 50 | 235 | 222 | 8,37 | 9,35 | 7,75 | 7,98 | 8,05 | |
| (225) | 226 | 260 | 248 | 9,45 | 9,25 | 8,72 | 8,98 | 9,06 | ||
| 250 | 254 | 18 | 288 | 278 | 10,99 | 10,69 | 10,14 | 12,20 | 12,30 | |
| 300 | 303 | 340 | 330 | 14,82 | 14,28 | 14,10 | 13,81 | 14,11 | ||
| 350 | 351 | 390 | 382 | 17,69 | 18,65 | 17,64 | 16,35 | 16,72 | ||
| 400 | 398 | 440 | 432 | 20,55 | 19,69 | 19,30 | 18,83 | 19,31 | ||
| (450) | 450 | 494 | 484 | 23,63 | 23,60 | 21,90 | 21,62 | 22,24 | ||
| 500 | 501 | 19 | 545 | 535 | 26,63 | 29,10 | 25,90 | 24,44 | 25,10 | |
| 600 | 602 | 55 | 650 | 636 | 35,79 | 35,60 | 33,40 | 37,49 | 33,67 | |
| (700) | 692 | 740 | 726 | 44,31 | 44,10 | 41,10 | 40,60 | 41,86 | ||
| 800 | 792 | 60 | 844 | 826 | 56,17 | 55,20 | 52,20 | 51,67 | 53,36 | |
| (900) | 892 | 21 | 944 | 926 | 66,79 | – | – | – | – | |
| 1000 | 992 | 1044 | 1028 | 73,51 | ||||||
| 1200 | 1192 | 23 | 70 | 1248 | 1228 | 111,43 | ||||
| 1400 | 1392 | 27 | 85 | 1456 | 1428 | 156,58 | ||||
| 1600 | 1592 | 32 | 95 | 1660 | 1628 | 218,57 | ||||
Weight Chart of GOST 12820 Flanges
|
Standard
|
Class
|
Diameter
|
Bolt Circle Diameter
|
Number of Bolts
|
Bolt Size
|
Diameter of Bolt Hole
|
|---|---|---|---|---|---|---|
|
AS4087 Flanges
|
PN14
|
95
|
67
|
4
|
M12
|
14
|
|
AS 2129 Flange
|
Table C
|
95
|
67
|
4
|
13
|
14
|
|
Table D
|
95
|
67
|
4
|
13
|
14
|
|
|
Table E
|
95
|
67
|
4
|
13
|
14
|
|
|
Table F
|
95
|
67
|
4
|
13
|
14
|
|
|
Table H
|
114
|
83
|
4
|
16
|
17
|
|
|
Table J
|
114
|
83
|
4
|
16
|
17
|
|
|
ANSI B16.5 Flanges
|
ANSI 150
|
89
|
60
|
4
|
13
|
16
|
|
ANSI 300
|
95
|
67
|
4
|
13
|
16
|
|
|
ANSI 600
|
95
|
67
|
4
|
13
|
16
|
|
|
ANSI 900
|
121
|
83
|
4
|
19
|
22
|
|
|
ANSI 1500
|
121
|
83
|
4
|
19
|
22
|
|
|
ISO 7005 (DIN) Flange
|
PN6
|
80
|
55
|
4
|
M10
|
11
|
|
PN10
|
95
|
65
|
4
|
M12
|
14
|
|
|
PN16
|
95
|
65
|
4
|
M12
|
14
|
|
|
PN20
|
90
|
60.5
|
4
|
M14
|
16
|
|
|
PN25
|
95
|
65
|
4
|
M12
|
14
|
|
|
PN40
|
95
|
65
|
4
|
M12
|
14
|
