ISO PED ASME B16.9 CON ECC Steel Pipe Reducer SCH40 A234 WPB Black Paint

Name: ISO PED ASME B16.9 CON ECC Steel Pipe Reducer SCH40 A234 WPB Black Paint
Brand: Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd.

Price Negotiable

Price: 1USD-100USD

MOQ: 1PCS

Delivery Time: 15-30DAYS

Brand: XF

Product Description

ASME B16.9 CON REDUCER ECC REDUCER SCH40 A234 WPB WITH BLACK PAINT

Material :A234 WPB SS304/304L SS316/316L

Size:1/2"-48"

Thickness:SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH80, SCH120, SCH160

Coating:Black paint , Oil , Cold Galvanized and Hot Galvanized

Package:Plywood Cases And Pallets

Detailed Product Description

Product Name:	ELBOW, REDUCER,TEE,CAP	Standard:	ANSI B16.9,EN10253,DIN
Material:	A234 WPB/P245GH/S235JRG2/ST37-2	Type:	Seamless Fitting, Welded Fitting
Color:	Black, Rust Proof Oil	Steel:	Carbon Steel, Stainless Steel
Location:	Hebei	Payment:	30% Advance Payment,70% Against BL Copy
Certificate:	ISO,PED	Usage:	Pipe Connection

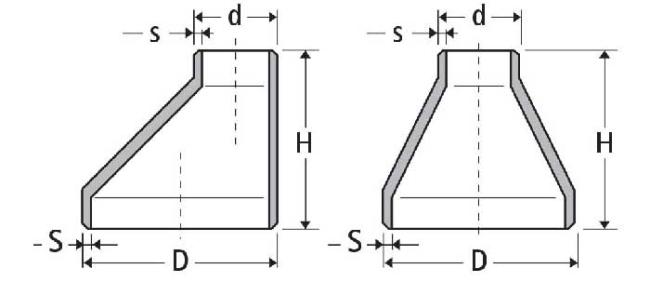

ANSI /ASME B16.9 Reducers Dimensions, Buttweld Concentric Reducer Dimensions Chart, Eccentric Buttweld Reducers Dimensions:

Eccnetric Reducer Dimensions ANSI B16.9

Code RCD REISO	Ø BIG			Ø SMALL			HEIGHT H mm	THEORETICAL WEIGHT KG
Code RCD REISO	DN	D mm	Thickness S mm	DN	d mm	Thickness s mm	HEIGHT H mm	THEORETICAL WEIGHT KG
27 21	3/4	26.9	2.3	1/2	21.3	2.0	38	0.08
33 21	1	33.7	2.6	1/2	21.3	2.0	50	0.09
33 27	1	33.7	2.6	3/4	26.9	2.3	50	0.09
42 21	1″1/4	42.4	2.6	1/2	21.3	2.0	50	0.12
42 27				3/4	26.9	2.3		0.13
42 33				1	33.7	2.6		0.14
*48 21	1″1/2	48.3	2.6	1/2	21.3	2.0	64	0.18
48 27				3/4	26.9	2.3		0.19
48 33				1	33.7	2.6		0.20
48 42				1″1/4	42.4	2.6		0.20
60 27	2	60.3	2.9	3/4	26.9	2.3	76	0.30
60 33				1	33.7	2.6		0.31
60 42				1″1/4	42.4	2.6		0.32
60 48				1″1/2	48.3	2.6		0.33
76 33	2″1/2	76.1	2.9	1	33.7	2.6	90	0.40
76 42				1″1/4	42.4	2.6		0.47
76 48				1″1/2	48.3	2.6		0.48
76 60				2	60.3	2.6		0.49
89 42	3	88.9	3.2	1″1/4	42.4	2.6	90	0.55
89 48				1″1/2	48.3	2.6		0.61
89 60				2	60.3	2.9		0.62
89 76				2″1/2	76.1	2.9		0.63
114 48	4	114.3	3.6	1″1/2	48.3	2.6	100	0.85
114 60				2	60.3	2.9		0.98
114 76				2″1/2	76.1	2.9		1.00
114 89				3	88.9	3.2		1.02
139 60	5	139.7	4.0	2	60.3	2.9	127	1.60
139 76				2″1/2	76.1	2.9		1.70
139 89				3	88.9	3.2		1.74
139 114				4	114.3	3.6		1.76
*168 76	6	168.3	4.5	2″1/2	76.1	2.9	140	2.60
168 89				3	88.9	3.2		2.70
168 114				4	114.3	3.6		2.82
168 139				5	139.7	4.0		2.94
219 114	8	219.1	6.3	4	114.3	3.6	152	5.03
219 139				5	139.7	4.0		5.12
219 168				6	168.3	4.5		5.18
*273 114	10	273.0	6.3	4	114.3	3.6	178	7.00
*273 139				5	139.7	4.0		7.20
273 168				6	168.3	4.5		7.40
273 219				8	219.1	6.3		7.55
323 168	12	323.9	7.1	6	168.3	4.5	203	11.00
323 219				8	219.1	6.3		11.10
323 273				10	273	6.3		11.20

N.B. code RCD = concentric reducers – code REISO = excentric reducers

* Only concentric

ANSI / ASME B16.9 REDUCER – Dimensional Tolerances of Concnentric Reducer and Eccentric Pipe Reducers

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8
Outside Diameter at Bevel (D)	+ 1.6 – 0.8	1.6	1.6	+ 2.4 – 1.6
Inside Diameter at End	0.8	1.6	1.6	1.6
Overall Length (H)	2	2	2	2
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameter at Bevel (D)	+ 4 – 3.2	+ 6.4 – 4.8	+ 6.4 – 4.8	+ 6.4 – 4.8
Inside Diameter at End	3.2	4.8	+ 6.4 – 4.8	+ 6.4 – 4.8
Overall Length (H)	2	2	5	5
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness
