DIN EN1092-1 FORGED FLANGE WEDLING NECK SLIP ON BLIND FLAT THREADED LOOSE FLANGE
DIN / EN1092-1 FORGED FLANGE PN6 , PN10 , PN16,PN25,PN40,PN63
WEDLING NECK ,SLIP ON , BLIND,FLAT,THREADED ,LOOSE FLANGE
1. EN1092-1 FLANGE
Size range: DN15 to DN2000
Design: Type01, Type02 , Type04 , Type05 , Type11, Type12 , Type 13,
Type21,Type 32 ,Type33 and Type 34
Pressure: PN6, PN10, PN16, PN25, PN40, PN63, PN100
Material: Carbon steel C22.8,S235JR, P235GH, P245GH,P250GH,P265GH,P280GH.
Stainless steel: SS304/304L, SS316/316L,SS321

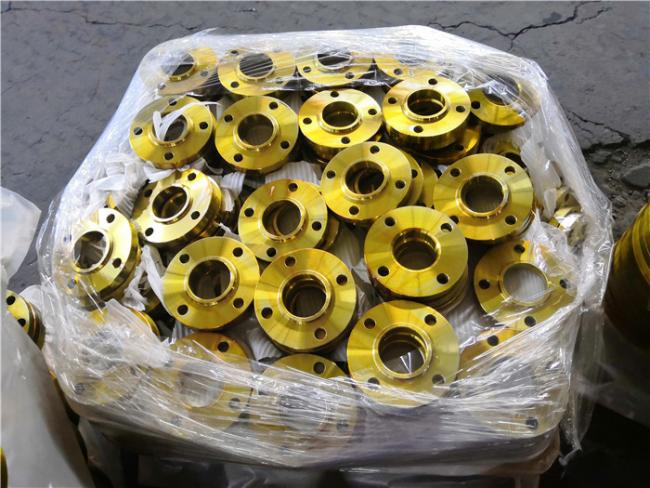

Coating: black paint, yellow paint, anti-rust oil,cold and hot dip galvanized,epoxy coated
Surface :Flat face (TYPEA), Raised face(TYPE B1 and B2) , Tongue (TYPE C) ,
Groove a continuous line above the grrove(TYPE D),
Spigot(TYPE E) Recess(TYPE F) O-ring spigot(TYPE G) O-ring groove(TYPE H)

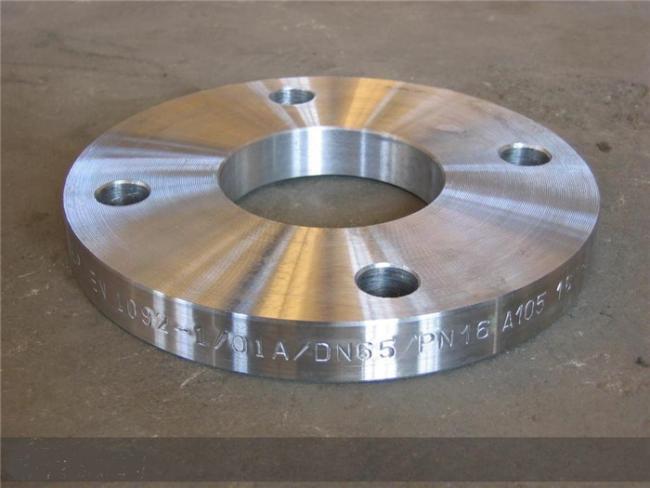

| Typ 01: Plate (slip-on) flange for welding | Typ 13: Hubbed threaded flange |
| Typ 02: Loose plate flange with weld-on plate collar | Typ 21: Integral flange |
| Typ 04: Loose plate flange with weld-neck collar | Typ 32: Weld-on plate collars |
| Typ 05: Blank (blind) flange | Typ 33: Lapped pipe ends |
| Typ 11: Weld-neck flange | Typ 34: Weld-neck collars |
| Typ 12: Hubbed slip-on flange for welding |
2. DIN FLANGE
Size range: DN15 to DN3000
Design:

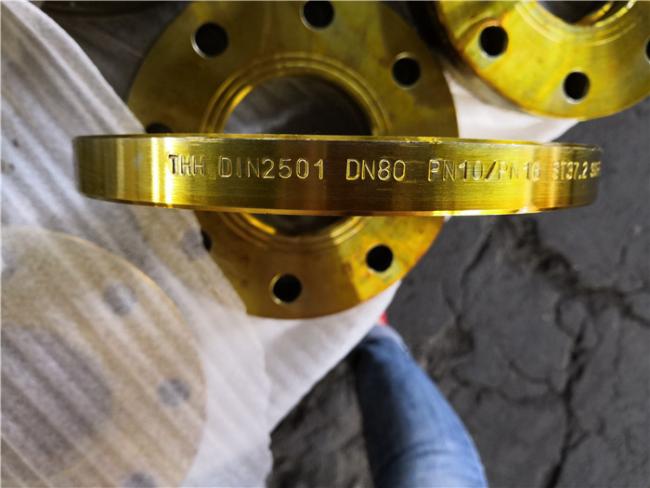

slip on flange(flat flange): DIN2573,2576,2502,2503, 2543,2545
welding neck falnge :DIN2631,2632,2633,2634,2635,2636,2637
blind flange :DIN 2527 PN6, PN10, PN16, PN25, PN40
threaded falnge: DIN2565,2566,2567,2568,2569
loose flange: DIN 2641,2642,2655,2656
hubbed slip on flange:DIN86029,86030
Material: Carbon steel ST37.2,S235JR,C22.8.
Stainless steel SS304/304L, SS316/316L,SS321

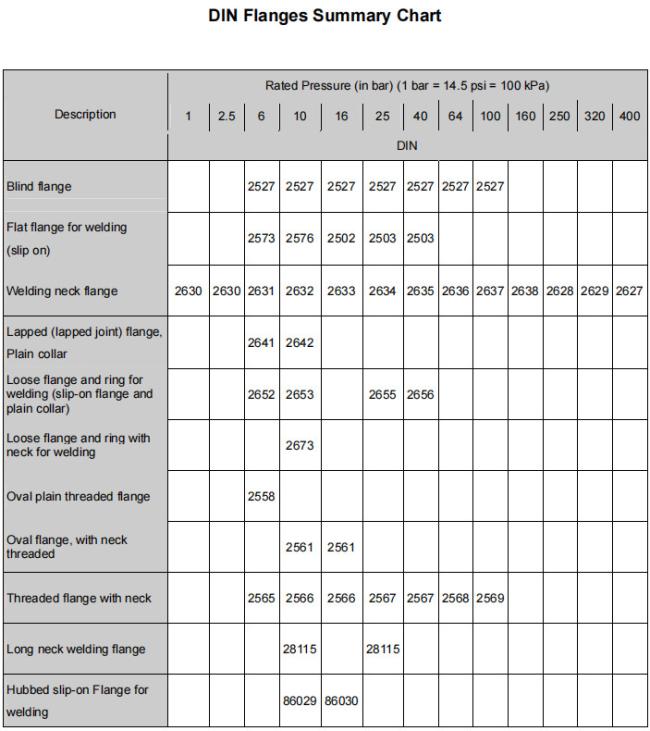

DIN / EN1092-1 FLANGE DETAIL:

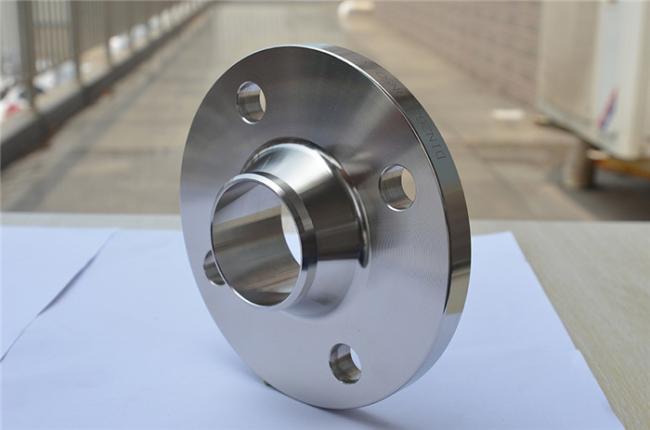

| FLANGES DIN / EN | |||
| Type | Norm | Nominal Pressure | Dimension |
| Welding Neck Flange | EN1092-1 Typ11 | PN6-PN100 | DN10-DN2000 |
| DIN 2631 - DIN 2637 | |||
| Blind Flanges | EN1092-1 Typ05 | PN6-PN100 | DN10-DN2000 |
| DIN 2527 | PN6-PN40 | ||
| Flat Flanges for welding | DIN 2573/DIN2576/DIN2502/DIN2503/ DIN2543/DIN2544/DIN2545 |
PN6-PN100 | DN10-DN2000 |
| EN1092-1 Typ01 | PN6-PN40 | DN10-DN3000 | |
| Loose Flange + Weld-on Collars |
DIN2641/DIN2642/DIN2655/DIN2656 | PN6-40 | DN10-DN800 |
| EN1092-1 Typ02 | DN10-DN2000 | ||
| EN1092-1 Typ32 | |||
| Loose Flange + Weld Neck Collars |
DIN 2673 | PN10 | DN10-DN1200 |
| EN1092-1 Typ04 | PN6-PN40 | DN10-DN2000 | |
| EN1092-1 Typ34 | |||
| Threaded Flanges | EN1092-1 Typ13 | PN6-PN100 | DN10-DN600 |
| DIN2565,2566,2567,2568,2569 | DN10-DN150 | ||
| Slip On Flange | EN1092-1 Typ12 | PN6-PN100 | DN10-DN600 |
| DIN86029/DIN86030 | PN10-PN16 | DN10-DN1000 | |
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
