45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded
45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST SEAMLESS AND WELDED
ASME B16.9, DIN2605,EN10253,JIS B2311,GOST17375
The elbow is bent with a complete set of bending equipment, which is divided into two processes: cold simmering and hot pushing.No matter what kind of machine equipment and pipeline, most of the use of elbow, mainly used for oil, gas, infusion, engineering bridge construction.Our pipe caps are made of carbon steel,stainless steel and alloy steel,etc.They feature high strength,good toughness,and high resistance to corrosion,and vibration.
| FITTINGS Steel Pipe Elbow | |
| Technique | Hot-pushing, welding |
| Standard | ASME B16.9, ASME B16.28, GOST 17375-2001, GOST 30753-2001, EN 10253,DIN2605,JIS B2311 |
| Size | DN 15-DN 2400, 1/2" - 96" |
| Thickness | SCH 20, STD, SCH 40, SCH60, XS, SCH 80, SCH 160, XXS |
| 2MM-32MM | |
| 1.6MM-customized | |
| Pipe Elbow Ends | Beveling |
| Type | LR pipe elnow |
| SR pipe elbow | |
| 45 degree pipe elbow | |
| 90 degree pipe elbow | |
| 60 degree pipe elbow | |
| 180 degree pipe elbow | |
| customized degree pipe elbow | |
| Surface Treatment | Black Painting, Transparent Anti-rust Oil, Sand Blast |
| PE/3PE anti-corrosion coating, other customized coating | |
| Material | A234-WPB, steel 20#, P235GH,A420-WPL6, WP304L, WP316L, WP304, WP316, etc.. |
| Material in Stock | Carbon steel, Mild steel, LTCS, Alloy Steel |
| Package | Plastic bags, pallets, plywood case, etc |
| Production Time | 3-5 days for stock goods, 15-30 days for one container, |
| more 10 days for one more container. | |
| Application | Petroleum, Natrual Gas, Water Disposal, Shipbuilding, Nuclear Energy,Chemical Engineering, Deckle, Electric Power |
Specification of Butt Welded Elbow:
| Specification | Type | Data |
| Size | 90 degree Long/Short Radius 45 degree Long Radius |
Seamless 1/2”-20”(DN15-DN500) Welded 1/2”-48” (DN15-DN1200) |
| 180 degree Return Band | Seamless 1/2”-4”(DN15-DN100) | |
| Wall Thickness | 90 degree Long/Short Radius 45 degree Long Radius |
SCH5S-SCH160 |
| 180 degree Return Band | SCH5S-SCH80S |
• Process of manufacturing

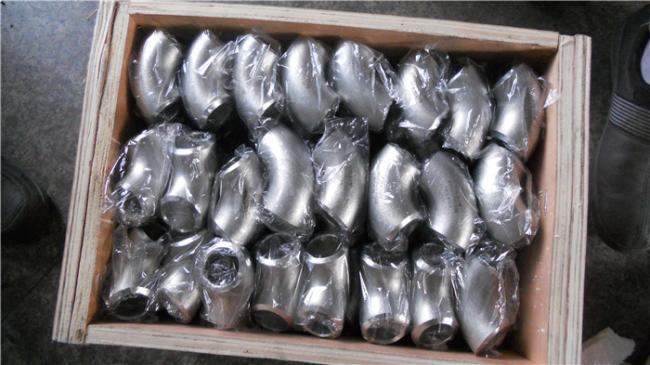

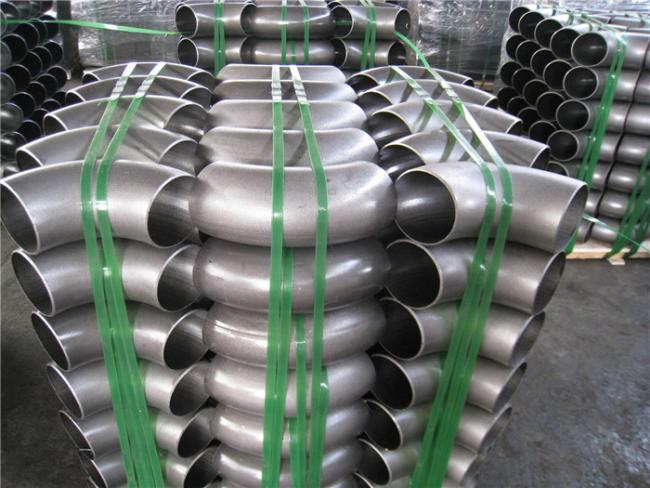

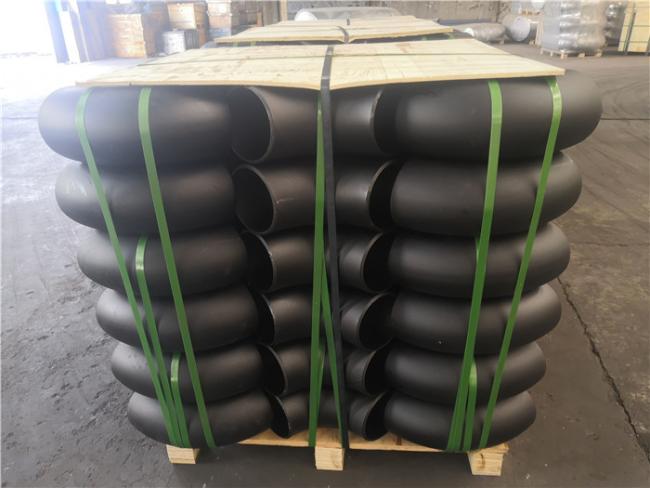

• PACKAGE
Wooden case or wooden pallets or as customer's request....
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
