China Forged Ped Pn63 Carbon Steel Blind Flange 0.5 Inch for sale

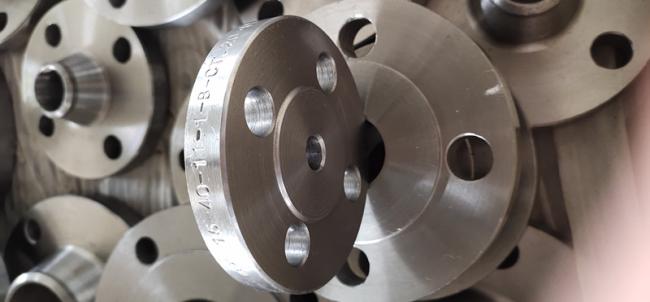

Forged Ped Pn63 Carbon Steel Blind Flange 0.5 Inch

Name: Forged Ped Pn63 Carbon Steel Blind Flange 0.5 Inch
Brand: Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd.

Price Negotiable

Price: USD1580/TON TO USD2640/TON

MOQ: 2TONS

Delivery Time: 10-45DAYS

Brand: XF

Product Description

STEEL FLANGE GOST 33259 TYPE01 PLATE FLANGE GOST 33259 TYPE11 WN FLANGE CARBON STEEL FLANGE STAINLESS STEEL FLANGE

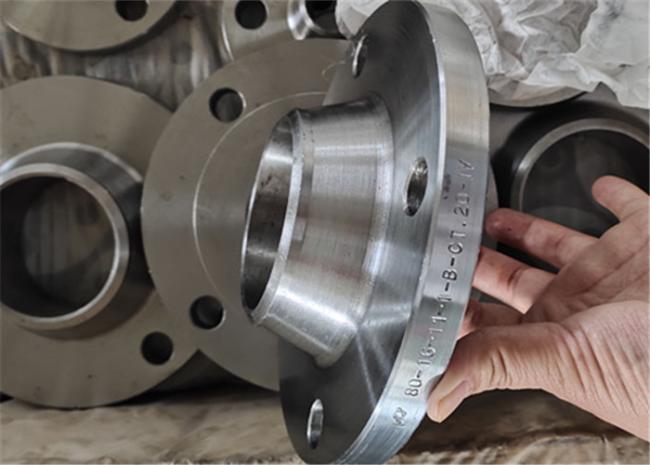

The GOST33259 TYPE11 Weld neck flange is designed to joint a piping system by butt welding. The hub, or neck, transfer the stresses to the pipe to reduce high stress concentrations. The bore of the weld neck flange matches the pipe bore.
Weld Neck flange is typically provided with a raised face(RF), flat face(FF), or ring type joint face(RTJ). When a raised face is necessary for weld neck flange, the standard height is 1/16" for blind flanges under PN40. For blind flange of 400# and up, the standard blind flange raised face height is 1/4".
We HEBEI XINFENG STEEL FLANGE FITTING can supply weld neck flanges in all materials grades, specification and sizes. HEBEI XINFENG STEEL FLANGE FITTING have some stock and can delivery weld neck flange in 3 days.
Specifications:
Size: 1/2" to 96".
Flange Face: Raised Face(RF), Flat Face(FF), Ring Type Joint(RTJ), T&G.
Flange Pressure: PN6-PN63.
Material:
Carbon Steel: CT20 16MN
Low-Temperature: ASTM A350 LF1 LF2 CL1/CL2, LF3 CL1/CL2.
Stainless Steel: ASTM A182 F304/304L, F316/316L, F321.

SIZE	MATERIAL	FLANGE TYPE
1/2"-80"	Stainless Steel	weld neck flange
		Slip on Flange
		socket weld flange
		LAP Joint Flange
		Threaded flange
		blind flange
	CARBON STEEL, STAINLESS STEEL	weld neck flange
		Slip on Flange
		socket weld flange
		LAP Joint Flange
		Threaded flange
		blind flange
	Sealing face of flanges	RF with serrated finish
		FF with 3 waterlines
		FF with smooth finis
		RTJ (Ring Joint Type)
		FF with serrated finish
		RF with water lines

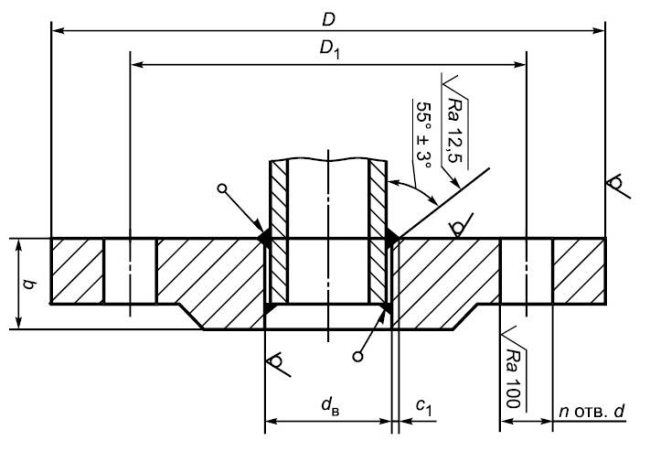

PN	DN	D	dB	b	Dia of RF	thickness of RF	D1	d	n	C1*45°
PN6	10	75	15	12	35	2	50	11	4	2
	15	80	19	12	40	2	55	11	4	2
	20	90	26	14	50	2	65	11	4	2
	25	100	33	14	60	2	75	11	4	3
	32	120	39	15	70	2	90	14	4	3
	40	130	46	16	80	3	100	14	4	3
	50	140	59	16	90	3	110	14	4	3
	65	160	78	16	110	3	130	14	4	4
	80	185	91	18	128	3	150	18	4	4
	100	205	110	18	148	3	170	18	4	4
	125	235	135	20	178	3	200	18	8	4
	150	260	161	20	202	3	225	18	8	4
	200	315	222	22	258	3	280	18	8	4
	250	370	273	23	312	3	335	18	12	6
	300	435	325	24	365	4	395	22	12	6
	350	485	377	26	415	4	445	22	12	7
	400	535	426	28	465	4	495	22	16	7
	450	590	480	28	520	4	550	22	16	7
	500	640	530	29	570	4	600	22	16	7
	600	755	630	30	670	5	705	26	20	7
	700	860	720	32	775	5	810	26	24	7
	800	975	820	32	880	5	920	30	24	9
	900	1075	920	34	980	5	1020	30	24	9
	1000	1175	1020	36	1080	5	1120	30	28	10
	1200	1400	1220	39	1295	5	1340	33	32	10
	1400	1620	1420	48	1510	5	1560	33	36	10
	1600	1820	1620	53	1710	5	1760	33	40	10
PN10	15	95	19	12	47	2	65	14	4	2
	20	105	26	14	58	2	75	14	4	2
	25	115	33	14	68	2	85	14	4	3
	32	135	39	16	78	2	100	18	4	3
	40	145	46	18	88	3	110	18	4	3
	50	160	59	18	102	3	125	18	4	3
	65	180	78	20	122	3	145	18	4	4
	80	195	91	20	133	3	160	18	4	4
	100	215	110	22	158	3	180	18	8	4
	125	245	135	24	184	3	210	18	8	4
	150	280	161	24	212	3	240	22	8	4
	200	335	222	24	268	3	295	22	8	4
	250	390	273	26	320	3	350	22	12	6
	300	440	325	28	370	4	400	22	12	6
	350	500	377	28	430	4	460	22	16	7
	400	565	426	30	482	4	515	26	16	7
	450	615	480	30	532	4	565	26	20	7
	500	670	530	32	585	4	620	26	20	7
	600	780	630	36	685	5	725	30	20	7
	700	895	720	39	800	5	840	30	24	9
	800	1010	820	42	905	5	950	33	24	9
	900	1110	920	45	1005	5	1050	33	28	9
	1000	1220	1020	48	1110	5	1160	33	28	10
	1200	1455	1222	56	1330	5	1380	39	32	10
	1400	1675	1420	65	1530	5	1590	45	36	10
	1600	1915	1620	75	1750	5	1820	52	40	10
PN16	15	95	19	14	47	2	65	14	4	2
	20	105	26	16	58	2	75	14	4	2
	25	115	33	18	68	2	85	14	4	3
	32	135	39	18	78	2	100	18	4	3
	40	145	46	20	88	3	110	18	4	3
	50	160	59	22	102	3	125	18	4	3
	65	180	78	24	122	3	145	18	4	4
	80	195	91	24	133	3	160	18	4	4
	100	215	110	26	158	3	180	18	8	4
	125	245	135	28	184	3	210	18	8	4
	150	280	161	28	212	3	240	22	8	4
	200	335	222	30	268	3	295	22	12	4
	250	405	273	31	320	3	355	26	12	6
	300	460	325	32	370	4	410	26	12	6
	350	520	377	34	430	4	470	26	16	7
	400	580	426	38	482	4	525	30	16	7
	450	640	480	42	532	4	585	30	20	7
	500	710	530	48	585	4	650	33	20	7
	600	840	630	50	685	5	770	39	20	7
	700	910	720	52	800	5	840	39	24	9
	800	1020	820	54	905	5	950	39	24	9
	900	1120	920	59	1005	5	1050	39	28	9
	1000	1255	1020	63	1110	5	1170	45	28	10
	1200	1485	1220	76	1330	5	1390	52	32	10
PN25	15	95	19	16	47	2	65	14	4	2
	20	105	26	18	58	2	75	14	4	2
	25	115	33	18	68	2	85	14	4	3
	32	135	39	20	78	2	100	18	4	3
	40	145	46	22	88	3	110	18	4	3
	50	160	59	24	102	3	125	18	4	3
	65	180	78	24	122	3	145	18	8	4
	80	195	91	26	133	3	160	18	8	4
	100	230	110	28	158	3	190	22	8	4
	125	270	135	30	184	3	220	26	8	4
	150	300	161	30	212	3	250	26	8	4
	200	360	222	32	278	3	310	26	12	4
	250	425	273	34	335	3	370	30	12	6
	300	485	325	36	390	4	430	30	16	6
	350	550	377	42	450	4	490	33	16	7
	400	610	426	44	505	4	550	33	16	7
	450	660	480	48	555	4	600	33	20	7
	500	730	530	52	615	4	660	39	20	7
	600	840	630	54	720	5	770	39	20	7
	700	960	720	60	820	5	875	45	24	9
	800	1075	820	68	930	5	990	45	24	9
	1000	1315	1020	70	1140	5	1210	56	28	10
