Doosan Excavator Swing Motor Assy DX225 Motor Swing K1000697A Slewing Motor

Price Negotiable
Price: Negotiable price
MOQ: 1 piece
Delivery Time: 1-7days
Brand: Belparts
Product Description

R160LC-9 R160LC-9S R180LC-9 Excavator swing motor 31Q5-10160 for hyundai



Appliion

Excavator

Part name

Crawler Excavator swing motor

Brand

Doosan

Model

DX225

Part number

K1000697A

Weight

64KG

Delivery

2 days after the payment received

Shipment

by sea, by air, by express, or as required

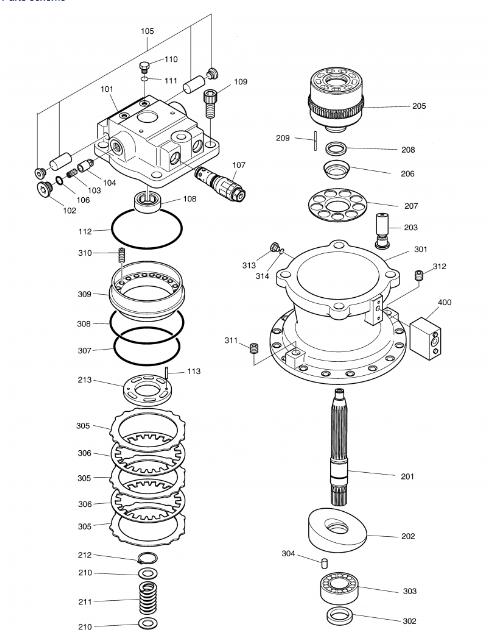

Parts on group SWING MOTOR (TYPE 1):



# Part No Part Name Comment Qty. Price request
107 1.420-00111 VALVE, RELIEF 1 kg 2
108 S6005050 BEARING, BALL   1
109 S2227561 BOLT, HEX SOCKET HEAD   4
110 2181-1950D1 PLUG, RECHECK   2
111 S8000111 O-RING 1BP11 2
112 K9001842 O-RING   1
113 S5741162 PIN, SPRING D8X16L 2
201 K9001843 SHAFT, DRIVE 3 kg 1
202 K9001844 PLATE, SWASH 3 kg 1
203 K9001845 PISTON & SHOE ASS`Y   1 SET
205 K9001846 BLOCK, CYLINDER 5 kg 1
206 1.148-00015 BALL, THRUST   1
207 1.412-00092 PLATE, RETAINER   1
208 1.114-00009 COLLAR, WASHER   1
209 1.109-00134 BEARING, ROLLER   5
210 1.114-00286 WASHER   2
211 1.131-00048 SPRING   1
212 S6510620 RING, RETAINING   1
213 K9001847 PLATE, TIMING 1 kg 1
301 K9001848 CASING 22 kg 1
302 180-00219 SEAL, OIL   1
303 S6005090 BEARING, BALL 1 kg 1
304 1.123-00053 PIN, PARALLEL   1
305 352-00014 SEPARATOR PLATE(S/M)   3
306 412-00013 PLATE, FRICTION   2
307 180-00220 O-RING   1
308 180-00221 O-RING   1
309 452-00020 PISTON, BRAKE 3 kg 1
310 129-00062 SPRING, BRAKE   18
311 181-00346 PLUG, PT   1
312 2181-1116D2 PLUG, RECHECK   1
313 2181-1950D1 PLUG, RECHECK   1
314 S8000111 O-RING 1BP11 1
400 420-00110 VALVE, BRAKE 1 kg 1
* K9001903 SEAL KIT, SWING MOTOR   1
- K1000697A MOTOR, SWING 64 kg 1
101 *NA00351 CASING, VALVE   1
102 2.121-00009 PLUG   2
103 K9001840 SPRING   2
104 K9001841 PLUNGER   2
105 1.420-00016 VALVE, SWING REACTIONLESS 1 kg 1
106 S8000341 O-RING E6300761 2
