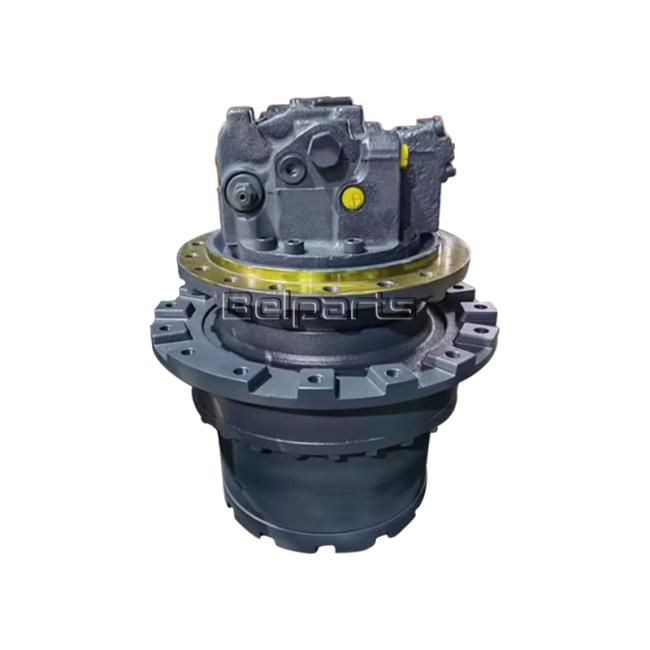

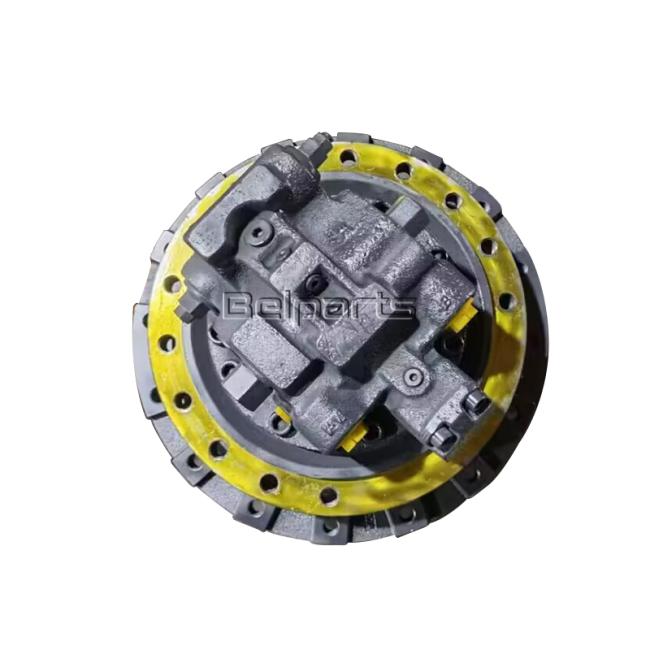

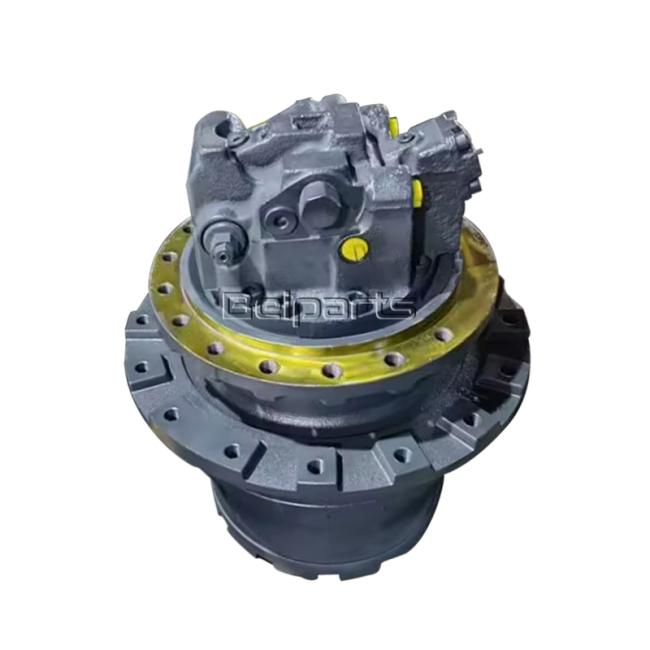

Belparts Excavator Travel Motor Assy Final Drive EX200-3 Repair Kit 9120000 9131678 For Hitachi
Belparts Excavator Travel Motor Assy Final Drive EX200-3 repair kit 9120000 9131678 for hitachi
Appliion:Excavator machine
Part name:travelling motors assy
Model:EX200-3
Package:56*54*67
Warranty:1 Year
Brand:Belparts
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required
|
Appliion |
Crawler Excavator |
|
Part name |
final drive |
|
Part number |
9120000 9131678 |
|
Model |
EX200-3 |
|
MOQ |
1PC |
|
Brand |
Belparts |
|
Delivery |
2 days after the payment received |
|
Shipment |
by sea, by air, by express, or as required |
| # | Part No | Part Name | Qty. | Price request |
| 9120000 | MOTOR; OIL | 1 | ||
| (9131678) | MOTOR; OIL | |||
| 02 | 1014547 | . HOUSING | ||
| 04 | 2026713 | . DISC; DRIVING | ||
| 06 | 4198783 | . BRG.; ROL. | ||
| 07 | 4198998 | . BRG.; ROL. | ||
| 08 | 4222980 | . SPACER | ||
| 09 | 4178173 | . NUT; BRG. | ||
| 11 | 4260561 | . SEAL; OIL | 1 | |
| 12 | 4116290 | . RING; RETAINING | 1 | |
| 14 | 2034880 | . ROTOR | 1 | |
| 17 | 8050658 | . PISTON | 7 | |
| 19 | 3064069 | . SHAFT; CENTER | 1 | |
| 20 | 4179181 | . SPRING; COMPRES. | 1 | |
| 21 | 4198956 | . PIN | 1 | |
| 22 | 4234229 | . RING; RETAINING | ||
| 24 | 3037401 | . PLATE; FRICTION | ||
| 25 | 3032432 | . PLATE | ||
| 26 | 4246784 | . SPACER | 1 | |
| 28 | 3047473 | . PISTON | 1 | |
| 29 | 4232766 | . D-RING | 1 | |
| 30 | 4232767 | . D-RING | 1 | |
| 31 | 3047472 | . SPRING; DISC | 1 | |
| 33 | 4248871 | . O-RING | 1 | |
| 34 | 4506415 | . O-RING | 1 | |
| 37 | 9119999 | . VALVE; BRAKE | 1 | |
| 37 | (9131604) | . VALVE; BRAKE | ||
| 38 | M341650 | . BOLT; SOCKET | ||
| 40 | 3064074 | . PLATE | 1 | |
| 41 | 4266256 | . PIN; KNOCK | 2 | |
| 45 | 2034875 | . VALVE | 1 | |
| 46 | 4234628 | . BUSHING | 1 | |
| 48 | 3052403 | . LINK | 1 | |
| 49 | 4255238 | . PLUG | 2 | |
| 51 | 4262561 | . BOLT; REAMER | 1 | |
| 53 | 9101386 | . PISTON; SERVO | 1 | |
| 55 | 4260308 | . RING; PISTON | 2 | |
| 56 | 4275286 | . COVER | 1 | |
| 57 | 4265579 | . O-RING | 1 | |
| 58 | M341225 | . BOLT; SOCKET | 4 | |
| 63 | 9134112 | . PLUG | 1 | |
| 63A | 4506418 | .. O-RING | 1 | |
| 64 | 9134109 | . PLUG | 1 | |
| 64A | 4506408 | .. O-RING | 1 |
