Belparts Excavator Travel Motor Assy Final Drive EX300-5 Repair Kit 9149125 9155694 For Hitachi
Belparts Excavator Travel Motor Assy Final Drive EX300-5 repair kit 9149125 9155694 for hitachi
Appliion:Excavator machine
Part name:travelling motors assy
Model:EX300-5
Package:56*54*67
Warranty:1 Year
Brand:Belparts
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required
|
Appliion |
Crawler Excavator |
|
Part name |
final drive |
|
Part number |
9149125 9155694 |
|
Model |
EX300-5 |
|
MOQ |
1PC |
|
Brand |
Belparts |
|
Delivery |
2 days after the payment received |
|
Shipment |
by sea, by air, by express, or as required |

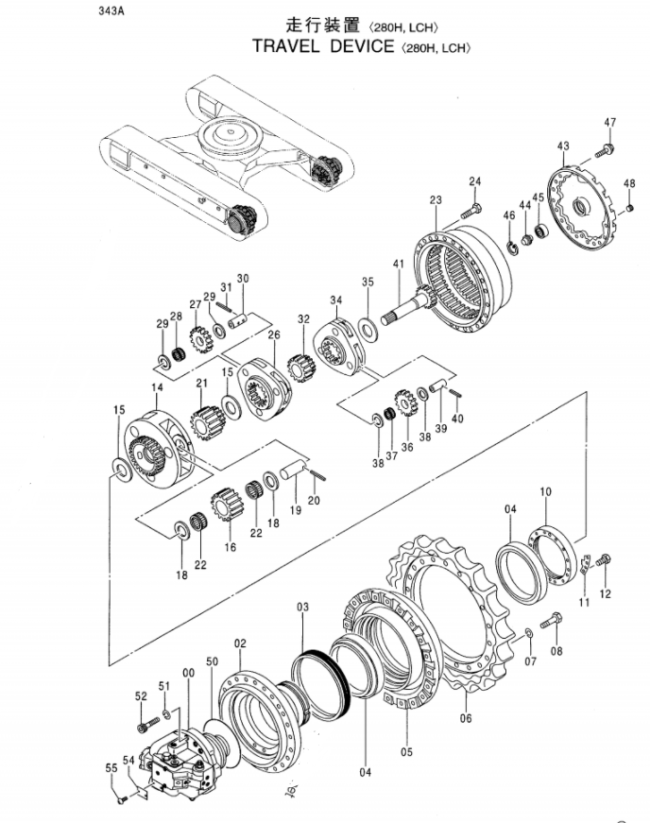

| # | Part No | Part Name | Qty. | Price request |
| 9149125 | MOTOR; OIL | 1 | ||
| (9155694) | MOTOR; OIL | |||
| 02 | 1019564 | . CASING; MOTOR | ||
| 03 | 2040523 | . DISC; DRIVING | ||
| 06 | 4199108 | . BRG.; ROL. | ||
| 07 | 4199072 | . BRG.; ROL. | ||
| 09 | 4191665 | . NUT; BRG. | ||
| 10 | 4389598 | . SPACER | 1 | |
| 11 | 4191666 | . SEAL; OIL | 1 | |
| 12 | 4038529 | . RING; RETAINING | 1 | |
| 13 | 2040520 | . ROTOR | 1 | |
| 16 | 8068583 | . PISTON | 7 | |
| 18 | 3078298 | . SHAFT; CENTER | 1 | |
| 20 | 4194362 | . SPRING; COMPRES. | 1 | |
| 21 | 4198956 | . PIN | 1 | |
| 24 | 3036457 | . PLATE; FRICTION | ||
| 25 | 3036456 | . PLATE | ||
| 26 | 4193996 | . SPACER | 1 | |
| 27 | 3078190 | . PISTON | 1 | |
| 29 | 4252401 | . D-RING | 1 | |
| 30 | 4269474 | . D-RING | 1 | |
| 31 | 3054505 | . SPRING; DISC | 1 | |
| 33 | 4269473 | . O-RING | 1 | |
| 34 | 4506415 | . O-RING | 1 | |
| 35 | 9157762 | . VALVE; BRAKE | 1 | |
| 35 | (9158391) | . VALVE; BRAKE | ||
| 38 | M341850 | . BOLT; SOCKET | ||
| 40 | 2035236 | . PLATE | 1 | |
| 42 | 4364104 | . PIN; KNOCK | 2 | |
| 44 | 2040522 | . VALVE | 1 | |
| 46 | 4234628 | . BUSHING | 1 | |
| 49 | 4255238 | . PLUG | 2 | |
| 50 | 2040803 | . LINK | 1 | |
| 51 | 4262561 | . BOLT; REAMER | 1 | |
| 52 | 9157588 | . PISTON; SERVO | 1 | |
| 55 | 4260308 | . RING; PISTON | 2 | |
| 57 | 4265579 | . O-RING | 1 | |
| 61 | 9134112 | . PLUG | 1 | |
| 61A | 4506418 | .. O-RING | 1 | |
| 63 | 9134109 | . PLUG | 1 | |
| 63A | 4506408 | .. O-RING | 1 | |
| 64 | 4364921 | . COVER | 1 | |
| 65 | M341225 | . BOLT; SOCKET | 4 |
Company Information
GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox. Our products have been exported to more than 100 countries and regions.
Factory
Certifiion
Product Testing
Product Packing
Our Services
If you can provide the right model and part number, we can supply the right product.
Our founder has been into this field for more than 6 years, with rich experiences.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
No matter how big or small order, as long as customers place the order, we will provide exporting services free of charge.
As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
