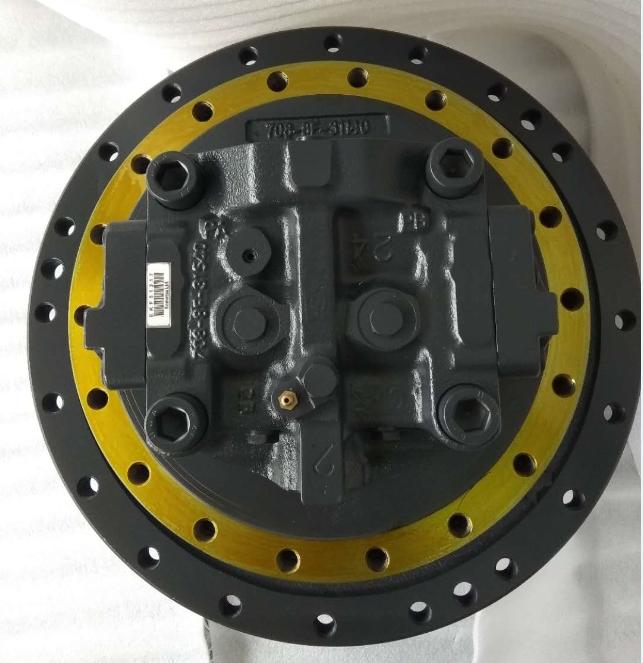

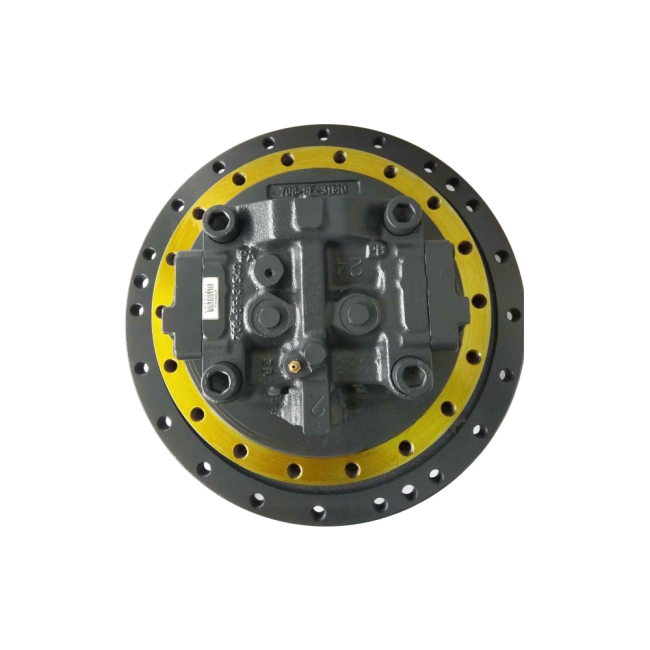

Belparts Excavator Pc220-6 Final Drive 708-8F-00121 Travel Motor Assy
Belparts excavator pc220-6 final drive 708-8F-00121 travel motor assy
Appliion:Excavator machine
Part name:travelling motors assy
Model: pc220-6
Package:56*54*67
Warranty:1 Year
Brand:Belparts
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required
|
Appliion |
Crawler Excavator |
|
Part name |
final drive |
|
Part number |
708-8F-00121 |
|
Model |
pc220-6 |
|
MOQ |
1PC |
|
Brand |
Belparts |
|
Delivery |
2 days after the payment received |
|
Shipment |
by sea, by air, by express, or as required |

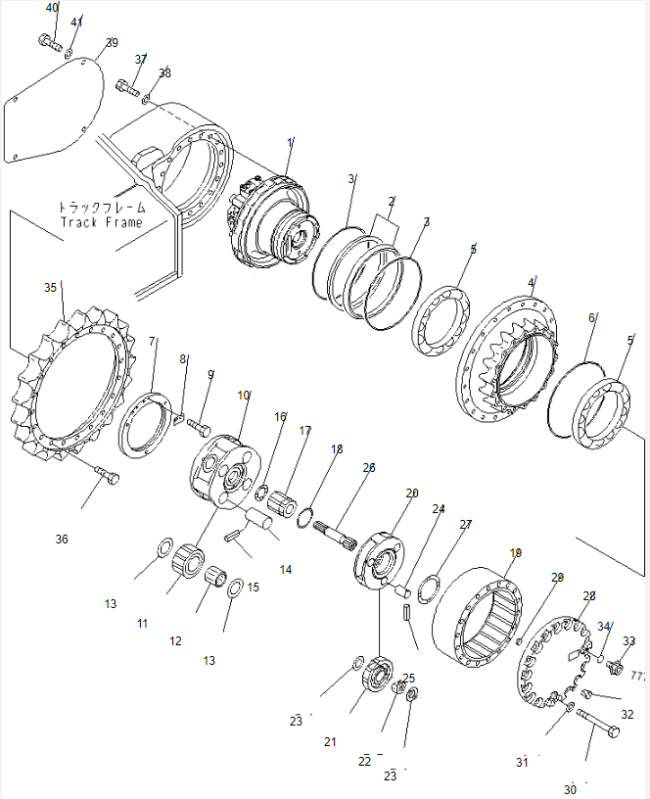

| # | Part No | Part Name | Qty. | Price request |
| 1 | (708-8F-00121) | MOTOR ASS'Y | 2 | |
| 1 | (708-8F-00120) | TRAVEL MOTOR ASS'Y,20Y-27-22181?20Y-27-22261) | 2 | |
| 1 | (708-8F-00071) | TRAVEL MOTOR ASS'Y | 2 | |
| (708-8F-00120{20Y-27-22181?20Y-27-22261)} | ||||
| 1 | (708-8F-00070) | TRAVEL MOTOR ASS'Y | 2 | |
| 2 | 150-27-00330 | FLOATING SEAL ASS'Y | 2 | |
| 2 | 150-27-00029 | FLOATING SEAL ASS'Y | 2 | |
| 2 | Ring | 2 | ||
| 2 | Ring | 2 | ||
| 3 | O-ring | 2 | ||
| 4 | 20Y-27-22181 | Hub | 2 | |
| 4 | 20Y-27-22180 | Hub | 2 | |
| (20Y-27-22181{708-8F-00120?20Y-27-22261)} | ||||
| 5 | 20Y-27-22230 | Bearing | 4 | |
| 6 | 20Y-27-22280 | O-ring | 2 | |
| 7 | 20Y-27-22261 | Lock | 2 | |
| 7 | 20Y-27-22260 | Lock | 2 | |
| 8 | 20Y-27-22270 | Lock | 2 | |
| 9 | 01010-81020 | BOLT,(FOR MONO LEVER STEERING) | 4 | |
| 10 | 20Y-27-22170 | Carrier | 2 | |
| 11 | 20Y-27-22140 | Gear | 8 | |
| 12 | 20Y-27-22220 | Bearing | 8 | |
| 13 | 20Y-27-21250 | WASHER,THRUST | 16 | |
| 14 | 20Y-27-21230 | Pin | 8 | |
| 15 | 20Y-27-21290 | Pin | 8 | |
| 16 | 20Y-27-13310 | WASHER,THRUST | 2 | |
| 17 | 20Y-27-22130 | Gear | 2 | |
| 18 | 20Y-27-22240 | Washer | 2 | |
| 19 | 20Y-27-22150 | Gear | 2 | |
| 20 | 20Y-27-22160 | Carrier | 2 | |
| 21 | 20Y-27-22120 | Gear | 6 | |
| 22 | 20Y-27-22210 | Bearing | 6 | |
| 23 | 20Y-27-21240 | WASHER,THRUST | 12 | |
| 24 | 20Y-27-21220 | Pin | 6 | |
| 25 | 20Y-27-21280 | Pin | 6 | |
| 26 | 20Y-27-22110 | Shaft | 2 | |
| 27 | 20Y-27-21310 | Washer | 2 | |
| 28 | 20Y-27-22250 | BUTTON | 2 | |
| 29 | 20Y-27-22190 | Cover | 2 | |
| 30 | 20Y-27-13281 | Bolt | 36 | |
| 31 | 01643-31645 | WASHER,(FOR TRAVEL MOTOR) (NOT SHOW) | 36 | |
| 32 | 07049-01012 | PLUG,(WITH CANVAS OR ROPS CANOPY) | 4 | |
| 33 | 07044-12412 | PLUG,MAGNETIC | 4 | |
| 34 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 4 | |
| 35 | 20Y-27-11582 | SPROCKET | 2 | |
| 35 | 20Y-27-11581 | SPROCKET | 2 | |
| 36 | 20Y-27-11561 | Bolt | 40 | |
| 37 | 01010-61660 | CAPSCREW | 36 | |
| 37 | 01010-61670 | CAPSCREW | 36 | |
| 38 | 01643-31645 | WASHER,(FOR TRAVEL MOTOR) (NOT SHOW) | 36 | |
| 39 | 20Y-30-21191 | Cover | 2 | |
| 39 | 20Y-30-21190 | Cover | 2 | |
| 40 | 01010-81230 | BOLT,(NOT USED WHEN TOWING WINCH) | 8 | |
| 41 | 01643-31232 | WASHER,(NOT USED WITH EMERGENCY STR.) | 8 |
