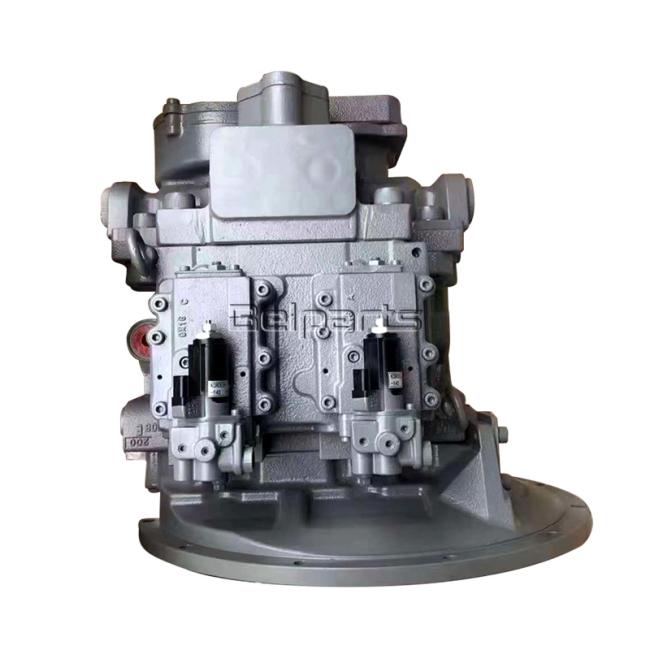

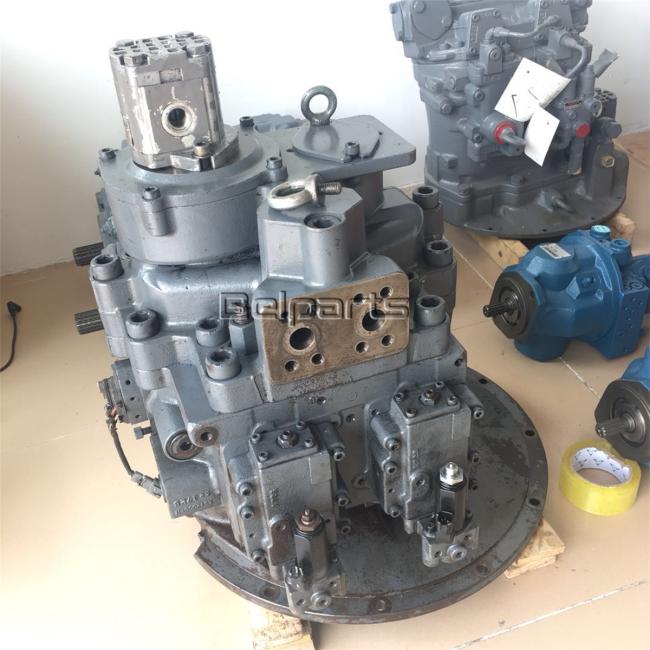

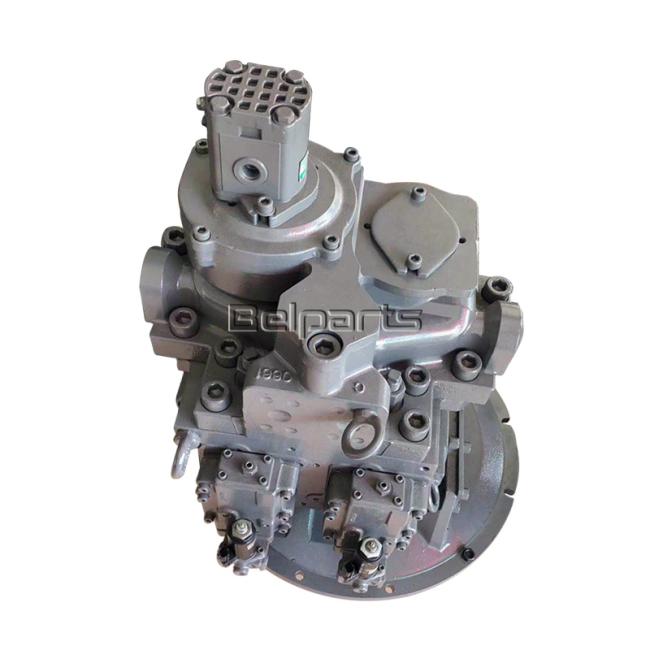

Belparts Excavator Main Pump ZAX450 ZX450 Hydraulic Pump 9184686 9199338 For Hitachi
Belparts excavator main pump ZAX450 ZX450 hydraulic pump 9184686 9199338 for hitachi
Appliion:Excavator
Part name:hydarulic pump
Part number:9184686 9199338
Model:ZAX450 ZX450
MOQ:1PC
Material:Steel
Payment term:T/T, Western union, paypal, trade assurance or as required
Weight:190KG
Brand:Belparts
| Appliion | Excavator |
| Part name | hydarulic pump |
| Part number | 9184686 9199338 |
| Model | ZAX450 ZX450 |
| MOQ | 1PC |
| Material | Steel |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Weight | 190KG |
| Brand | Belparts |
| # | Part No | Part Name | Qty. | Price request |
| 9184686 | PUMP; PISTON | 1 | ||
| 001 | 4469526 | . REGULATOR | 2 | |
| 011 | 0820401 | . PISTON ASS'Y | 2 | |
| 011A | .. PISTON | 9 | ||
| 011B | .. SHOE | 9 | ||
| 013 | 0820402 | . CYL. ASS'Y | 1 | |
| 013A | .. BLOCK; CYL. | 1 | ||
| 013B | .. PLATE; VALVE | 1 | ||
| 014 | 0451003 | . CYL. ASS'Y | 1 | |
| 014A | .. BLOCK; CYL. | 1 | ||
| 014B | .. PLATE; VLAVE | 1 | ||
| 030 | 0820403 | . PLATE ASS'Y | 1 | |
| 030A | .. PLATE | 1 | ||
| 030B | .. BUSHING | 1 | ||
| 030C | .. LEVER | 1 | ||
| 030D | .. BOLT | 1 | ||
| 030E | .. PIN | 1 | ||
| 030F | .. PIN | 1 | ||
| 031 | 0820404 | . PLATE ASS'Y | 1 | |
| 031A | .. PLATE | 1 | ||
| 031B | .. BUSHING | 1 | ||
| 031C | .. LEVER | 1 | ||
| 031D | .. BOLT | 1 | ||
| 031E | .. PIN | 1 | ||
| 031F | .. PIN | 1 | ||
| 111 | 0820405 | . SHAFT | 1 | |
| 113 | 0820406 | . SHAFT | 1 | |
| 123 | 0820407 | . BRG.; ROL. | 2 | |
| 124 | 0820408 | . BRG.; NEEDLE | 2 | |
| 126 | 0820409 | . SPACER | 2 | |
| 127 | 0820410 | . SPACER | 1 | |
| 128 | 0820411 | . SPACER | 3 | |
| 129 | 0820412 | . SPACER | 1 | |
| 130 | 0820413 | . BOOSTER | 1 | |
| 131 | 0820414 | . COVER | 1 | |
| 153 | 0820415 | . RETAINER | 2 | |
| 156 | 0820416 | . BUSHING | 2 | |
| 157 | 0451016 | . SPRING | 18 | |
| 171 | 0820417 | . CASING | 1 | |
| 191 | 0820418 | . GEAR; DRIVE | 1 | |
| 192 | 0820419 | . GEAR | 1 | |
| 211 | 0451018 | . PLATE | 2 | |
| 251 | 0820420 | . SUPPORT | 2 | |
| 261 | 0820421 | . COVER; SEAL | 1 | |
| 261 | 0820440 | . COVER; SEAL | 1 | |
| 262 | 0820422 | . COVER | 1 | |
| 271 | 0820423 | . CASING | 1 | |
| 312 | 0820424 | . COVER; VALVE | 1 | |
| 402 | 0237902 | . BOLT; SOCKET | 4 | |
| 405 | 0134701 | . BOLT; SOCKET | 8 | |
| 406 | M341236 | . BOLT; SOCKET | 8 | |
| 408 | 0131103 | . BOLT; SOCKET | 11 | |
| 409 | 0820425 | . BOLT; SOCKET | 2 | |
| 410 | 0820426 | . BOLT; SOCKET | 9 | |
| 411 | 0820427 | . BOLT; SOCKET | 2 | |
| 412 | 0820428 | . BOLT; SOCKET | 1 | |
| 413 | M341025 | . BOLT; SOCKET | 5 | |
| 414 | M340820 | . BOLT; SOCKET | 4 | |
| 467 | 0629404 | . PLUG | 2 | |
| 469 | 0697911 | . PLUG | 3 | |
| 490 | 0263019 | . PLUG | 20 | |
| 491 | 0451028 | . PLUG | 14 | |
| 492 | 0451027 | . SCREW | 4 | |
| 493 | 0102440 | . PLUG | 2 | |
| 530 | 0820438 | . PIN ASS'Y | 2 | |
| 530A | .. PIN | 2 | ||
| 530B | .. PIN | 2 | ||
| 532 | 0820429 | . PISTON; SERVO | 2 | |
| 534 | 0451031 | . STOPPER | 2 | |
| 535 | 0820430 | . STOPPER | 2 | |
| 536 | 0820431 | . COVER | 2 | |
| 540 | . VALVE; CHECK ASS'Y | 2 | ||
| 540 | 0820444 | . VALVE; CHECK ASS'Y | 2 | |
| 541 | 0738217 | .. SEAT | 1 | |
| 541 | 0820441 | .. SEAT | 1 | |
| 543 | 0738218 | .. STOPPER | 1 | |
| 543 | 0820442 | .. STOPPER | 1 | |
| 545 | 0221509 | .. BALL; STEEL | 1 | |
| 702 | 0451033 | . O-RING | 2 | |
| 709 | 0694604 | . O-RING | 1 | |
| 711 | 0820432 | . O-RING | 1 | |
| 712 | 0820433 | . O-RING | 1 | |
| 724 | 0443801 | . O-RING | 7 | |
| 725 | 4297379 | . O-RING | 6 | |
| 726 | 0443405 | . O-RING | 2 | |
| 728 | 0443408 | . O-RING | 3 | |
| 732 | 0451035 | . O-RING | 2 | |
| 752 | 0820439 | . PACKING | 2 | |
| 774 | 0384208 | . SEAL; OIL | 1 | |
| 774 | 0820443 | . SEAL; OIL | 1 | |
| 789 | 0451036 | . RING; BACK-UP | 2 | |
| 792 | 0451037 | . RING; BACK-UP | 2 | |
| 804 | 4469592 | . UNIT(TILTING-PROBING 0804100 | 2 | |
| 806 | 0451038 | . NUT | 2 | |
| 807 | 0820434 | . NUT | 2 | |
| 823 | 959499 | . RING; RETAINING | 1 | |
| 824 | 991345 | . RING; RETAINING | 3 | |
| 825 | 488075 | . RING; RETAINING | 2 | |
| 827 | 991728 | . RING; RETAINING | 1 | |
| 828 | 0820435 | . RING; RETAINING | 2 | |
| 885 | 0313404 | . PIN | 2 | |
| 886 | 0244604 | . PIN; SPRING | 4 | |
| 888 | 0820436 | . PIN | 2 | |
| 901 | 0134458 | . BOLT; EYE | 2 | |
| 953 | 0738221 | . SCREW; SET | 2 | |
| 954 | 0682328 | . SCREW; SET | 2 | |
| 974 | 0451203 | . WASHER | 4 | |
| 981 | 0625508 | . NAME-PLATE | 1 | |
| 983 | 0625509 | . PIN | 2 | |
| 995 | 9102385 | . SENSOR; ANGLE | 2 | |
| 995 | 4444902 | . SENSOR; ANGLE | 2 | |
| 996 | 4255077 | . SPRING; PLATE | 2 | |
| 997 | 4274371 | . O-RING | 2 |
GZ YUEXIANG ENGINEERING MACHINERY LTD
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. And by now, our products sell well all over the world and the current exporting countries and regions has more than 120.
With a stable production, strict quality control and strong supply capacity, most of our parts can be shipped in 1-2 days, we sell many parts to the world and get reputations from our clients.
FAQ
1.What is the warranty time of the products?
The warranty time is 3/6 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, the delivery time will be communied in advance, usually 3-7 days
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel motor,swing motor, travel gearbox,swing gearbox,gear parts, hydraulic pump,hydraulic parts,etc.If you need other excavator parts, we also can supply as your requirements.
