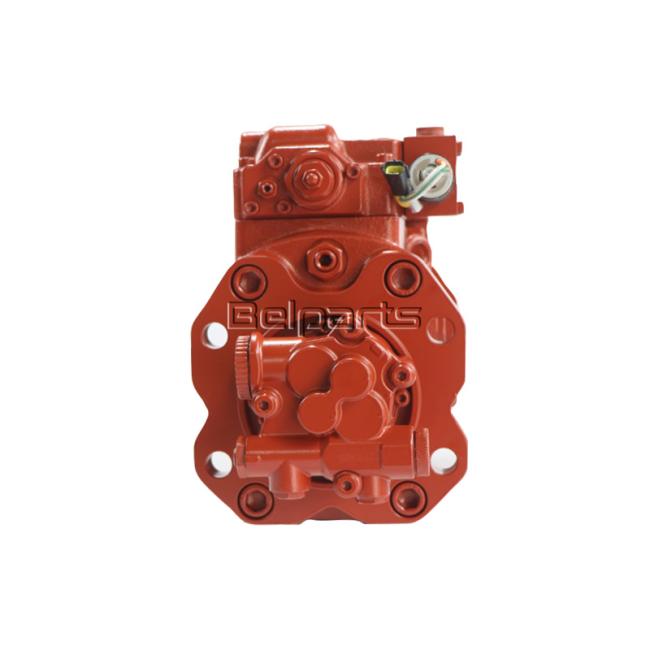

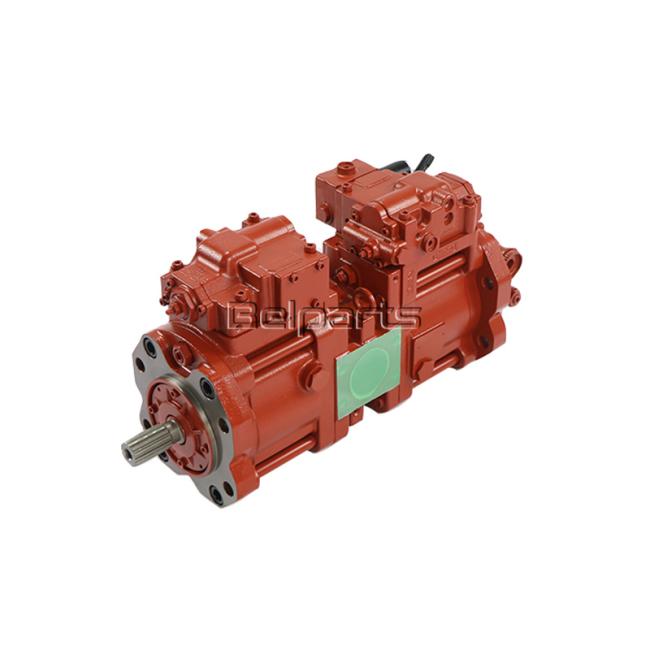

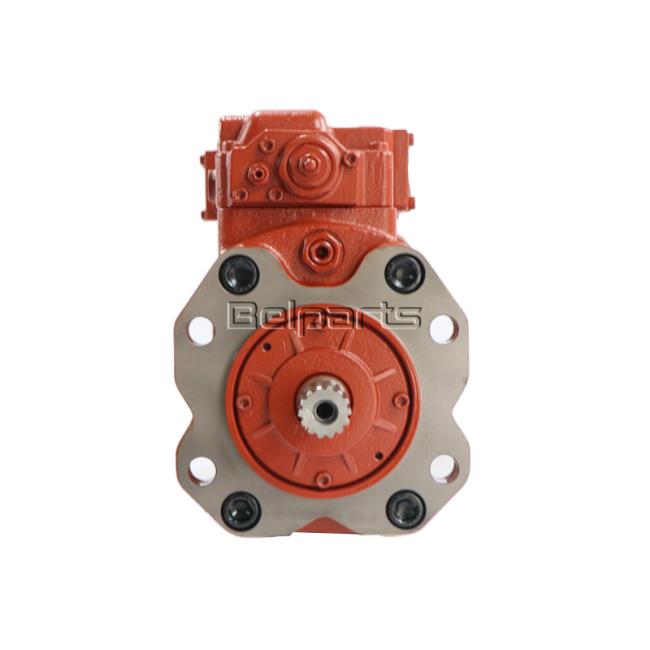

Excavator Main Pump R110 R130 R150-5 Hydraulic Pump 31N3-10050 31EA-00200
Price:
negotiation
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Belparts
Product Description
Belparts excavator main pump R110 R130 R150-5-7 hydraulic pump 31N3-10050 31EA-00200
Appliion:Excavator
Part name:hydarulic pump
Part number:31N3-10050 31EA-00200
Model:R110 R130 R150-5-7
MOQ:1PC
Material:Steel
Payment term:T/T, Western union, paypal, trade assurance or as required
Weight:190KG
Brand:Belparts
| Appliion | Excavator |
| Part name | hydarulic pump |
| Part number | 31N3-10050 31EA-00200 |
| Model | R110 R130 R150-5-7 |
| MOQ | 1PC |
| Material | Steel |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Weight | 190KG |
| Brand | Belparts |

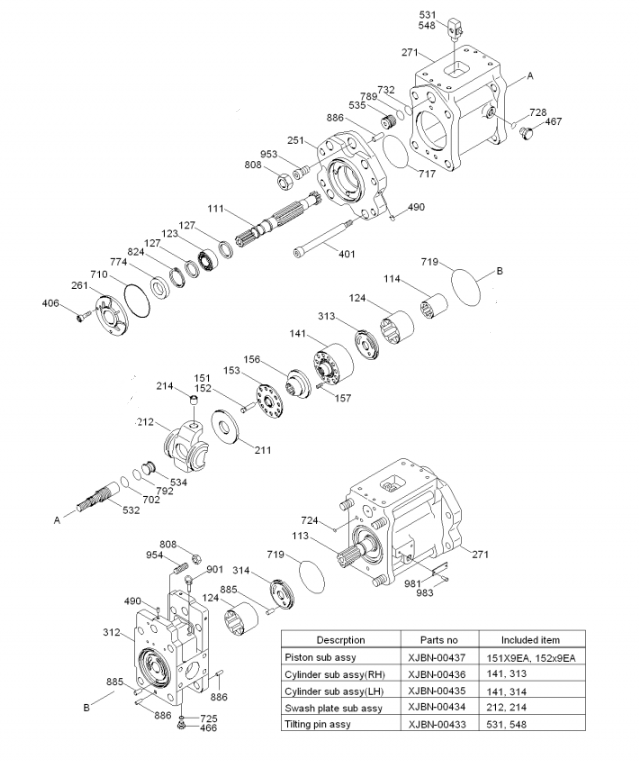

| # | Part No | Part Name | Qty. | Price request |
| * | 31N3-10050 | MAIN PUMP | 1 | |
| *-1 | XJBN-00928 | MAIN PUMP UNIT | 1 | |
| 111 | XJBN-00432 | SHAFT(F)-DRIVE | 1 | |
| 113 | XJBN-00431 | SHAFT(R)-DRIVE | 1 | |
| 114 | XJBN-00430 | COUPLING-SPLINE | 1 | |
| 123 | XJBN-00429 | BEARING-ROLLER | 2 | |
| 124 | XJBN-00428 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-00427 | SPACER-BEARING | 4 | |
| S141 | XJBN-00426 | BLOCK-CYLINDER | 2 | |
| S151 | XJBN-00425 | PISTON | 18 | |
| S152 | XJBN-00424 | SHOE | 18 | |
| 153 | XJBN-00423 | PLATE-SET | 2 | |
| 156 | XJBN-00422 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00421 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00420 | PLATE-SHOE | 2 | |
| S212 | XJBN-00419 | PLATE-SWASH | 2 | |
| S214 | XJBN-00418 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00417 | SUPPORT | 2 | |
| 261 | XJBN-00416 | COVER(F)-SEAL | 1 | |
| 271 | XJBN-00415 | CASING-PUMP | 2 | |
| 312 | XJBN-00414 | BLOCK-VALVE | 1 | |
| S313 | XJBN-00413 | PLATE(R)-VALVE | 1 | |
| S314 | XJBN-00412 | PLATE(L)-VALVE | 1 | |
| 401 | XJBN-00411 | SCREW | 8 | |
| 406 | XJBN-00410 | SCREW | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 467 | XJBN-00409 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 15 | |
| S531 | XJBN-00408 | PIN-TILTING | 2 | |
| 532 | XJBN-00407 | PISTON-SERVO | 2 | |
| 534 | XJBN-00406 | STOPPER(L) | 2 | |
| 535 | XJBN-00405 | STOPPER(S) | 2 | |
| S548 | XJBN-00404 | PIN-FEED BACK | 2 | |
| 702 | XJBN-00403 | O-RING | 2 | |
| 710 | XJBN-00402 | O-RING | 1 | |
| 717 | XJBN-00401 | O-RING | 2 | |
| 719 | XJBN-00400 | O-RING | 2 | |
| 724 | XJBN-00361 | O-RING | 18 | |
| 725 | XJBN-00362 | O-RING | 2 | |
| 728 | XJBN-00097 | O-RING | 4 | |
| 732 | XJBN-00879 | O-RING | 2 | |
| 774 | XJBN-00399 | SEAL-OIL | 1 | |
| 789 | XJBN-00398 | RING-BACK UP | 2 | |
| 792 | XJBN-00397 | RING-BACK UP | 2 | |
| 808 | XJBN-00396 | NUT-HEX | 4 | |
| 824 | XJBN-00395 | RING-SNAP | 2 | |
| 885 | XJBN-00394 | PIN-VALVE PLATE | 2 | |
| 886 | XJBN-00365 | PIN-SPRING | 4 | |
| 901 | XJBN-00393 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SCREW-SET | 2 | |
| 954 | XJBN-00392 | SCREW-SET | 2 | |
| 981 | XJBN-00391 | NAME PLATE | 2 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020, FRONT |
1 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020, REAR |
1 | |
| *-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 |
1 | |
| 011 | XJBN-00437 | PISTON SUB ASSY SEE ILLUST |
1 | |
| 013 | XJBN-00436 | CYLINDER ASSY-RH SEE ILLUST |
1 | |
| 014 | XJBN-00435 | CYLINDER ASSY-LH SEE ILLUST |
1 | |
| 030 | XJBN-00434 | SWASH PLATE ASSY SEE ILLUST |
1 | |
| 530 | XJBN-00433 | TILTING PIN ASSY SEE ILLUST |
1 |
company model three
GZ YUEXIANG ENGINEERING MACHINERY LTD
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. And by now, our products sell well all over the world and the current exporting countries and regions has more than 120.
With a stable production, strict quality control and strong supply capacity, most of our parts can be shipped in 1-2 days, we sell many parts to the world and get reputations from our clients.
