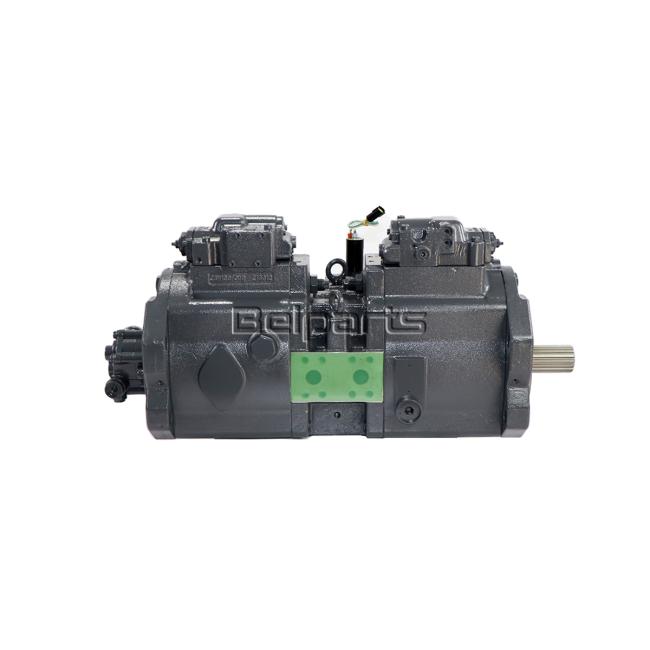

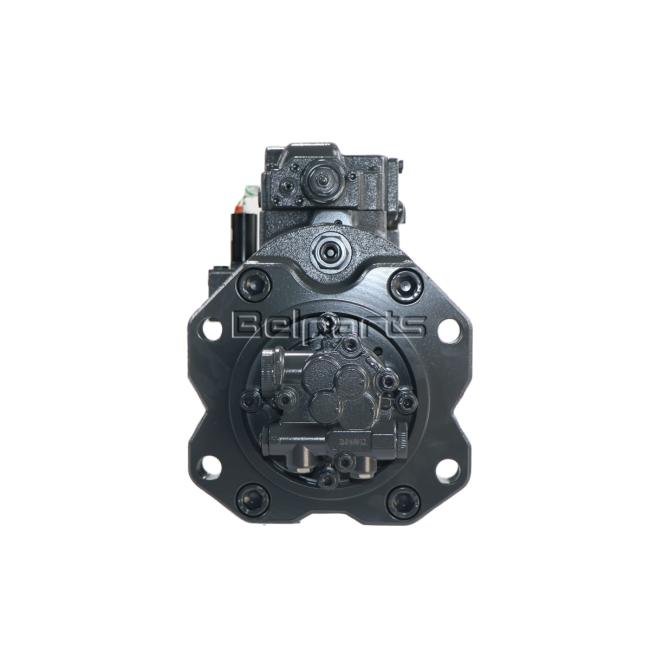

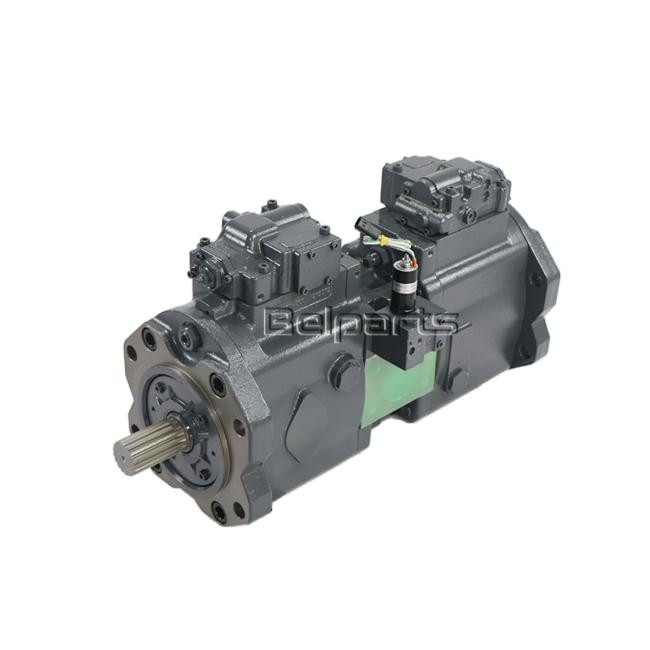

Excavator Main Pump R290 R300 R305 R350-5-7 Hydraulic Pump 31N8-10010 31N8-10050 For Hyundai
Belparts excavator main pump R290 R300 R305 R350-5-7 hydraulic pump 31N8-10010 31N8-10050 for hyundai
Appliion:Excavator
Part name:hydarulic pump
Part number:31N8-10010 31N8-10050
Model:R290 R300 R305 R350-5-7
MOQ:1PC
Material:Steel
Payment term:T/T, Western union, paypal, trade assurance or as required
Weight:190KG
Brand:Belparts
| Appliion | Excavator |
| Part name | hydarulic pump |
| Part number | 31N8-10010 31N8-10050 |
| Model | R290 R300 R305 R350-5-7 |
| MOQ | 1PC |
| Material | Steel |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Weight | 190KG |
| Brand | Belparts |

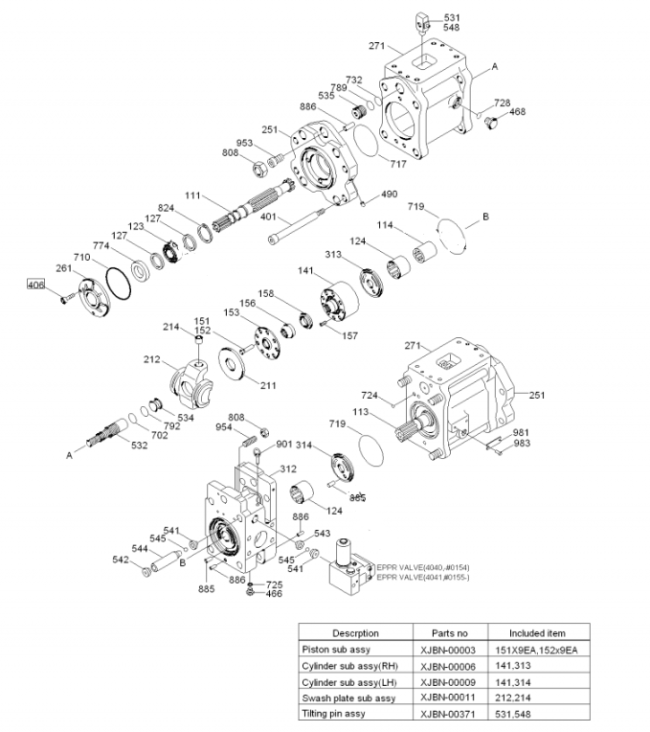

| # | Part No | Part Name | Qty. | Price request |
| * | 31N8-10010 | MAIN PUMP | 1 | |
| * | 31N8-10010 | MAIN PUMP TIER-II |
1 | |
| * | 31N8-10050 | MAIN PUMP | 1 | |
| *-1 | K3V140DT-1CER | MAIN PUMP UNIT | 1 | |
| *-1 | K3V140DT-1CER-B | MAIN PUMP UNIT | 1 | |
| 111 | XJBN-00015 | SHAFT-DRIVE(F) | 1 | |
| 113 | XJBN-00153 | SHAFT-DRIVE(R) | 1 | |
| 114 | XJBN-00367 | COUPLING-SPLINE | 1 | |
| 123 | XJBN-00017 | BEARING-ROLLER | 2 | |
| 124 | XJBN-00018 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-00019 | SPACER-BEARING | 3 | |
| NS141 | XJBN-00007 | BLOCK-CYLINDER | 2 | |
| NS151 | XJBN-00004 | PISTON | 18 | |
| NS152 | XJBN-00748 | SHOE | 18 | |
| 153 | XJBN-00020 | PLATE-SET | 2 | |
| 156 | XJBN-00021 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00022 | SPRING-CYLINDER | 18 | |
| 158 | XJBN-00368 | SPACER | 2 | |
| 211 | XJBN-00023 | PLATE-SHOE | 2 | |
| NS212 | XJBN-00012 | PLATE-SWASH | 2 | |
| NS214 | XJBN-00013 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00024 | SUPPORT | 2 | |
| 261 | XJBN-00025 | COVER(FR)-SEAL | 1 | |
| 271 | XJBN-00026 | CASING-PUMP | 2 | |
| 312 | XJBN-00027 | BLOCK-VALVE | 1 | |
| NS313 | XJBN-00008 | PLATE(R)-VALVE | 1 | |
| NS314 | XJBN-00010 | PLATE(L)-VALVE | 1 | |
| N325 | XJBN-00380 | CASING-VALVE | 1 | |
| 401 | XJBN-00028 | SCREW | 8 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 4 | |
| 407 | XJBN-00381 | SCREW | 3 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 466 | XJBN-00356 | PLUG | 3 | |
| 468 | XJBN-00357 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 29 | |
| 490 | XJBN-00032 | PLUG | 32 | |
| NS531 | XJBN-00369 | PIN-TILTING | 2 | |
| 532 | XJBN-00033 | PISTON-SERVO | 2 | |
| 534 | XJBN-00034 | STOPPER(L) | 2 | |
| 535 | XJBN-00035 | STOPPER(S) | 2 | |
| N541 | XJBN-00036 | SEAT | 4 | |
| N543 | XJBN-00037 | STOPPER 1 | 2 | |
| N544 | XJBN-00039 | STOPPER 2 | 2 | |
| N545 | XJBN-00359 | BALL-STEEL | 4 | |
| NS548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| 702 | XJBN-00040 | O-RING | 2 | |
| 710 | XJBN-00041 | O-RING | 1 | |
| 717 | XJBN-00042 | O-RING | 2 | |
| 719 | XJBN-00043 | O-RING | 2 | |
| 724 | XJBN-00361 | O-RING | 16 | |
| 725 | XJBN-00362 | O-RING | 4 | |
| 725 | XJBN-00362 | O-RING | 8 | |
| 727 | XJBN-00283 | O-RING | 1 | |
| 728 | XJBN-00363 | O-RING | 3 | |
| 732 | XJBN-00047 | O-RING | 2 | |
| 774 | XJBN-00906 | SEAL-OIL | 1 | |
| 789 | XJBN-00049 | RING-BACK UP | 2 | |
| 792 | XJBN-00050 | RING-BACK UP | 2 | |
| 808 | XJBN-00364 | NUT | 4 | |
| 824 | XJBN-00052 | RING-SNAP | 2 | |
| 885 | XJBN-00053 | PIN-2 | 2 | |
| 886 | XJBN-00365 | PIN-SPRING | 4 | |
| 901 | XJBN-00055 | BOLT-EYE | 2 | |
| 953 | XJBN-00056 | SCREW-SET | 2 | |
| 954 | XJBN-00057 | SCREW-SET | 2 | |
| 981 | XJBN-00156 | NAME PLATE | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | XJBN-00001 | REGULATOR SEE 4020 |
1 | |
| *-3 | XJBN-00002 | GEAR PUMP SEE 4030 |
1 | |
| *-3 | XJBN-00520 | GEAR PUMP SEE 4030 |
1 | |
| *-3 | XJBN-00847 | GEAR PUMP SEE 4030 |
1 | |
| *-4 | XJBN-00014 | CASING ASSY-EPPR VLV SEE 4010 |
1 | |
| *-4 | XJBN-00382 | EPPR VALVE ASSY SEE 4041 |
1 | |
| 011 | XJBN-00003 | PISTON SUB ASSY SEE ILLUST |
2 | |
| 013 | XJBN-00006 | CYLINDER ASSY-RH SEE ILLUST |
1 | |
| 014 | XJBN-00009 | CYLINDER ASSY-LH SEE ILLUST |
1 | |
| 030 | XJBN-00011 | SWASH PLATE ASSY SEE ILLUST |
2 | |
| 530 | XJBN-00371 | TILTING PIN ASSY SEE ILLUST |
2 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | 1 |
