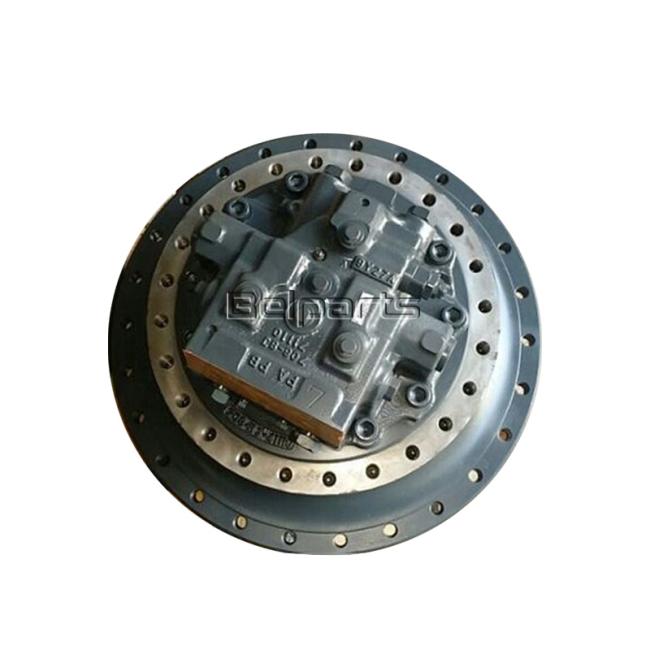

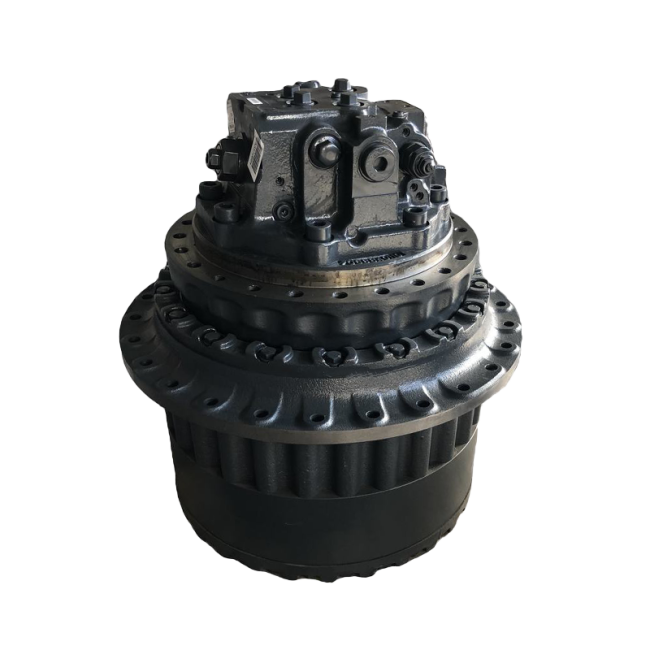

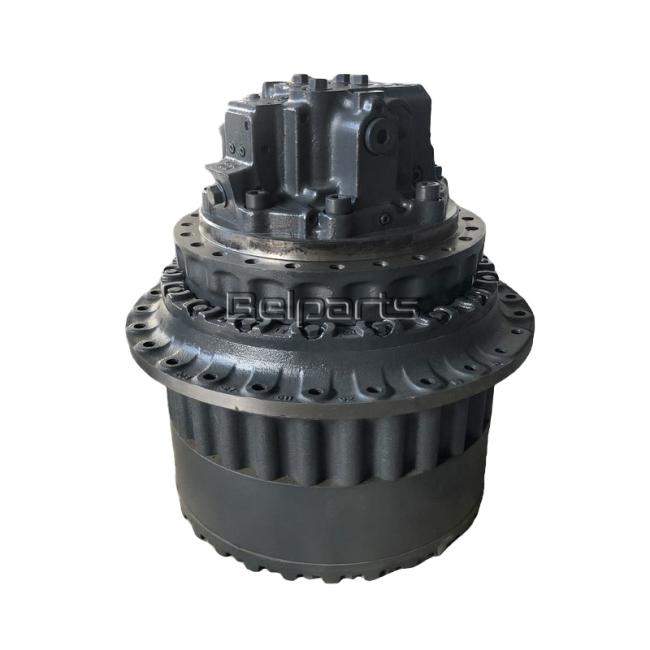

Excavator Travel Motor Assy For Komatsu PC400-7 Final Drive Assy 706-8J-01020 706-8J-01011 706-8J-01012
Belparts Excavator travel motor assy for komatsu PC400-7 final drive assy 706-8J-01020 706-8J-01011 706-8J-01012
Appliion:Excavator machine
Part name:travel motor
Model: PC400-7
Package:56*54*67
Warranty:1 Year
Brand:Belparts
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required
Appliion | Crawler Excavator |
Part name | travel motor |
Part number | 706-8J-01020 706-8J-01011 706-8J-01012 |
Model | PC400-7 |
MOQ | 1PC |
Brand | Belparts |
Delivery | 2 days after the payment received |
Shipment | by sea, by air, by express, or as required |

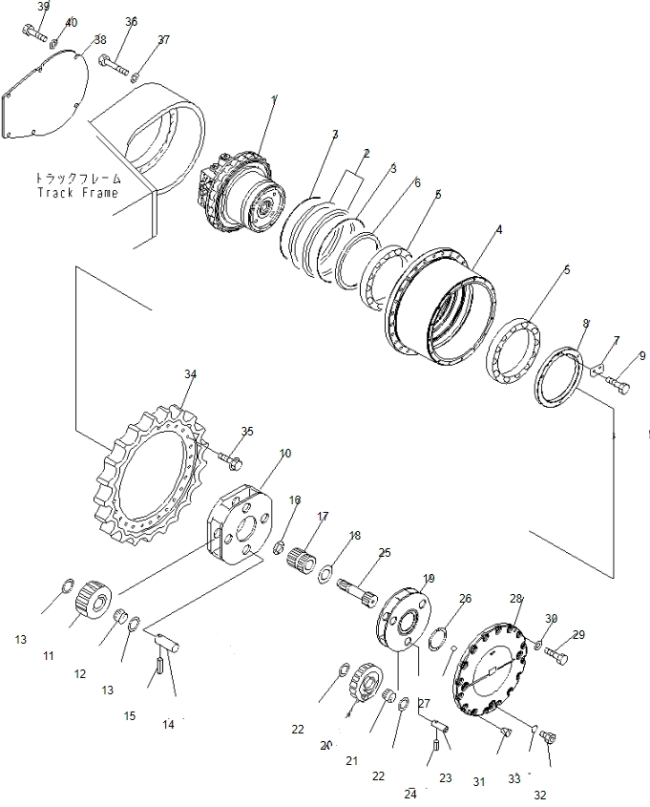

| # | Part No | Part Name | Qty. | Price request |
| 1 | (706-8J-01020) | MOTOR ASS'Y | 2 | |
| 2 | 17M-27-00121 | FLOATING SEAL ASS'Y | 2 | |
| 2 | Ring | 2 | ||
| 3 | O-ring | 2 | ||
| 4 | 208-27-71151 | Gear | 2 | |
| 4 | 208-27-71150 | Gear | 2 | |
| 5 | 208-27-71210 | Bearing | 4 | |
| 6 | 208-27-71310 | COLLAR | 2 | |
| 7 | 208-27-71270 | Lock | 2 | |
| 8 | 208-27-71260 | Lock | 2 | |
| 9 | 01010-81020 | BOLT,(FOR MONO LEVER STEERING) | 4 | |
| 10 | 208-27-71170 | Carrier | 2 | |
| 11 | 208-27-71140 | Gear | 8 | |
| 12 | 208-27-71710 | Bearing | 8 | |
| 13 | 21M-27-11260 | THRUST WASHER | 16 | |
| 14 | 208-27-71250 | Pin | 8 | |
| 15 | 20Y-27-21290 | Pin | 8 | |
| 16 | 207-27-52270 | Spacer | 2 | |
| 17 | 208-27-71130 | Gear | 2 | |
| 18 | 208-27-71290 | Spacer | 2 | |
| 19 | 208-27-71160 | Carrier | 2 | |
| 20 | 208-27-71120 | Gear | 6 | |
| 21 | 208-27-71720 | Bearing | 6 | |
| 22 | 20Y-27-21250 | WASHER,THRUST | 12 | |
| 23 | 21M-27-11240 | Pin | 6 | |
| 24 | 20Y-27-21280 | Pin | 6 | |
| 25 | 208-27-71112 | Shaft | 2 | |
| 26 | 20Y-27-11250 | Spacer | 2 | |
| 27 | 04260-01905 | Ball | 2 | |
| 28 | 208-27-71183 | Cover | 2 | |
| 28 | 208-27-71182 | Cover | 2 | |
| 29 | 01010-81235 | BOLT, MOUNT GROUND DRIVEN STEERING PUMP | 32 | |
| 30 | 01643-31232 | WASHER,(NOT USED WITH EMERGENCY STR.) | 32 | |
| 31 | 07049-01215 | PLUG,(FOR ROPS SWEEP) (WITHOUT CAB) | 4 | |
| 32 | 20Y-27-31190 | Plug | 6 | |
| 33 | 07002-52434 | O-RING,(-50 DEG. SPEC.) | 6 | |
| 34 | 208-27-61210 | SPROCKET | 2 | |
| 35 | 207-27-51311 | Bolt | 52 | |
| 36 | 01011-82000 | CAPSCREW | 48 | |
| 37 | 01643-32060 | FLAT WASHER - M20 (HARDENED) | 48 | |
| 38 | 208-30-71241 | Cover | 2 | |
| 39 | 01010-81640 | BOLT,(FOR SLAG HANDLING) (FOR USA) | 12 | |
| 40 | 01643-31645 | WASHER,(FOR TRAVEL MOTOR) (NOT SHOW) | 12 |
