Belparts Excavator Travel Motor Assy For Hitachi Zx330 Zx350 Zx360 Final Drive Assy 9190221 9212584 9190222 9232360
Price:
Negotiable price
MOQ:
1 piece
Delivery Time:
1-7days
Brand:
Belparts
Product Description

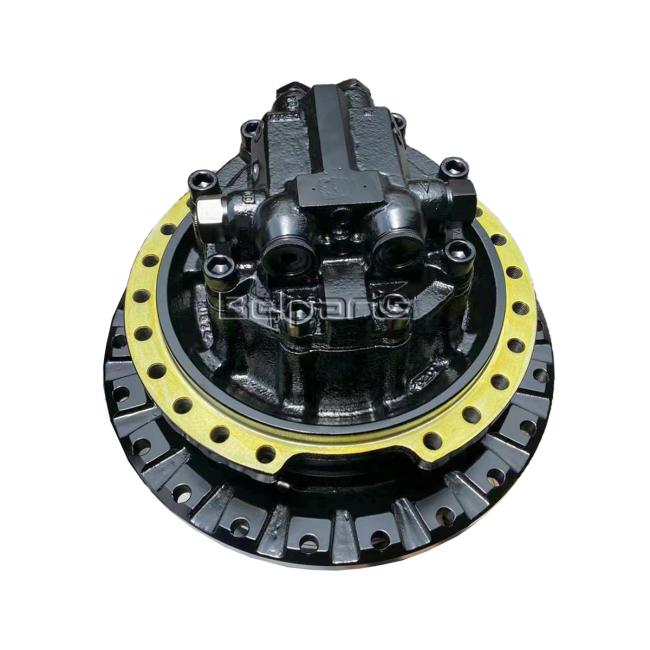

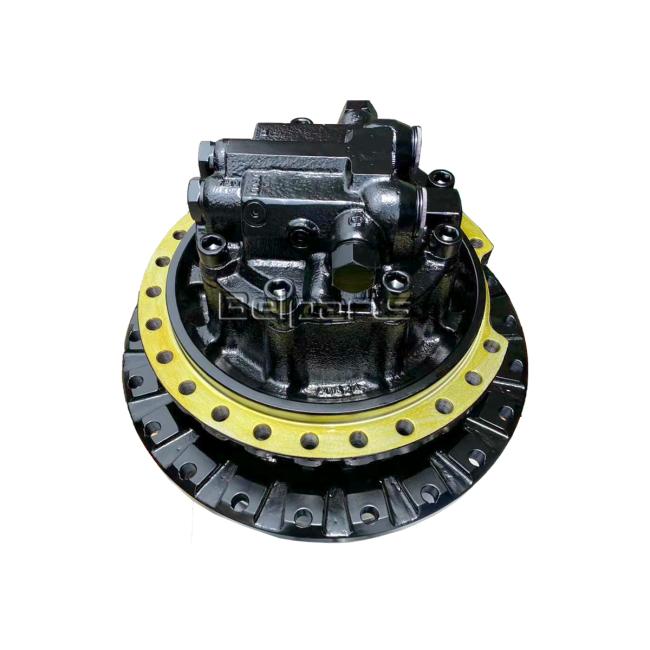

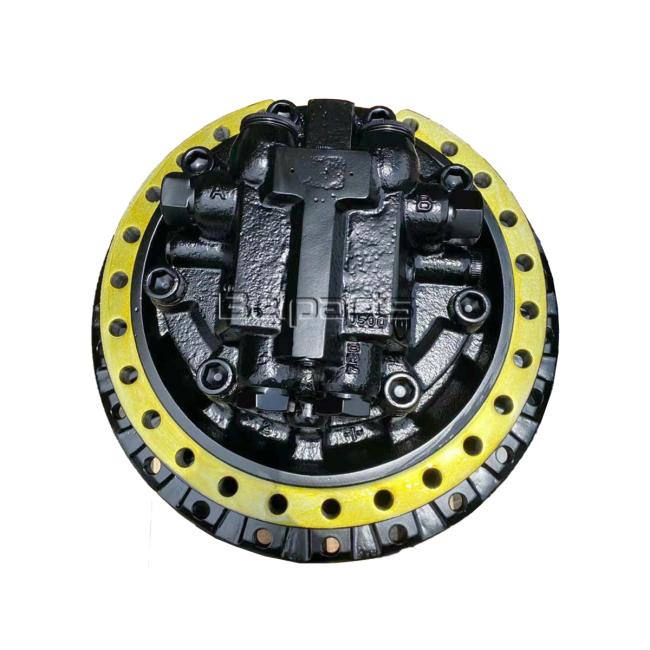

Belparts Excavator travel motor assy for hitachi zx330 zx350 zx360 final drive assy 9190221 9212584 9190222 9232360

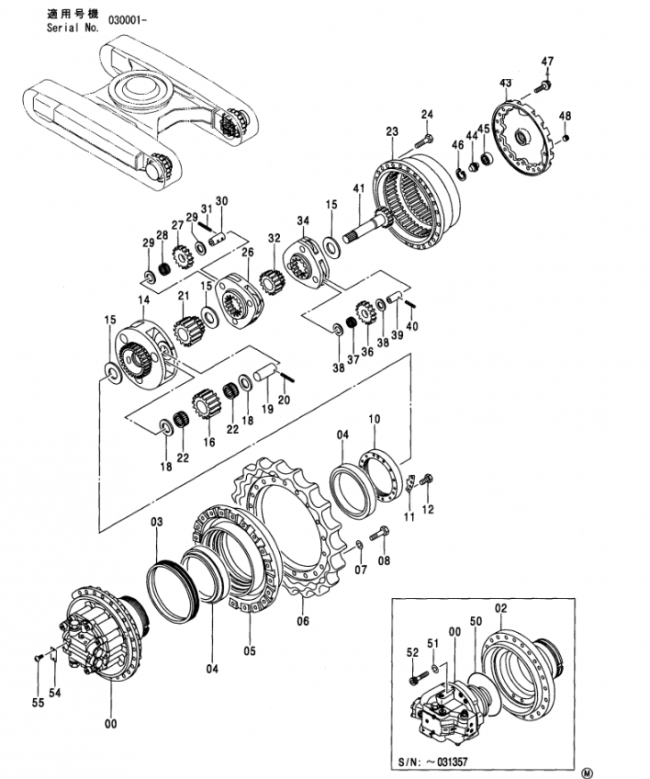

| # | Part No | Part Name | Qty. | Price request |
| 9190221 | TRAVEL DEVICE | 2 | ||
| 9212584 | TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) | 2 | ||
| 9190222 | TRAVEL DEVICE | 2 | ||
| 9232360 | TRAVEL DEVICE (FOR TRANSPORTATION) | 2 | ||
| 00 | 9190296 | . MOTOR; OIL | 1 | |
| 00 | 9213431 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | 9195488 | . MOTOR; OIL | 1 | |
| 00 | 9231673 | . MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 02 | 1022194 | . HOUSING | 1 | |
| 03 | 4066695 | . SEAL; GROUP | 1 | |
| 04 | 4192975 | . BRG.; ROL. | 2 | |
| 05 | 1022179 | . DRUM | 1 | |
| 06 | 1022168 | . SPROCKET | 1 | |
| 07 | A590920 | . WASHER; SPRING | 20 | |
| 08 | J932060 | . BOLT | 20 | |
| 10 | 3036256 | . NUT | 1 | |
| 10 | 3094717 | . NUT | 1 | |
| 11 | 4192974 | . PLATE; LOCK | 1 | |
| 11 | 4470326 | . PLATE; LOCK | 1 | |
| 12 | J901222 | . BOLT | 2 | |
| 12 | J901225 | . BOLT | 2 | |
| 14 | 1022198 | . CARRIER | 1 | |
| 15 | 4401293 | . SPACER | 3 | |
| 16 | 3075003 | . GEAR; PLANETARY | 3 | |
| 18 | 4269470 | . PLATE; THRUST | 6 | |
| 19 | 4269452 | . PIN | 3 | |
| 20 | 4192021 | . PIN; SPRING | 3 | |
| 21 | 3075005 | . GEAR; SUN | 1 | |
| 22 | 4455088 | . BRG.; NEEDLE | 6 | |
| 23 | 1022195 | . GEAR; RING | 1 | |
| 24 | J931640 | . BOLT | 28 | |
| 26 | 1022197 | . CARRIER | 1 | |
| 27 | 3075002 | . GEAR; PLANETARY | 3 | |
| 28 | 4455099 | . BRG.; NEEDLE | 3 | |
| 29 | 4284521 | . PLATE; THRUST | 6 | |
| 30 | 4269451 | . PIN | 3 | |
| 31 | 4197763 | . PIN; SPRING | 3 | |
| 32 | 3074989 | . GEAR; SUN | 1 | |
| 34 | 1022196 | . CARRIER | 1 | |
| 36 | 3075001 | . GEAR; PLANETARY | 3 | |
| 37 | 4455098 | . BRG.; NEEDLE | 3 | |
| 38 | 4284520 | . PLATE; THRUST | 6 | |
| 39 | 4269472 | . PIN | 3 | |
| 40 | 4192020 | . PIN; SPRING | 3 | |
| 41 | 2038915 | . SHAFT; PROP. | 1 | |
| 41 | 2048000 | . SHAFT; PROP. | 1 | |
| 43 | 2045031 | . COVER | 1 | |
| 44 | 4277474 | . PIN; STOPPER | 1 | |
| 45 | 4278168 | . BRG.; BALL | 1 | |
| 46 | 930451 | . RING; RETAINING | 1 | |
| 47 | J011230 | . BOLT; SEMS | 16 | |
| 47 | 4609016 | . BOLT; SEMS | 16 | |
| 48 | 4245797 | . PLUG | 3 | |
| 50 | 4269473 | . O-RING | 1 | |
| 51 | 4287213 | . WASHER; SPRING | 4 | |
| 52 | M341885 | . BOLT; SOCKET | 4 | |
| 54 | 3053559 | . NAME-PLATE | 1 | |
| 55 | M492564 | . SCREW; DRIVE | 2 |
Company Information
GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox. Our products have been exported to more than 100 countries and regions.
