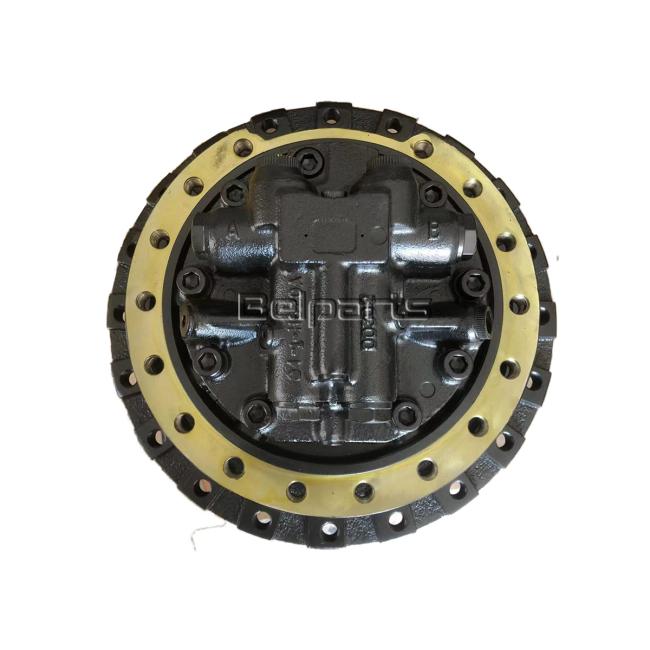

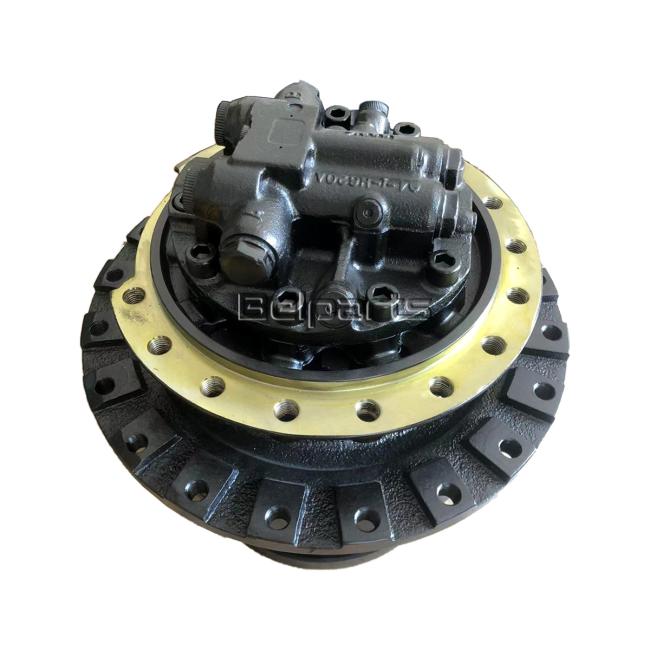

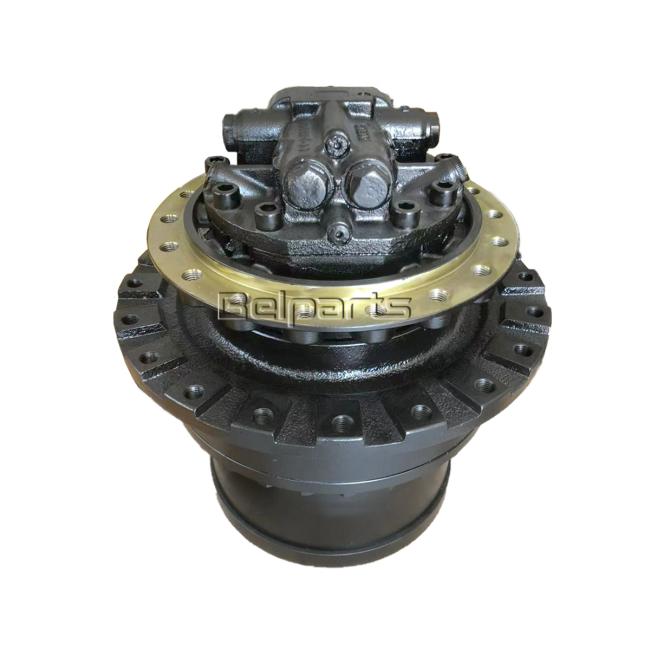

Excavator Travel Motor Assy For Hitachi ZX200 ZX210 ZX230 ZX240 Final Drive Assy 9170996 9233687 9195447
Belparts Excavator travel motor assy for hitachi ZX200 ZX210 ZX230 ZX240 final drive assy 9170996 9233687 9195447
Appliion:Excavator machine
Part name:travel motor
Model: ZX200 ZX210 ZX230 ZX240
Package:56*54*67
Warranty:1 Year
Brand:Belparts
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required

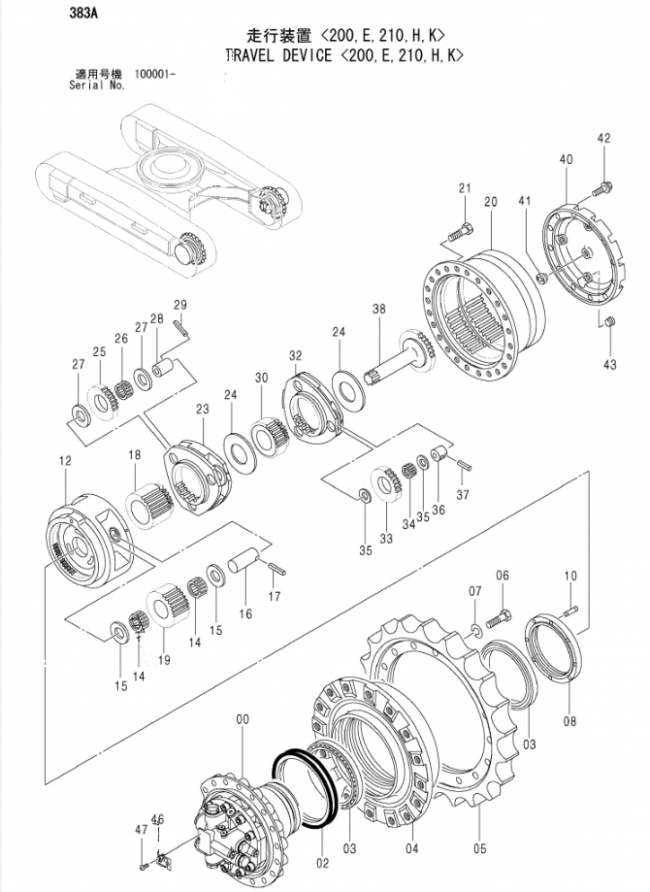

| # | Part No | Part Name | Qty. | Price request |
| 9170996 | TRAVEL DEVICE | 2 | ||
| 9233687 | TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) | 2 | ||
| 9195447 | TRAVEL DEVICE | 2 | ||
| 9233688 | TRAVEL DEVICE (FOR TRANSPORTATION) | 2 | ||
| 00 | 9168003 | . MOTOR; OIL | 1 | |
| 00 | 9234034 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | 9195451 | . MOTOR; OIL | 1 | |
| 00 | 9237802 | . MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 02 | 4114753 | . SEAL; GROUP | 1 | |
| 02 | 4634693 | . SEAL; GROUP | 1 | |
| 03 | 4246793 | . BRG.; ROL. | 2 | |
| 04 | 1025833 | . DRUM | 1 | |
| 05 | 1018740 | . SPROCKET | 1 | |
| 06 | J932055 | . BOLT | 16 | |
| 07 | A590920 | . WASHER; SPRING | 16 | |
| 08 | 3086531 | . NUT | 1 | |
| 10 | 4436242 | . PIN; KNOCK | 1 | |
| 12 | 1025875 | . CARRIER | 1 | |
| 14 | 4438593 | . BRG.; NEEDLE | 6 | |
| 15 | 4284521 | . PLATE; THRUST | 6 | |
| 16 | 4315838 | . PIN | 3 | |
| 17 | 4116309 | . PIN; SPRING | 3 | |
| 18 | 3082156 | . GEAR; SUN | 1 | |
| 19 | 3084353 | . GEAR; PLANETARY | 3 | |
| 20 | 1025787 | . GEAR; RING | 1 | |
| 21 | J931640 | . BOLT | 24 | |
| 23 | 2042432 | . CARRIER | 1 | |
| 24 | 4401293 | . SPACER | 2 | |
| 25 | 3082155 | . GEAR; PLANETARY | 3 | |
| 26 | 4438592 | . BRG.; NEEDLE | 3 | |
| 27 | 4192982 | . PLATE; THRUST | 6 | |
| 28 | 4402086 | . PIN | 3 | |
| 29 | 4192020 | . PIN; SPRING | 3 | |
| 30 | 3082149 | . GEAR; SUN | 1 | |
| 32 | 1025826 | . CARRIER | 1 | |
| 33 | 3082148 | . GEAR; PLANETARY | 3 | |
| 34 | 4387383 | . BRG.; NEEDLE | 3 | |
| 35 | 4192910 | . PLATE; THRUST | 6 | |
| 36 | 4210853 | . PIN | 3 | |
| 37 | 4173093 | . PIN; SPRING | 3 | |
| 38 | 2042351 | . SHAFT; PROP. | 1 | |
| 38 | 2049585 | . SHAFT; PROP. | 1 | |
| 40 | 2034833 | . COVER | 1 | |
| 41 | 4285323 | . PIN; STOPPER | 1 | |
| 41 | 4478346 | . PIN; STOPPER | 1 | |
| 42 | J011230 | . BOLT; SEMS | 12 | |
| 42 | 4609016 | . BOLT; SEMS | 12 | |
| 43 | 4245797 | . PLUG | 3 | |
| 46 | 3053559 | . NAME-PLATE | 1 | |
| 47 | M492564 | . SCREW; DRIVE | 2 |
