Belparts Excavator Travel Motor Assy For Hitachi ZX870 ZX890 Final Drive Assy 9251681 9254461
Price:
Negotiable price
MOQ:
1 piece
Delivery Time:
1-7days
Brand:
Belparts
Product Description

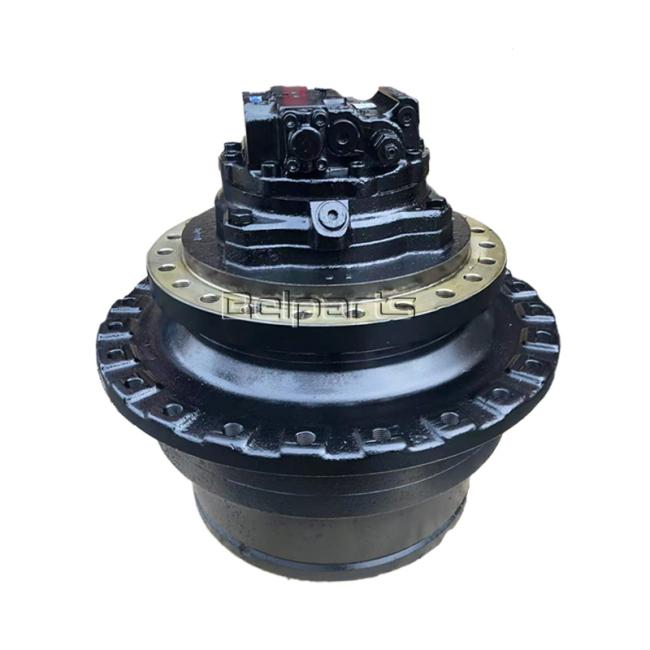

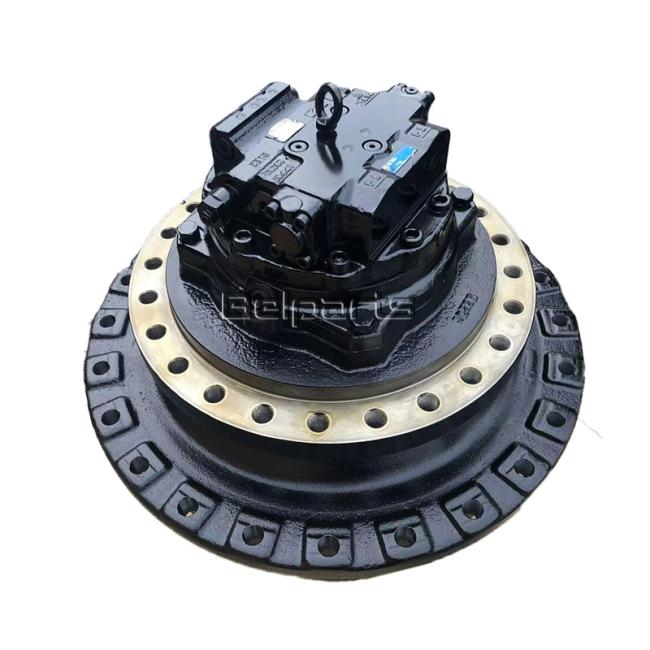

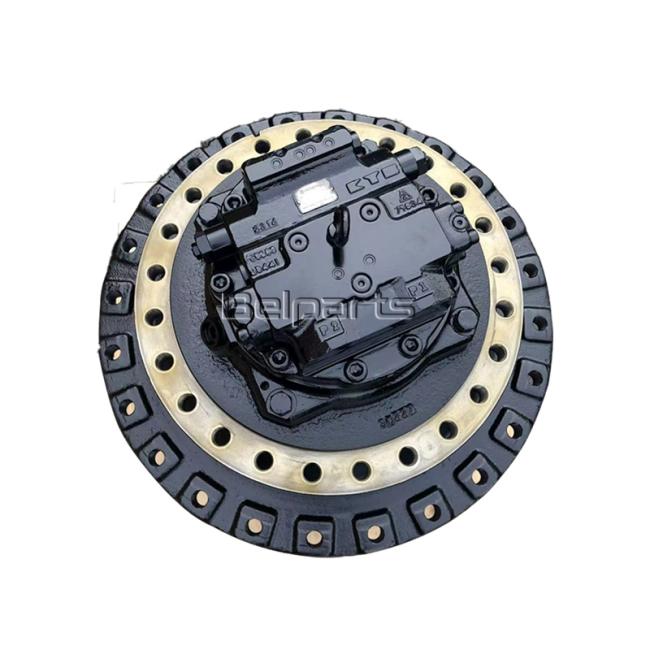

Belparts Excavator travel motor assy for hitachi ZX870 ZX890 final drive assy 9251681 9254461

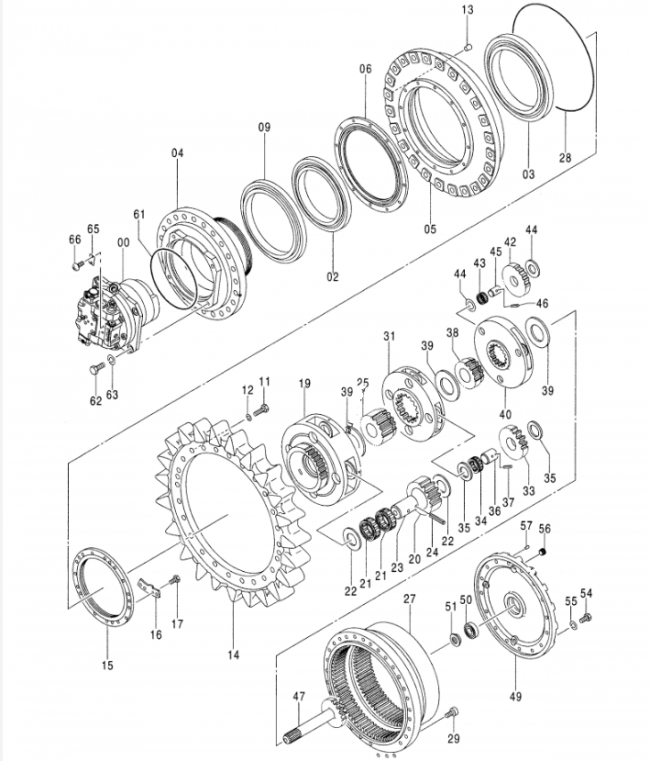

| # | Part No | Part Name | Qty. | Price request |
| 9251681 | TRAVEL DEVICE | 2 | ||
| 00 | 4636857 | . MOTOR; OIL | 1 | |
| 02 | 4219329 | . BRG.; ROL. | 1 | |
| 03 | 4219328 | . BRG.; ROL. | 1 | |
| 04 | 1030160 | . HOUSING | 1 | |
| 05 | 1012131 | . DRUM | 1 | |
| 06 | 2025832 | . SUPPORT | 1 | |
| 09 | 4245703 | . SEAL; GROUP | 1 | |
| 11 | J932785 | . BOLT | 24 | |
| 12 | A590927 | . WASHER; SPRING | 24 | |
| 13 | 425175 | . CORK | 2 | |
| 14 | 4430291 | . SPROCKET | 1 | |
| 15 | 3069875 | . NUT | 1 | |
| 16 | 3041462 | . PLATE; LOCK | 1 | |
| 17 | J901225 | . BOLT | 2 | |
| 19 | 1028874 | . CARRIER | 1 | |
| 20 | 3090709 | . GEAR; PLANETARY | 4 | |
| 21 | 4464369 | . BRG.; NEEDLE | 8 | |
| 22 | 4219640 | . PLATE; THRUST | 8 | |
| 23 | 4447037 | . PIN | 4 | |
| 24 | 4222029 | . PIN; SPRING | 4 | |
| 25 | 3090710 | . GEAR; SUN | 1 | |
| 27 | 1028886 | . GEAR; RING | 1 | |
| 28 | 4223568 | . O-RING | 1 | |
| 29 | M342260 | . BOLT; SOCKET | 30 | |
| 31 | 1028881 | . CARRIER | 1 | |
| 33 | 3090930 | . GEAR; PLANETARY | 4 | |
| 34 | 4455088 | . BRG.; NEEDLE | 4 | |
| 35 | 4269470 | . PLATE; THRUST | 8 | |
| 36 | 4447032 | . PIN | 4 | |
| 37 | 4203180 | . PIN; SPRING | 4 | |
| 38 | 3090711 | . GEAR; SUN | 1 | |
| 39 | 4657080 | . SPACER | 3 | |
| 40 | 1028898 | . CARRIER | 1 | |
| 42 | 3089538 | . GEAR; PLANETARY | 3 | |
| 43 | 4445529 | . BRG.; NEEDLE | 3 | |
| 44 | 4210851 | . PLATE; THRUST | 6 | |
| 45 | 4309995 | . PIN | 3 | |
| 46 | 4246358 | . PIN; SPRING | 3 | |
| 47 | 2045895 | . SHAFT; PROP. | 1 | |
| 49 | 1028899 | . COVER | 1 | |
| 50 | 4284195 | . BRG.; BALL | 1 | |
| 51 | 4277474 | . PIN; STOPPER | 1 | |
| 54 | 4257967 | . BOLT; SHOE | 18 | |
| 55 | A590914 | . WASHER; SPRING | 18 | |
| 56 | 4462824 | . PLUG | 3 | |
| 57 | 429597 | . CORK | 2 | |
| 61 | 4271596 | . O-RING | 1 | |
| 62 | J911860 | . BOLT | 4 | |
| 63 | A590918 | . WASHER; SPRING | 4 | |
| 65 | . NAME-PLATE | 1 | ||
| 66 | M492564 | . SCREW; DRIVE | 2 |
