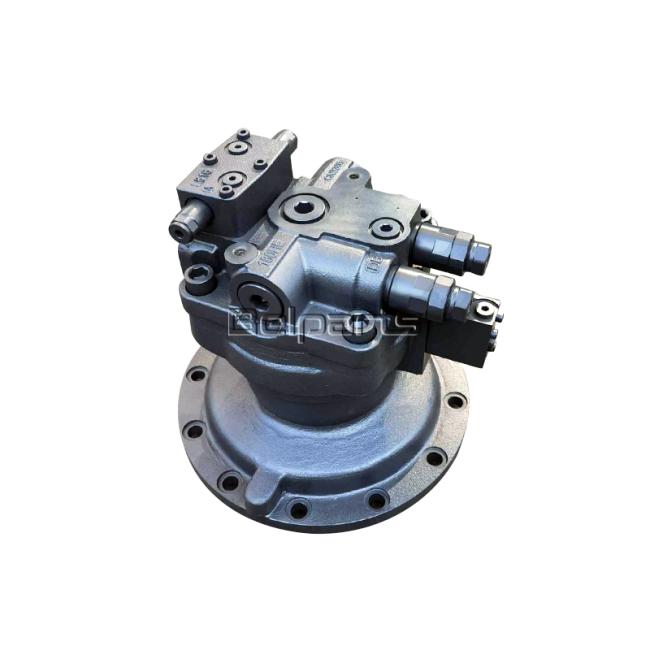

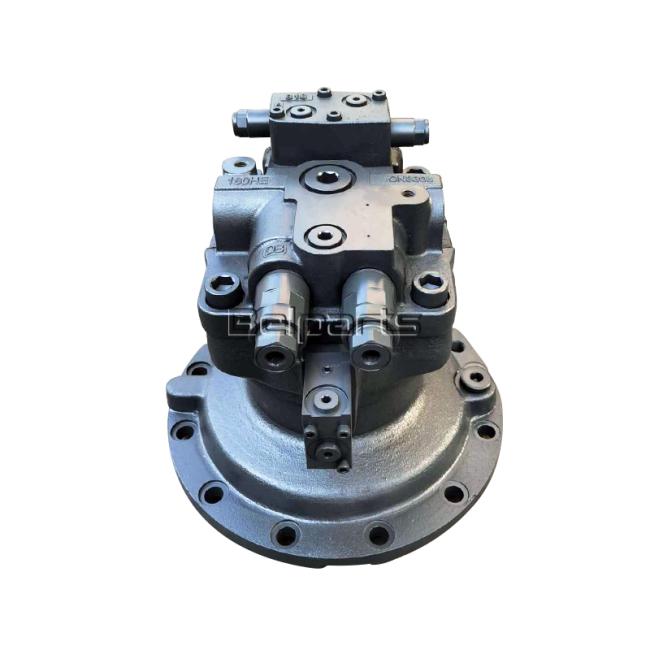

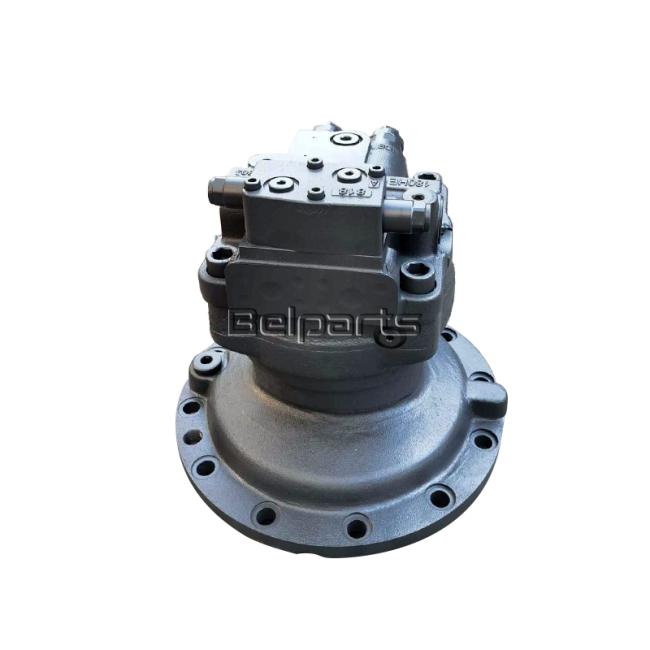

Swing Motor Assy EC290C Hydraulic Spare Parts M2X170CHB-15A-25 14550095 1142-00651

Name: Swing Motor Assy EC290C Hydraulic Spare Parts M2X170CHB-15A-25 14550095 1142-00651
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED

Price Negotiable

Price: Negotiable price

MOQ: 1 piece

Delivery Time: 1-7days

Brand: Belparts

Product Description

Belparts Swing Motor EC290C Hydraulic Spare Parts M2X170CHB-15A-25 14550095 1142-00651

Appliion:Excavator
Part name:swing motor
Material:Steel
Model:EC290C
Part number:1142-00651 14550095
Payment term:37*36*52
Delivery:56KG
Brand:Belparts

Appliion	Excavator
Part name	swing motor
Material	Steel
Model	EC290C
Part number	1142-00651 14550095
Payment term	373652
Delivery	56KG
Brand	Belparts

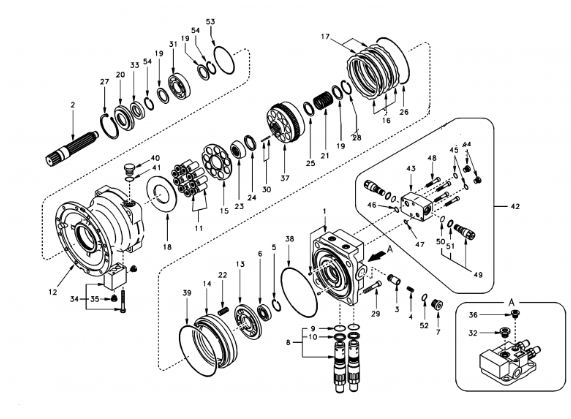

#	Part No	Part Name	Qty.	Price request
#	Part No	Part Name	DG00A001
	SA 1142-00651	Swing Motor more	1
1	VOE 14501795	Casing	1
	VOE 14501796	Casing	1
	SA 8230-25950	Spring Pin	2
2	VOE 14501797	Shaft	1
3	VOE 14501798	Plunger more	2
4	VOE 14501799	Spring more	2
5	VOE 14501800	Ring	1
6	VOE 14501801	Bearing	1
7	VOE 14501802	Plug more	2
8	VOE 14518516 Replace: SA 8230-27400	Relief valve	2
9	SA 9511-22030	O-ring more	1
10	SA 9566-20300	Ring more	1
11	VOE 14502142	Piston	9
	VOE 14501793	Piston	1
	VOE 14501794	Seat	1
12	SA 8230-13610	Casing	1
13	SA 8230-13760	Plate	1
14	SA 8230-13820	Piston	1
15	SA 8230-13900	Plate	1
16	SA 8230-13910	Plate	3
17	SA 8230-13940	Friction Plate	2
18	SA 8230-13980	Brake Shoe	1
19	SA 8230-14010	Spacer	3
20	SA 8230-14020	Cover	1
21	SA 8230-14030	Spring	1
22	SA 8230-14040	Spring	20
23	SA 8230-14050	Bushing	1
24	SA 8230-14060	Spacer	1
25	SA 8230-14070	Spacer	1
26	SA 8230-25551	O-ring	1
27	SA 8230-25690	Ring	1
28	SA 8230-25740	Ring	1
29	SA 8230-25820	Bolt	4
30	SA 8230-26390	Bar	12
31	SA 8230-26650	Roller Bearing	1
32	SA 8230-26910	Plug more	1
33	SA 8220-15000	Seal	1
34	SA 8230-13440	Valve more	1
35	SA 8230-33690	Plug more	2
36	SA 8230-30430	Plug more	1
37	SA 8230-32950	Cylinder	1
38	SA 8230-32990	O-ring	1
39	SA 8240-14980	O-ring	1
40	SA 9415-11021	Plug more	1
41	SA 9511-12011	O-ring more	1
42	SA 8230-27360	Block more	1
43	SA 8230-29070	Casing more	1
44	SA 8230-25640	Plug more	2
45	SA 9511-12011	O-ring more	2
46	SA 9511-12012	O-ring more	2
47	SA 9511-12006	O-ring more	2
48	SA 8240-03610	Screw more	4
49	VOE 14500037	Valve	2
50	SA 9511-12020	O-ring more	1
51	SA 9566-10200	Ring	1
52	SA 9511-12034	O-ring more	2
53	SA 9511-22100	O-ring more	1
54	SA 9541-01045	Snap Ring more	2
100	VOE 14501803	Sealing Kit	1

Processing&Testing

Delivery

1.Outside packing: standard export carton packing;
2.According to orders, pack the spare parts one by one in a small plastic bag;
3.Put them into small carton boxes one by one;
4.Put the packed small carton boxes into bigger carton boxes one by one;
5.Put the bigger carton boxes into wooden boxes if necessary especially for
the shipments by sea.
