Belparts Excavator Main Pump SBS80 E312D E315D Hydraulic Pump 1057322 4I7359 3117405
Price:
Negotiated price
MOQ:
1PCS
Delivery Time:
1~7 days
Brand:
Belparts
Product Description

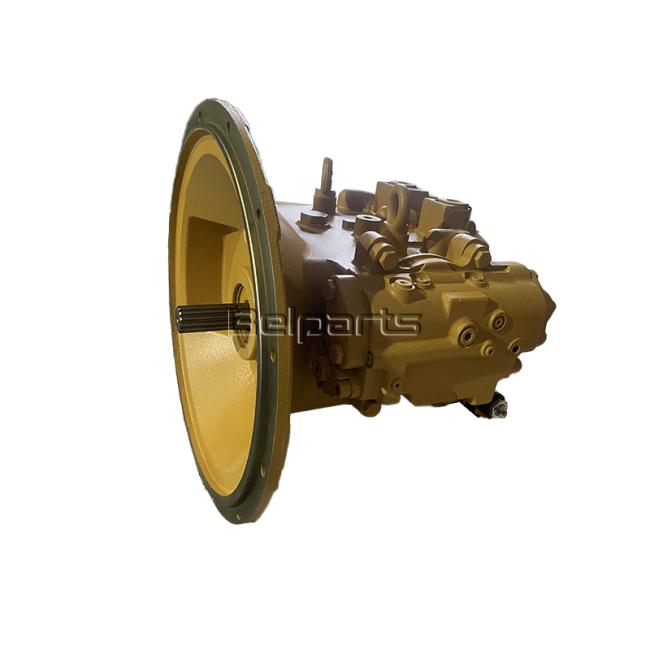

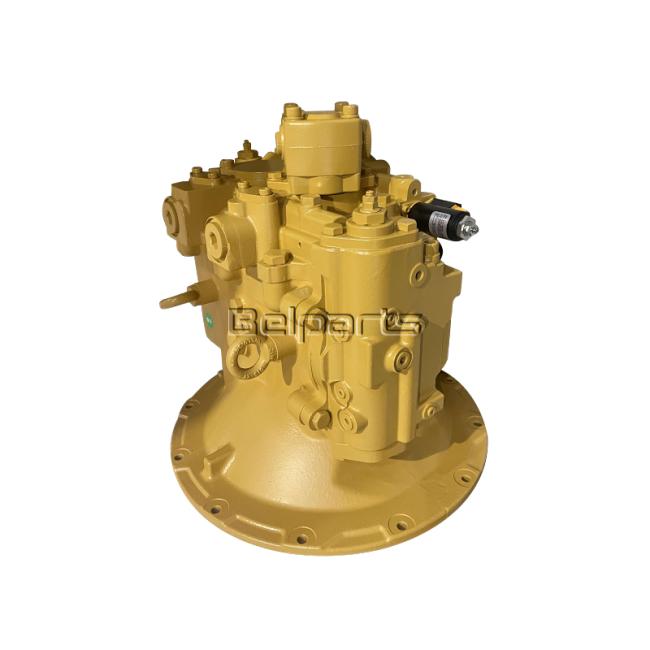

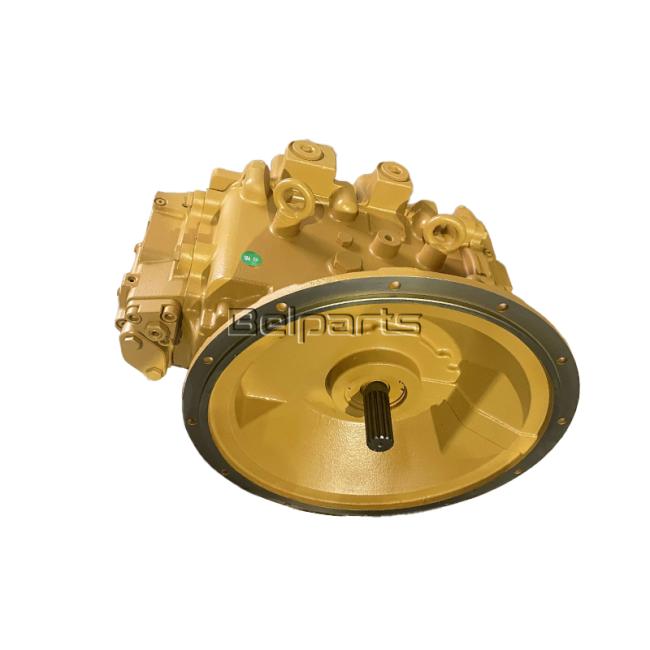

Belparts excavator main pump SBS80 E312D E315D hydraulic pump 1057322 4I7359 3117405
Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:SBS80 E312D E315D
Part number:1057322 4I7359 3117405
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require
| Appliion | Crawler excavator |
| Part name | Hydraulic Main Pump |
| Model | SBS80 E312D E315D |
| Part number | 1057322 4I7359 3117405 |
| Warranty | 3-12 months |
| Payment term | T/T, Trade Assurance, Paypal and etc. |
| Brand | Hitachi or as require |
| Part No | Part Name | Price request | ||
| 3117405 | PUMP GROUP-MAIN HYDRAULIC | |||
| # | Part No | Part Name | Qty. | Price request |
| 1 | 1119916 | VALVE GROUP-SOLENOID -GRAPPLE SIGNAL-GROUND SAW, GRAPPLE CONTROL | 1 | |
| 2 | 1652793 | RETAINER | 2 | |
| 3 | 1652801 | BEARING-ROLLER | 2 | |
| 4 | 1652802 | SEAL-LIP TYPE | 1 | |
| 5 | 1652804 | FLANGE | 1 | |
| 6 | 1652805 | BLOCK | 2 | |
| 7 | 1653838 | BARREL AS (.20MM THK) | 1 | |
| 8 | 1653839 | BARREL AS | 1 | |
| 9 | 1653847 | PISTON AS | 18 | |
| 10 | 1653853 | COVER | 1 | |
| 11 | 1731203 | PUMP GROUP-GEAR (PILOT) | 1 | |
| 3278740 | KIT-SEAL (GEAR PUMP) | 1 | ||
| (INCLUDES RING, GASKET & SEALS) | ||||
| 12 | 1768131 | SPACER-SPECIAL | 2 | |
| 13 | 1768132 | BEARING | 2 | |
| 14 | 1904896 | PLUG | 2 | |
| 15 | 1920573 | PIN-DOWEL | 4 | |
| 16 | 1990518 | SEAL (ID=6.80mm) | 2 | |
| 17 | 2072985 | ORIFICE | 2 | |
| 18 | 2256216 | GASKET | 1 | |
| 19 | 2671628 | SHAFT-DRIVE | 1 | |
| 20 | 2671629 | SHAFT-DRIVEN | 1 | |
| 21 | 2678084 | BEARING-NEEDLE | 2 | |
| 22 | 2678088 | HEAD GROUP-PUMP | 2 | |
| 23 | 2686263 | CAM | 2 | |
| 24 | 2686265 | PLATE | 1 | |
| 25 | 2692433 | BEARING-CRADLE | 4 | |
| 26 | 2829192 | CASE-FLANGE | 1 | |
| 27 | 2985732 | RETAINER-BALL | 2 | |
| 28 | 3117407 | BLOCK-PORT | 1 | |
| 29 | 9S4191 | PLUG,MACHINE THREAD FUEL INJECTION PUMP | 3 | |
| 30 | 0941875 | PIN, ROLLER | 6 | |
| 31 | 0941882 | PLUG, TAPERED | 12 | |
| 32 | 0951663 | SEAL-O-RING (ID=54.40mm) | 1 | |
| 34 | 1652799 | SPRING | 12 | |
| 35 | 1899763 | SEAL (13.6mm OD) | 4 | |
| 36 | 1H7339 | PACKING,PREFORMED COVER PART OF KIT P/N 4J9280 | 1 | |
| 37 | 1J6472 | RING-RETAINING (99.9MM OD) | 2 | |
| 38 | 2738320 | SEAL-O-RING | 1 | |
| 39 | 3J1907 | SEAL VALVE ASSEMBLY TO SEAL- TUBE ASSEMBLY TO LOGIC VALVE | 3 | |
| 40 | 6V8144 | RING-RETAINING | 2 | |
| 41 | 7I2272 | BOLT (M5X0.8X12-MM) | 2 | |
| 42 | 7X2553 | BOLT-PLT (M16 X 2.0 X 40) | 5 | |
| 43 | 7X2556 | BOLT-PLT (M16 X 2.0 X 100) | 1 | |
| 44 | 8C3338 | DOWEL | 4 | |
| 45 | 8T4121 | WASHER-HARD (11X21X2.5-MM THK)(M10X1.50X30MM) | 2 | |
| 46 | 8T4136 | CAPSCREW (HEX HD) (M10 X 1.50 X 25L GR 10.9) | 2 | |
| 47 | 8T4137 | BOLT (M10X1.50X20MM) | 2 | |
| 48 | 8T4139 | CAPSCREW (HEX HD) (M12 X 1.75 X 30L GR 10.9) | 8 | |
| 49 | 8T4140 | BOLT-PLT (M16 X 2.0 X 60) | 2 | |
| 50 | 8T4185 | BOLT (M10X1.5X50MM) (M10X1.5X50-MM) | 4 | |
| 51 | 8T7547 | BOLT (M8X1.25X30MM) (M8X1.25X30-MM) | 4 | |
| 52 | 8T9599 | RING-RETAINING | 1 | |
