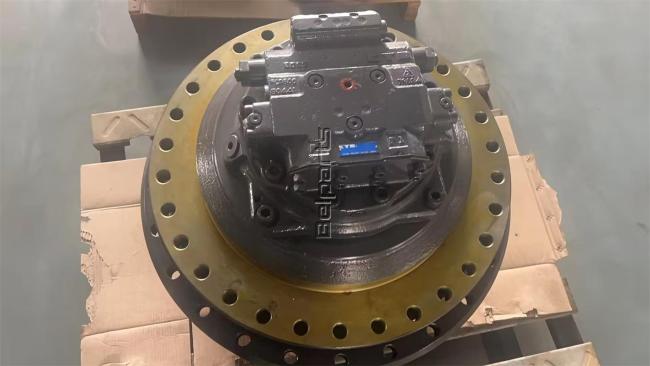

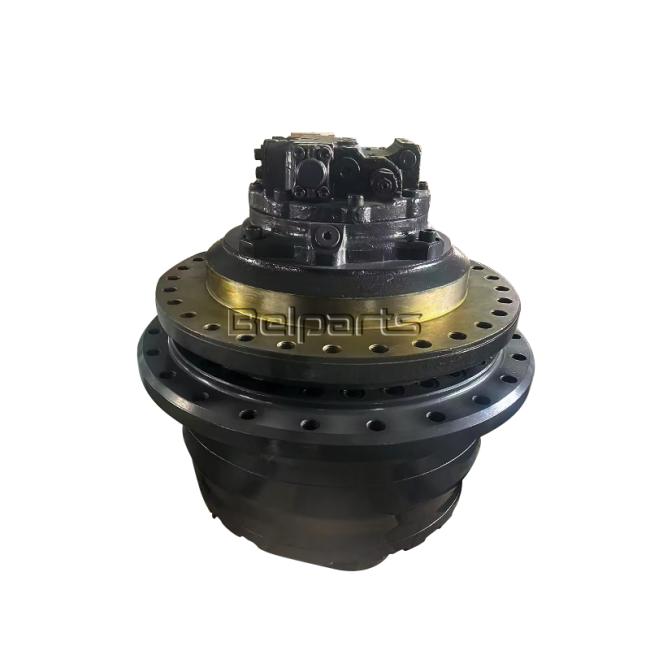

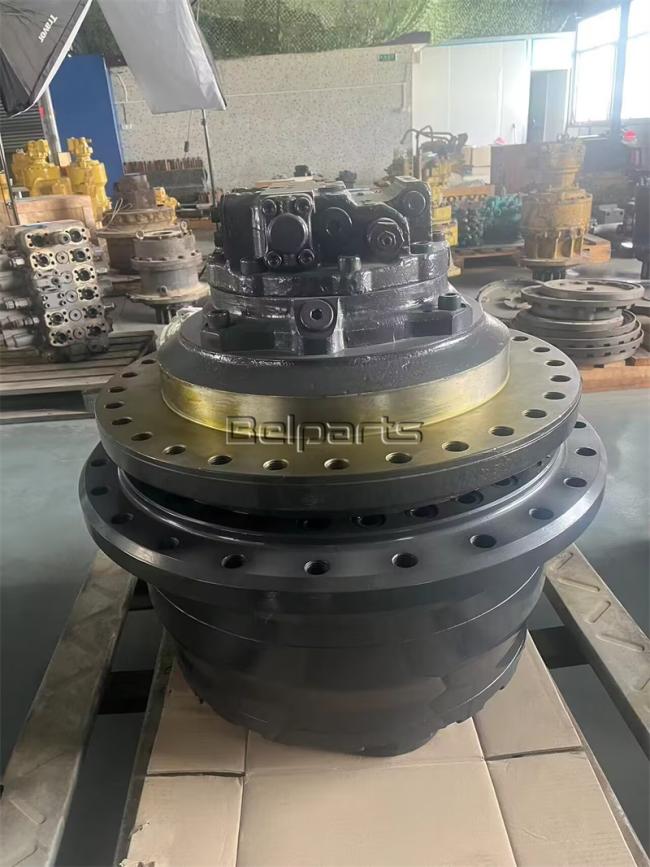

Belparts Excavator Travel Motor Assy CX800 Final Drive KUP10150 KUA0282 KUA10540
Belparts Excavator Travel Motor Assy CX800 Final Drive KUP10150 KUA0282 KUA10540
Appliion:Excavator machine
Part name:travelling motors assy
Model: CX800
Package:56*54*67
Warranty:1 Year
Brand:Belparts
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required
|
Appliion |
Crawler Excavator |
|
Part name |
final drive |
|
Part number |
KUP10150 KUA0282 KUA10540 |
|
Model |
CX800 |
|
MOQ |
1PC |
|
Brand |
Belparts |
|
Delivery |
2 days after the payment received |
|
Shipment |
by sea, by air, by express, or as required |

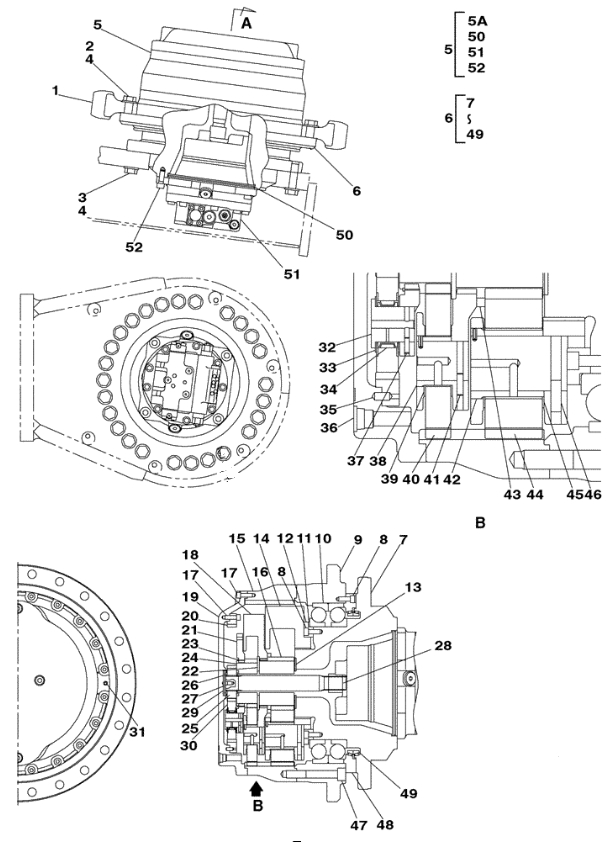

| # | Part No | Part Name | Qty. | Price request |
| 1 | KUA0044 | SPROCKET | 2 | |
| 2 | 102R027Y090N | BOLT | 48 | |
| 3 | 102R027Y100N | BOLT | 52 | |
| 4 | 157544A1 | WASHER | 100 | |
| 5 | KUA10540 | MOTO-REDUCTION GEAR | 2 | |
| 5A | KUP10150 | REDUCER | 1 | |
| 6 | NSS | NOT SOLD SEPARAT | 1 | |
| 7 | KUP10150 | REDUCER | 1 | |
| 8 | 862-14035 | HEX SOC SCREW,M14 x 35mm, Cl 12.9 | 60 | |
| 9 | KUA0016 | BEARING HOUSING | 1 | |
| 10 | KUA0020 | BEARING, BALL | 2 | |
| 11 | KUA10500 | RETAINER CUP | 1 | |
| 12 | KUP10150 | REDUCER | 1 | |
| 13 | 163918A1 | PLATE | 1 | |
| 14 | KUA10520 | GEAR SET | 1 | |
| 15 | KUA0010 | GEAR, RING | 1 | |
| 16 | KUA0005 | SUN GEAR | 1 | |
| 17 | 862-12035 | HEX SOC SCREW,M12 x 35mm, Cl 12.9 | 32 | |
| 18 | KUA0380 | CARRIER | 1 | |
| 19 | KUA0015 | COVER | 1 | |
| 20 | KUA0009 | GEAR, RING | 1 | |
| 21 | KUA0379 | CARRIER | 1 | |
| 22 | KUA0182 | SUN GEAR | 1 | |
| 23 | 163924A1 | RING | 1 | |
| 24 | KUA0004 | SUN GEAR | 1 | |
| 25 | 163929A1 | SHIM | 1 | |
| 26 | 800-1150 | SNAP RING,M50, Ext | 2 | |
| 27 | 163929A1 | SHIM | 2 | |
| 28 | KUA0279 | GEAR SHAFT | 4 | |
| 29 | KUA10510 | THRUST PLATE | 4 | |
| 30 | KUA0182 | SUN GEAR | 3 | |
| 31 | 152K012Y025B | SET SCREW | 2 | |
| 32 | NSS | NOT SOLD SEPARAT | 3 | |
| 33 | NSS | NOT SOLD SEPARAT | 6 | |
| 34 | NSS | NOT SOLD SEPARAT | 3 | |
| 35 | 151627A1 | PIN | 4 | |
| 36 | 150829A1 | PLUG | 3 | |
| 37 | 163917A1 | PLATE | 3 | |
| 38 | NSS | NOT SOLD SEPARAT | 4 | |
| 39 | NSS | NOT SOLD SEPARAT | 8 | |
| 40 | NSS | NOT SOLD SEPARAT | 4 | |
| 41 | NSS | NOT SOLD SEPARAT | 4 | |
| 42 | NSS | NOT SOLD SEPARAT | 5 | |
| 43 | KUA0027 | PLATE, THRUST | 2 | |
| 44 | NSS | NOT SOLD SEPARAT | 5 | |
| 45 | NSS | NOT SOLD SEPARAT | 10 | |
| 46 | NSS | NOT SOLD SEPARAT | 5 | |
| 47 | 108R024Y160R | BOLT | 30 | |
| 48 | KUA10490 | RETAINER | 1 | |
| 49 | KUA0022 | PACKAGE | 1 | |
| 50 | 151524A1 | O-RING | 2 | |
| 51 | KUA0282 | MOTOR, HYDRAULIC | 2 | |
| 52 | 150807A1 | BOLT,Hex Skt, M18 x 2.5 x 50mm | 8 |
