Belparts Excavator Main Pump PC60-6 PC60L-6 PC70-6 Hydraulic Pump For Komatsu 708-21-04033 708-21-04032 708-21-04031
Belparts Excavator main pump PC60-6 PC60L-6 PC70-6 Hydraulic Pump for komatsu 708-21-04033 708-21-04032 708-21-04031
Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:PC60-6 PC60L-6 PC70-6
Part number:708-21-01011 708-21-01010 708-21-10601 708-1W-00042
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require
| Appliion | Crawler excavator |
| Part name | Hydraulic Main Pump |
| Model | PC60-6 PC60L-6 PC70-6 |
| Part number | 708-21-01011 708-21-01010 708-21-10601 708-1W-00042 |
| Warranty | 3-12 months |
| Payment term | T/T, Trade Assurance, Paypal and etc. |
| Brand | Hitachi or as require |

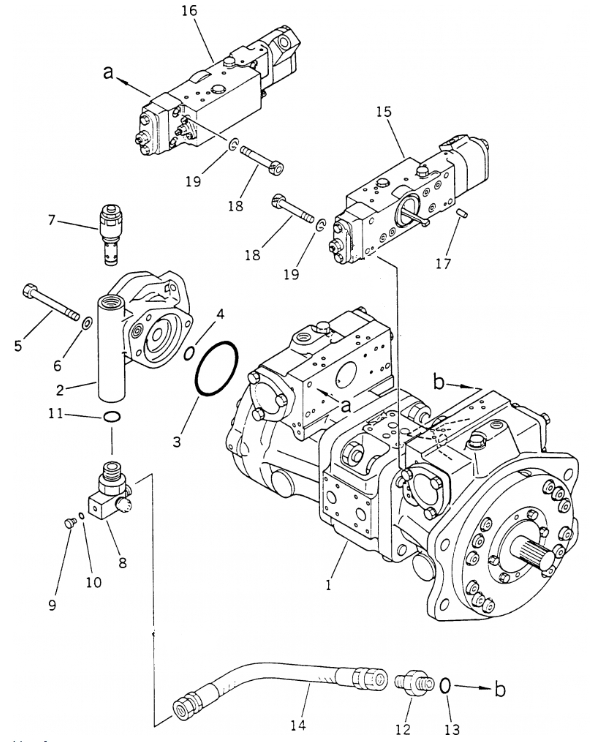

| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-21-04033 | PUMP ASS'Y,(HPV35+35) | 1 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6101 TO 6171 | ||||
| 1 | 708-21-04113 | PUMP SUB ASS'Y | 1 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6101 TO 6115 | ||||
| 2 | (704-24-24410) | PUMP ASS'Y | 1 | |
| 3 | 07000-02085 | O-RING,(WITHOUT FUEL LEVEL GAUGE) | 1 | |
| 4 | 07000-02018 | O-RING,(SEE FIG.1601-29?1602-17) | 1 | |
| 5 | 01010-31085 | BOLT, MOUNT SOLENOID VALVE BODY | 3 | |
| 6 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 3 | |
| 7 | (708-23-04311) | VALVE ASS'Y,RELIEF | 1 | |
| 8 | 708-23-19210 | Elbow | 1 | |
| 9 | 07040-11007 | PLUG,HOUSING NO.2?3?4?5?6 | 1 | |
| 10 | 07002-01023 | O-RING,(F4320-61A0 -29 ) | 1 | |
| 11 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 1 | |
| 12 | 07230-20315 | UNION, AT SLACK ADJUSTER | 1 | |
| 13 | 07002-02034 | O-RING,(NOT USED WHEN (B) SPEC.) | 1 | |
| 14 | 07102-20303 | HOSE ASSEMBLY | 1 | |
| 15 | (708-21-08111) | SERVO VALVE ASS'Y,FRONT | 1 | |
| 16 | (708-21-08211) | SERVO VALVE ASS'Y,REAR | 1 | |
| 17 | 04020-00616 | PIN,(DOWEL) | 4 | |
| 18 | 708-25-19130 | Bolt | 8 | |
| 19 | 01602-00825 | WASHER,SPRING?(SANDY AND DUSTY SPEC.) | 8 |
Model |
Nominal displacement (ml/r) Fore pump/ hind pump |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) Fore pump/ hind pump |
Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
||||
| CBXWL-35+08/KS185 | 35/08 | 20/10 | 25/13 | 1500～2500 | 600～3500 | 92/92 | 6.3 |
