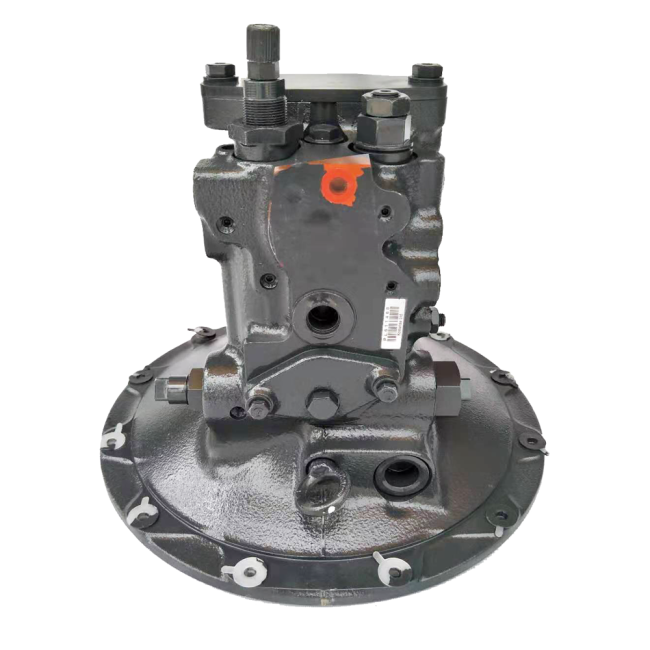

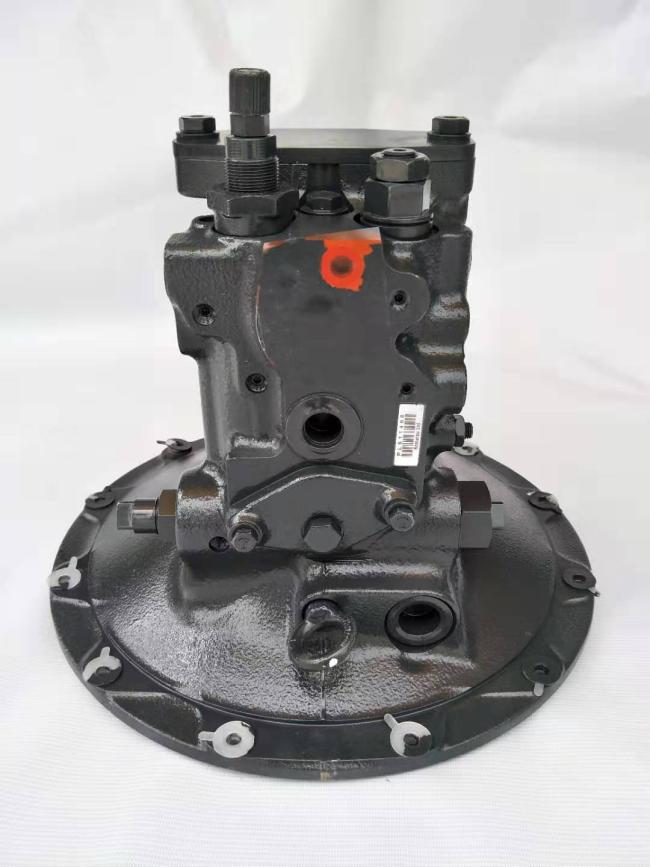

Belparts Excavator Main Pump PC75UU-1 PC75UU-2 Hydraulic Pump 708-21-02023 708-21-02022 708-21-02021 21W-60-22111
Price:
Negotiated price
MOQ:
1PCS
Delivery Time:
1~7 days
Brand:
Belparts
Product Description
Belparts excavator main pump PC75UU-1 PC75UU-2 hydraulic pump 708-21-02023 708-21-02022 708-21-02021 21W-60-22111
Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:PC75UU-1 PC75UU-2
Part number:708-21-02023 708-21-02022 708-21-02021 21W-60-22111
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require
| Appliion | Crawler excavator |
| Part name | Hydraulic Main Pump |
| Model | PC75UU-1 PC75UU-2 |
| Part number | 708-21-02023 708-21-02022 708-21-02021 21W-60-22111 |
| Warranty | 3-12 months |
| Payment term | T/T, Trade Assurance, Paypal and etc. |
| Brand | Hitachi or as require |

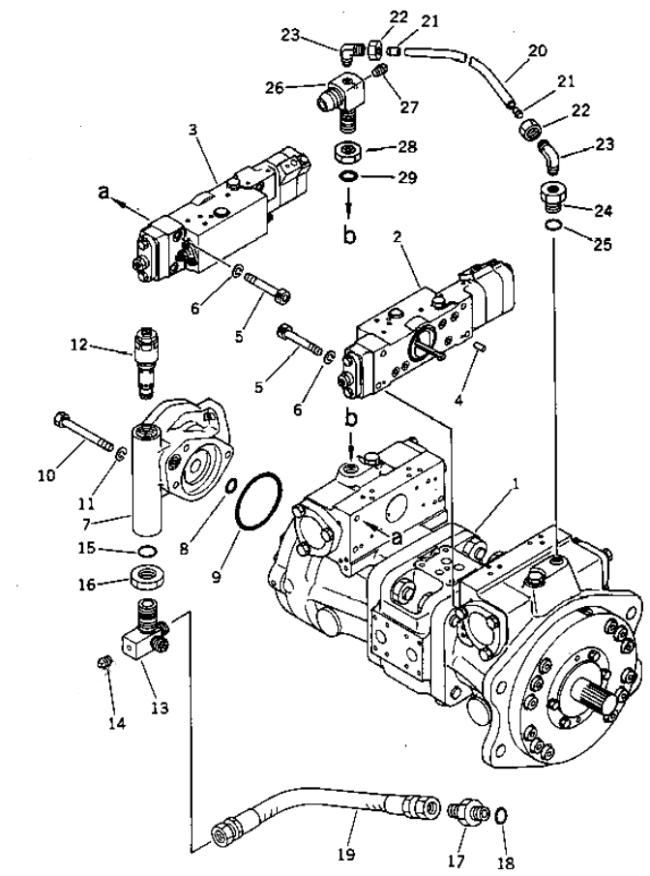

| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-21-02023 | PUMP ASS'Y | 1 | |
| 1 | 708-21-02022 | PUMP ASS'Y | 1 | |
| 1 | 708-21-02021 | PUMP ASS'Y | 1 | |
| 1 | (708-21-01222) | PUMP SUB ASS'Y | 1 | |
| 1 | 708-21-01221 | PUMP SUB ASS'Y | 1 | |
| 1 | 708-21-01220 | PUMP SUB ASS'Y | 1 | |
| 2 | (708-21-07841) | SERVO VALVE ASS'Y,FRONT | 1 | |
| 3 | (708-21-07941) | SERVO VALVE ASS'Y,REAR | 1 | |
| 4 | 04020-00616 | PIN,(DOWEL) | 4 | |
| 5 | 708-25-19130 | Bolt | 8 | |
| 6 | 01602-00825 | WASHER,SPRING?(SANDY AND DUSTY SPEC.) | 8 | |
| 7 | (704-24-24401) | GEAR PUMP ASS'Y | 1 | |
| 8 | 07000-02018 | O-RING,(SEE FIG.1601-29?1602-17) | 1 | |
| 9 | 07000-02085 | O-RING,(WITHOUT FUEL LEVEL GAUGE) | 1 | |
| 10 | 01010-31080 | BOLT, MOUNT STRAINER FLANGE | 3 | |
| 11 | 01602-01030 | WASHER,SPRING(SANDY?DUSTY TERRAIN S.) | 3 | |
| 12 | (708-23-14801) | VALVE ASS'Y,RELIEF | 1 | |
| 13 | 708-23-19110 | Elbow | 1 | |
| 14 | 07042-30108 | PLUG,SEE FIG. K4010-63A0 | 1 | |
| 15 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 1 | |
| 16 | 07239-12410 | NUT (ITL) | 1 | |
| 17 | 07230-20315 | UNION, AT SLACK ADJUSTER | 1 | |
| 17 | 07230-10315 | UNION,(FOR VARIABLE GIANT RIPPER) | 1 | |
| 18 | 07002-02034 | O-RING,(NOT USED WHEN (B) SPEC.) | 1 | |
| 19 | 07102-20303 | HOSE ASSEMBLY | 1 | |
| 20 | 07822-00803 | Tube | 1 | |
| 21 | 07831-00813 | SLEEVE (KIT) | 2 | |
| 22 | 07832-00817 | NUT,SLEEVE | 2 | |
| 23 | 07834-00817 | ELBOW,LIN1/2-PT3/8 | 2 | |
| 24 | 203-62-42590 | Bushing | 1 | |
| 25 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 1 | |
| 26 | 203-62-42640 | Elbow | 1 | |
| 27 | 07042-30108 | PLUG,SEE FIG. K4010-63A0 | 1 | |
| 28 | 07239-12410 | NUT (ITL) | 1 | |
| 29 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 1 |
Model |
Nominal displacement(ml/r) Fore pump/ hind pump |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency(≥%) Fore pump/ hind pump |
Screw | Flange | L1 | L | Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
D | D | ||||||
| CMF-*520-A*P* | 20 | 16/20 | 20/25 | 1500-2500 | 800-3000 | 89 | M27×2 | 25 | 102.5 | 169 | 7.3 |
| CMF-*525-A*P* | 25 | 104.5 | 173 | 7.4 | |||||||
| CMF-*532-A*P* | 32 | M33×2 | 30 | 107.5 | 179 | 7.7 | |||||
| CMF-*540-A*P* | 40 | 90 | 110.5 | 184 | 7.9 | ||||||
| CMF-*545-A*P* | 45 | 112.5 | 188 | 8.1 | |||||||
| CMF-*550-A*P* | 50 | 114.5 | 192 | 8.4 | |||||||
