Excavator Main Pump PC25R-8 PC27R-8 Hydraulic Main Pump 708-1S-00130 For Komatsu
Price:
Negotiated price
MOQ:
1PCS
Delivery Time:
1~7 days
Brand:
Belparts
Product Description

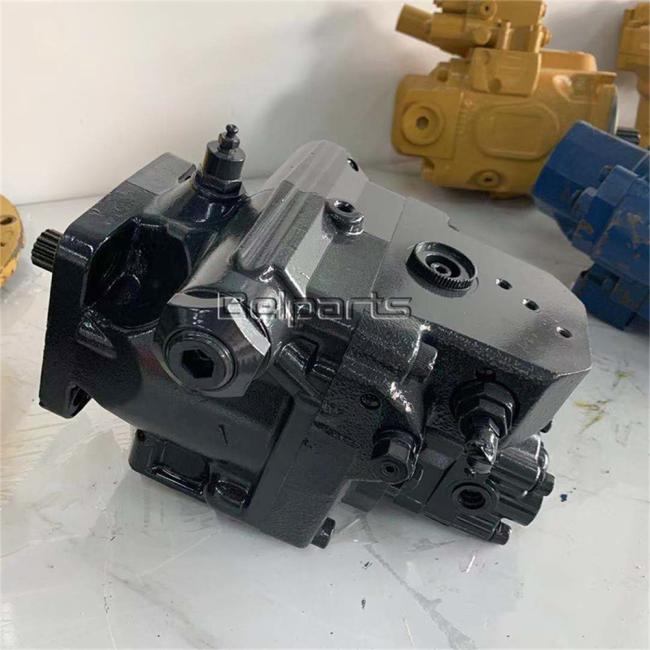

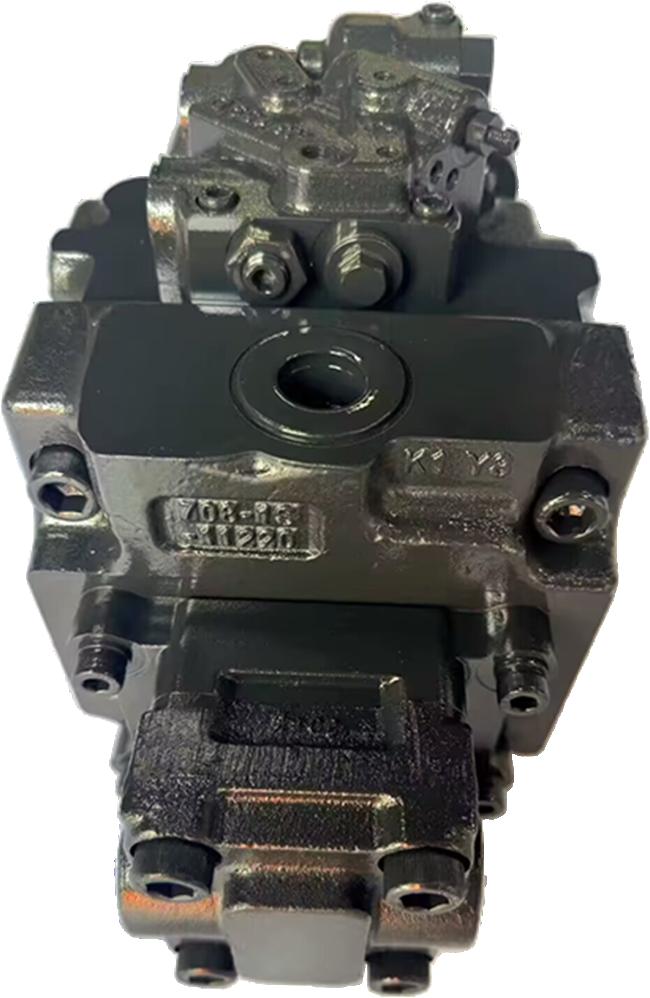

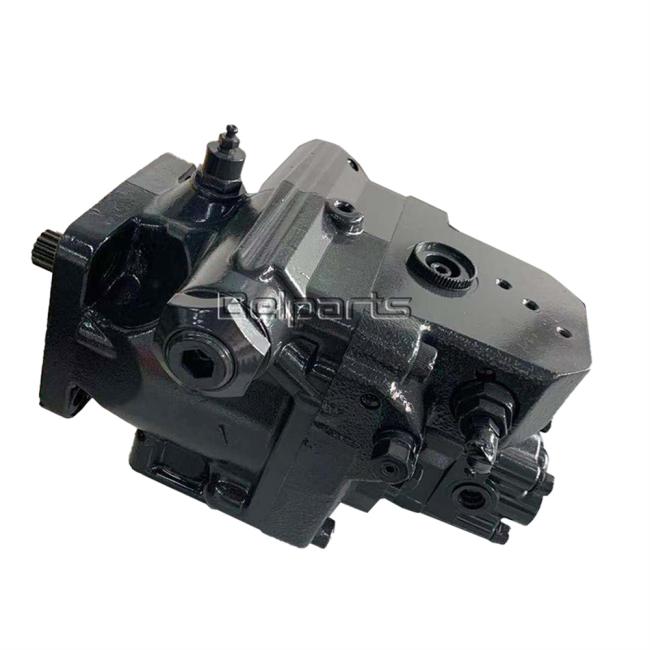

Belparts Excavator main pump PC25R-8 PC27R-8 hydraulic main pump 708-1S-00130 for komatsu
Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:PC25R-8 PC27R-8
Part number:708-1S-00130
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require
| Appliion | Crawler excavator |
| Part name | Hydraulic Main Pump |
| Model | PC25R-8 PC27R-8 |
| Part number | 708-1S-00130 |
| Warranty | 3-12 months |
| Payment term | T/T, Trade Assurance, Paypal and etc. |
| Brand | Hitachi or as require |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-1S-00130 | PUMP ASS'Y | 1 | |

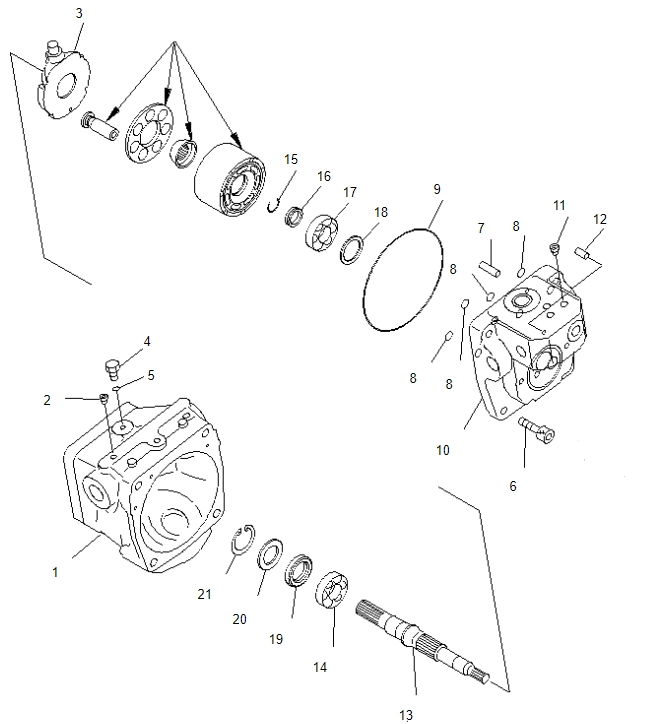

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-06A0 | ||||
| 1 | 708-1S-01111 | PUMP SUB ASS'Y | 1 | |
| 1 | (*708-1S-04211) | CASE SUB ASS'Y | 1 | |
| 1 | CASE,PUMP | 1 | ||
| 2 | Plug | 3 | ||
| 3 | CAM,ROCKER | 1 | ||
| 4 | 07040-11209 | PLUG, OIL DRAIN | 1 | |
| 5 | 07002-11223 | O-RING,(F4350-65A0 -16 ) | 1 | |
| 6 | 01252-61245 | Bolt | 4 | |
| 7 | 04020-00616 | PIN,(DOWEL) | 1 | |
| 8 | 07000-11009 | O-RING,(FOR DUAL TILT DOZER) | 4 | |
| 9 | 708-7T-51210 | O-ring | 1 | |
| 10 | (*708-1S-04221) | CAP SUB ASS'Y | 1 | |
| 10 | CAP,END | 1 | ||
| 11 | Plug | 12 | ||
| 12 | 720-68-19610 | Pin | 1 | |
| 13 | (*708-1S-12121) | Shaft | 1 | |
| 14 | (*708-7S-12140) | Bearing | 1 | |
| 15 | (*708-1S-12280) | RING,WIRE | 1 | |
| 16 | (*708-1S-12270) | Retainer | 1 | |
| 17 | (*708-1S-12260) | Bearing | 1 | |
| 18 | (*708-7T-05020) | SPACER KIT | 1 | |
| 18 | SPACER? 1.6MM | 1 | ||
| 18 | SPACER? 1.7MM | 1 | ||
| 18 | SPACER? 1.8MM | 1 | ||
| 18 | SPACER? 1.9MM | 1 | ||
| 18 | SPACER? 2.0MM | 1 | ||
| 18 | SPACER? 2.1MM | 1 | ||
| 18 | SPACER? 2.2MM | 1 | ||
| 19 | 708-7T-12230 | GASKET, SEAL | 1 | |
| 20 | 708-1S-11890 | Spacer | 1 | |
| 21 | 04065-04518 | RING,SNAP (ITL) | 1 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) |
Speed(r/min) | Volumetric efficiency (≥%) |
Bidirectional motor | L1 | L | Weight (kg) |
|||||||
Rated |
Max |
Optimums peed |
Speed range |
Inlet |
Outlet |
/ Inlet/Outlet |
|||||||||
| D | d | D | d | D | d | ||||||||||
| CMW3-F204-C1*** | 04 | 20 | 25 | 1500 2500 |
800 3000 |
90 | 8 | 35 | 10 | 40 | 10 | 35 | 40.3 | 87 | 2.7 |
| CMW3-F206-C1*对★满 | 06 | 10 | 15 | 41.5 | 89.5 | 2.8 | |||||||||
| CMW3-F208-C1* ★★ | 08 | 15 | 42.3 | 93 | 2.9 | ||||||||||
| CMW3-F211-C1** | 11 | 15 | 18 | 44 | 98 | 3 | |||||||||
| CMW3-F212.5-C1★★★ | 12.5 | 20 | 46.3 | 101 | 3.1 | ||||||||||
| CMW3-F216-C1 青青青 | 16 | 49 | 107 | 3.2 | |||||||||||
| CMW3-F220-C1*** | 20 | 53.5 | 114 | 3.3 | |||||||||||
