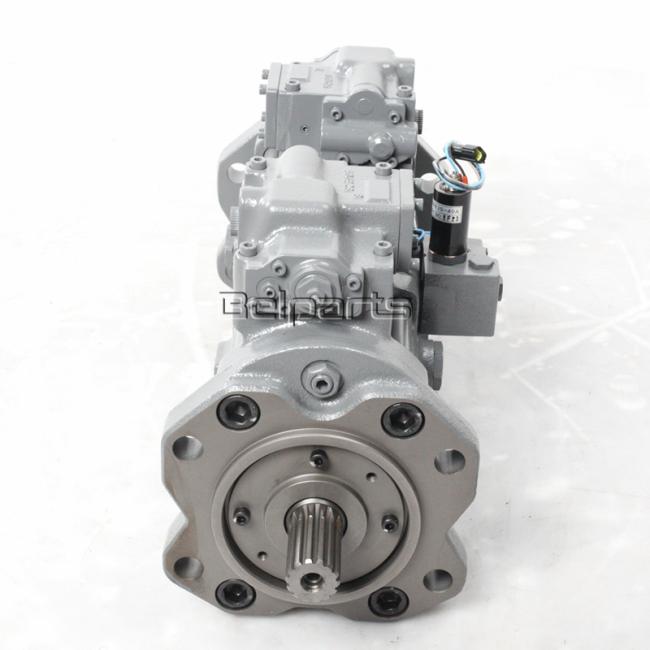

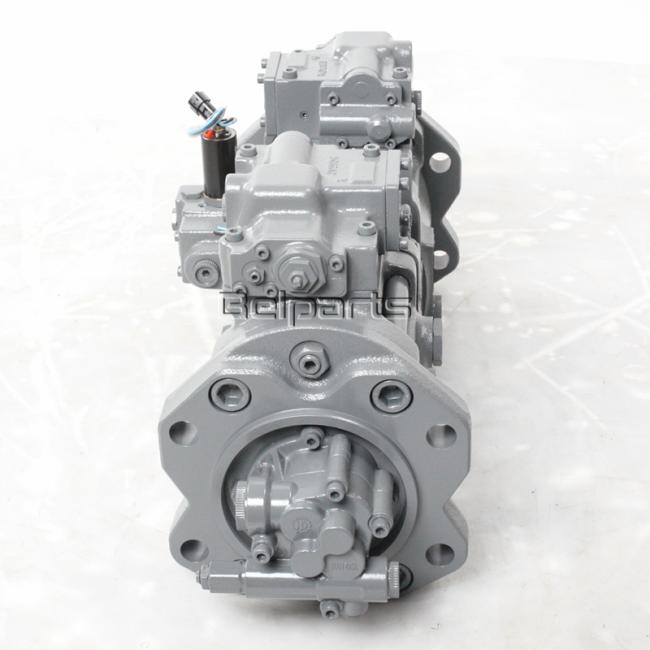

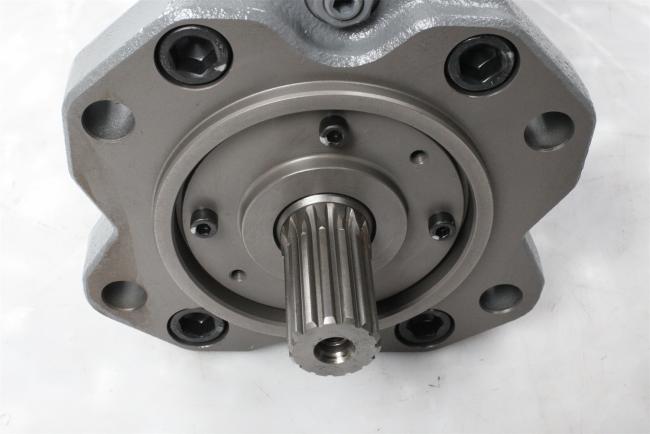

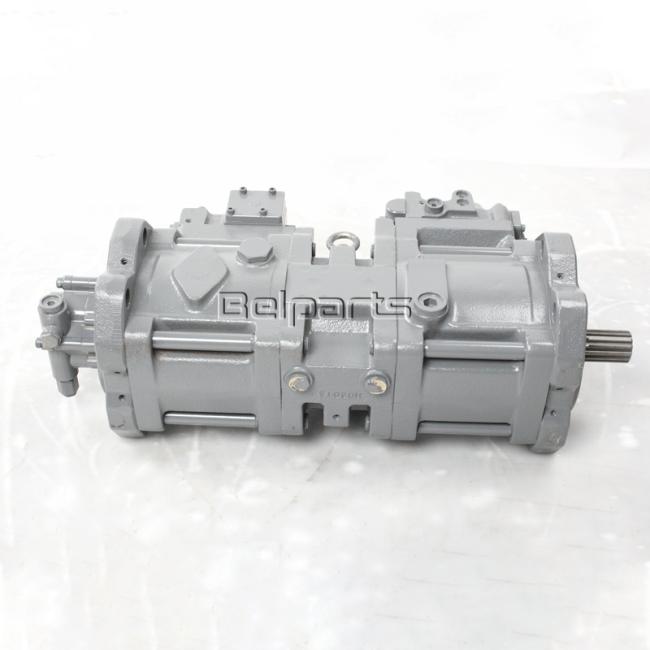

EC200 hydraulic pump Belparts excavator main pump EW200 VOE 14214127 VOE 14344193 VOE 14215385 VOE 14343112
Price:
Negotiated price
MOQ:
1PCS
Delivery Time:
1~7 days
Brand:
Belparts
Product Description
EC200 hydraulic pump Belparts excavator main pump EW200 VOE 14214127 VOE 14344193 VOE 14215385 VOE 14343112
Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:EW200 EC200
Part number:VOE 14214127 VOE 14344193 VOE 14215385 VOE 14343112
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require
| Appliion | Crawler excavator |
| Part name | Hydraulic Main Pump |
| Model | EW200 EC200 |
| Part number | VOE 14214127 VOE 14344193 VOE 14215385 VOE 14343112 |
| Warranty | 3-12 months |
| Payment term | T/T, Trade Assurance, Paypal and etc. |
| Brand | Hitachi or as require |

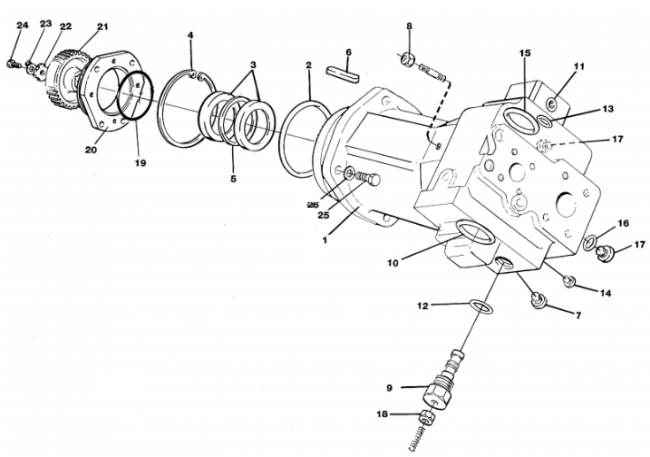

| # | Part No | Part Name | Qty. | Price request |
| P1 | ||||
| 1 | VOE 14214127 | Hydraulic Pump P1, SER NO -2781 more |
1 | |
| VOE 14344193 | Hydraulic Pump SER NO 2782- more |
1 | ||
| 2 | VOE 14023392 | O-ring | 1 | |
| 3 | VOE 14211695 | Seal | 2 | |
| 4 | VOE 14211693 | Snap Ring | 1 | |
| 5 | VOE 14211698 | Spacer | 1 | |
| 6 | VOE 14211705 | Key | 1 | |
| 7 | VOE 14211625 | Tube Plug more | 3 | |
| 8 | VOE 14212124 | Nut | 2 | |
| 9 | VOE 11702351 | Control valve | 1 | |
| 10 | VOE 14026437 | O-ring | 1 | |
| 11 | VOE 14211624 | Tube Plug SER NO -2273 more |
2 | |
| 11 | VOE 14212998 | Testing Nipple SER NO 2274- more |
1 | |
| 12 | VOE 14012277 | O-ring | 1 | |
| 13 | VOE 14023176 | O-ring | 1 | |
| 14 | VOE 14212125 | Tube Plug SER NO -2273 more |
1 | |
| 14 | VOE 14212798 | Testing Nipple SER NO 2274- more |
1 | |
| 15 |
VOE 13948699 Replace: VOE 14024290 |
O-ring more | 1 | |
| 16 | VOE 14214179 | O-ring | 1 | |
| 17 | VOE 11702159 | Tube Plug | 1 | |
| 18 | VOE 14211724 | Nut | 1 | |
| 19 | VOE 925260 | O-ring more | 1 | |
| 20 | VOE 14238227 | Cap | 1 | |
| 21 | VOE 14238228 | Gear | 1 | |
| 22 | VOE 14053720 | Washer | 1 | |
| 23 | VOE 14053721 | Striker Plate | 1 | |
| 24 | VOE 13955295 | Screw more | 1 | |
| 25 | VOE 14014659 | Screw | 4 | |
| 26 |
VOE 976945 Replace: VOE 14015098 |
Washer more | 4 |
Model |
Nominal displacement(ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L2 | L | Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
|||||||
| CBTLZT-F16/F10-AFP* | 16/10 | 20 | 25 | 1500～2500 | 800~3000 | 92 | 110 | 189 | 214.5 | 14.5 |
| CBTLZT-F16/F16-AFP* | 16/16 | 196.5 | 222 | 14.8 | ||||||
| CBTLZT-F20/F10-AFP* | 20/10 | 115 | 194 | 219.5 | 14.8 | |||||
| CBTLZT-F20/F16-AFP* | 20/16 | 201.5 | 227 | 15.3 | ||||||
| CBTLZT-F25/F10-AFP* | 25/10 | 121.5 | 200.5 | 226 | 15.2 | |||||
Model |
Nominal displacement (ml/r) |
Pressure(MPa) |
Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L | Weight (kg) |
|||
Rated |
Max |
Min |
Rated |
Max |
||||||
| CBHC-F11-AL** | 11 | 20 | 25 | 500 | 2000 | 3000 | 90 | 54.5 | 118 | 3.5 |
| CBHC-F12-AL** | 12 | 55 | 119 | 3.6 | ||||||
| CBHC-F14.5-AL** | 14.5 | 57 | 123 | 3.7 | ||||||
| CBHC-F16-AL** | 16 | 58 | 125 | 3.8 | ||||||
| CBHC-F18-AL** | 18 | 59.5 | 128 | 3.9 | ||||||
| CBHC-F20-AL** | 20 | 61 | 131 | 4.0 | ||||||
