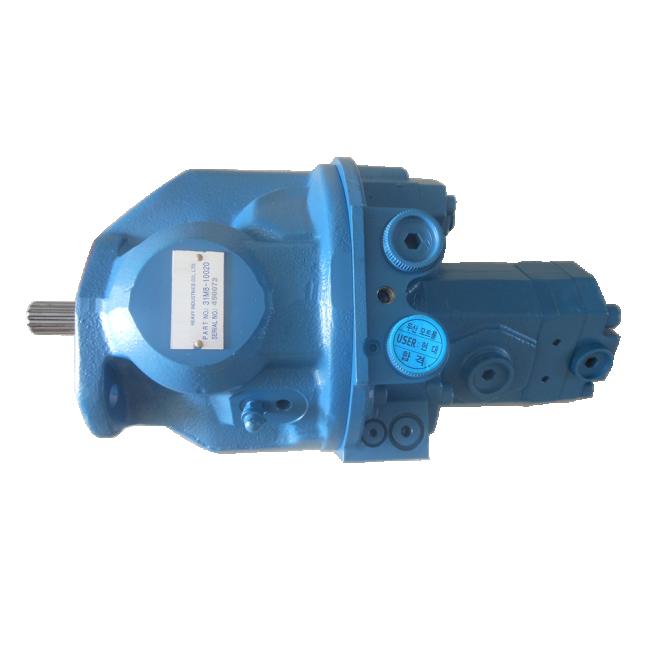

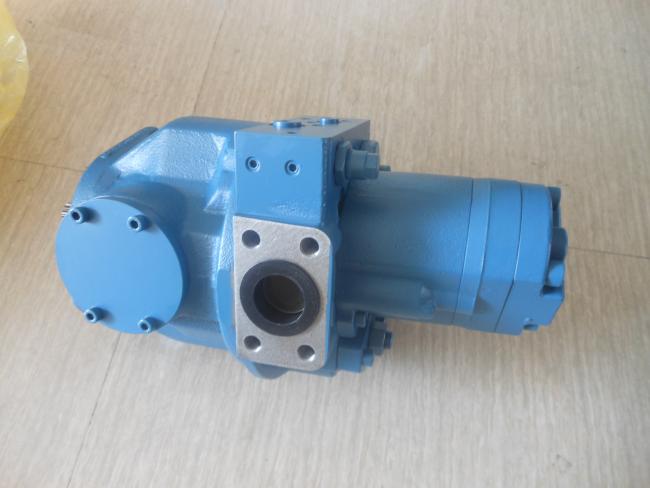

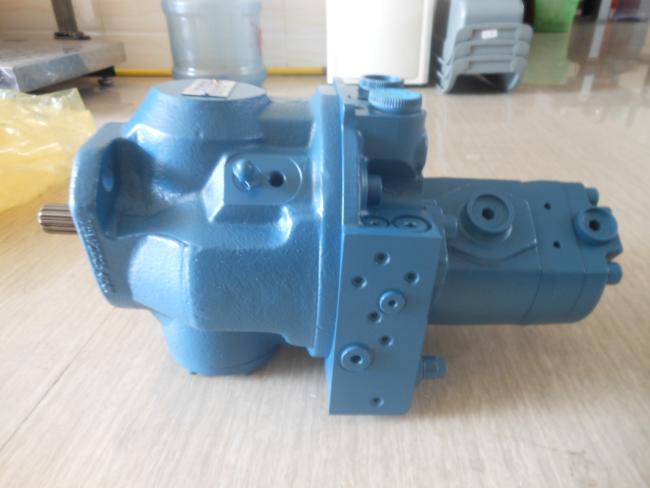

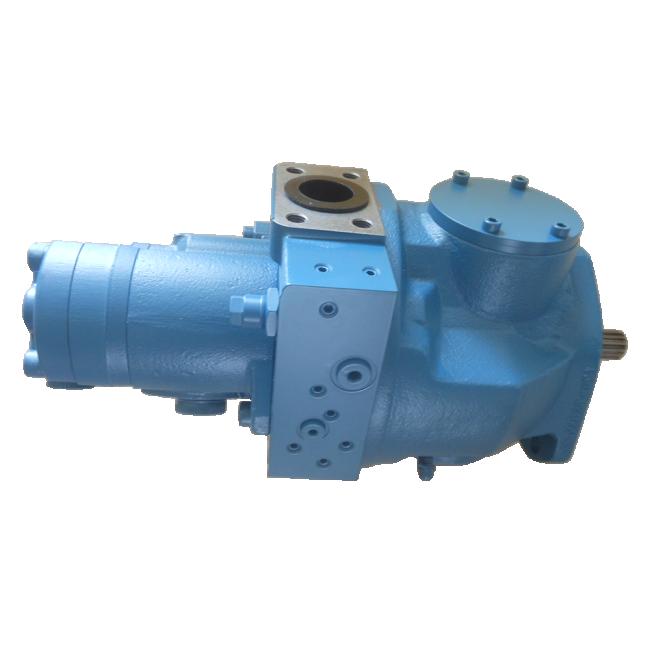

Belparts excavator main pump R55-7 R55-7A R55-9 hydraulic pump 31M8-10020 31M8-10010 31M9-10030 for hyundai
Belparts excavator main pump R55-7 R55-7A R55-9 hydraulic pump 31M8-10020 31M8-10010 31M9-10030 for hyundai
Product Description
|
Excavator Hydraulic pump |
|
|
Place of Origin: |
China(mainland) |
|
Model: |
R55-7 R55-7A R55-9 |
|
Part number: |
31M8-10020 31M8-10010 31M9-10030 |
|
MOQ: |
1 PCS |
|
Payment term: |
T/T, trade assurance,PayPal |
|
Delivery time: |
Within 1~7 days after receiving the payment |
|
Packing: |
Standard exporting packing or as required |
| # | Part No | Part Name | Qty. | Price request |
| * | 31M8-10020 | MAIN PUMP STD |
1 | |
| * | 31M8-10010 | MAIN PUMP LOW NOISE |
1 | |
| N*-1 | XKAH-00783 | MAIN PUMP UNIT SEE 4020 |
1 | |
| 1 | XKAH-00653 | SHAFT-DRIVE | 1 | |
| 2 | XKAH-00652 | COVER-SEAL | 1 | |
| 3 | XKAH-00651 | BEARING-BALL | 1 | |
| 4 | XKAH-00650 | RING-SNAP | 1 | |
| 5 | XKAH-00649 | RING-SNAP | 1 | |
| K6 | XKAH-00648 | SEAL-OIL | 1 | |
| K7 | XKAH-00647 | O-RING | 1 | |
| 8 | XKAH-00646 | RING-SNAP | 1 | |
| 9 | XKAH-00645 | PLATE-SWASH | 1 | |
| 10 | XKAH-00644 | PLATE | 1 | |
| 11 | XKAH-00643 | SPACER-BEARING | 1 | |
| 12 | XKAH-00642 | BEARING-ROLLER | 2 | |
| 13 | XKAH-00641 | BOLT-SOCKET | 4 | |
| K14 | XKAH-00640 | O-RING | 1 | |
| 15 | XKAH-00639 | PIVOT | 1 | |
| 16 | XKAH-00655 | BLOCK-CYLINDER STD |
1 | |
| 16 | XKAH-00918 | BLOCK-CYLINDER LOW NOISE |
1 | |
| 17 | XKAH-00656 | BUSH-SPHERICAL | 1 | |
| 18 | XKAH-00657 | PLATE-PUSH STD |
1 | |
| 18 | XKAH-00919 | PLATE-PUSH LOW NOISE |
1 | |
| 19 | XKAH-00658 | PLATE-SHOE | 1 | |
| 20 | XKAH-00659 | SPRING | 1 | |
| 21 | XKAH-00660 | PIN-PARALLEL | 3 | |
| 22 | XKAH-00661 | SEAT-SPRING | 2 | |
| 23 | XKAH-00662 | RING-SNAP | 1 | |
| 24 | XKAH-00864 | PISTON SUB ASSY STD |
1 | |
| 24 | XKAH-00928 | PISTON SUB ASSY LOW NOISE |
1 | |
| 26 | XKAH-00673 | CASING | 1 | |
| 27 | XKAH-00675 | SEAT-SPRING(1) | 1 | |
| 28 | XKAH-00676 | SEAT-SPRING(2) | 1 | |
| 29 | XKAH-00677 | COVER-SPRING | 1 | |
| 30 | XKAH-00678 | SCREW-ADJUSTING | 1 | |
| 31 | XKAH-00679 | SPRING | 1 | |
| 32 | XKAH-00680 | SPRING | 1 | |
| K33 | XKAH-00681 | O-RING | 1 | |
| 34 | XKAH-00682 | BOLT-SOCKET | 2 | |
| 35 | XKAH-00683 | NUT-HEX | 1 | |
| 36 | XKAH-00684 | SHIM(0.3T) | 1 | |
| 37 | XKAH-00685 | SHIM(0.5T) | 1 | |
| 38 | XKAH-00686 | SHIM(1.0T) | 1 | |
| 39 | XKAH-00687 | SHIM(2.0T) | 1 | |
| 73 | XKAH-00716 | AIR BREATHER | 1 | |
| 74 | XKAH-00717 | NAME PLATE STD |
1 | |
| 74 | XKAH-00924 | NAME PLATE LOW NOISE |
1 | |
| 75 | XKAH-00116 | SCREW-RIVET | 2 | |
| K | XKAH-00824 | SEAL KIT SEE ILLUST |
1 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE 4030 |
1 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) |
Speed(r/min) | Volumetric efficiency (≥%) |
A | Outlet | d | Weight (kg) |
|||
Rated |
Max |
0 ptimum speed |
Optimum speed |
||||||||
| d | D | ||||||||||
| CBNZQ-F520-BL** | 20 | 20 | 25 | 1500-2500 | 800-3000 | 92 | 48 | 35 | M22×1.5 | 134 | 5.1 |
| CBNZQ-F525-BL** | 25 | 139 | 5.3 | ||||||||
| CBNZQ-F532-BL** | 32 | 93 | 5.6 | ||||||||
| CBNZQ-F540-BL** | 40 | 51 | 44 | M27×2 | 144 | 5.9 | |||||
| CBNZQ-F550-BL** | 50 | 151 | 6.3 | ||||||||
| CBNZQ-F563-BL** | 63 | 160 | 6.8 | ||||||||
