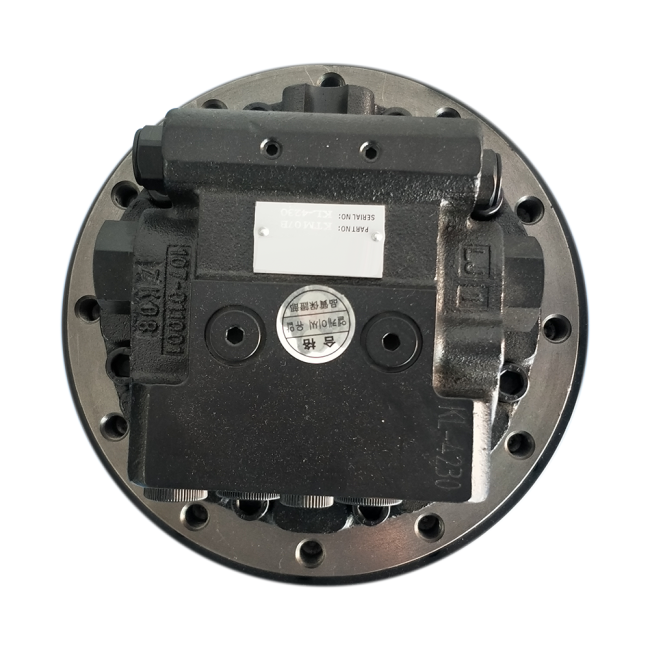

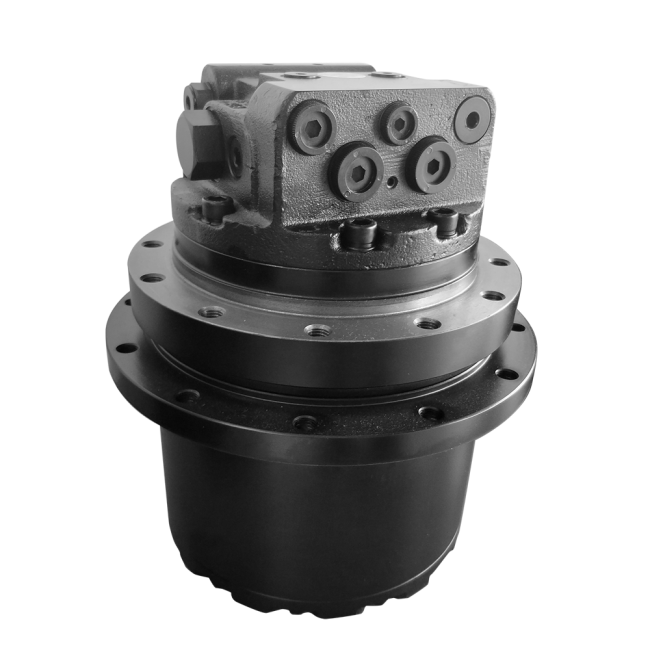

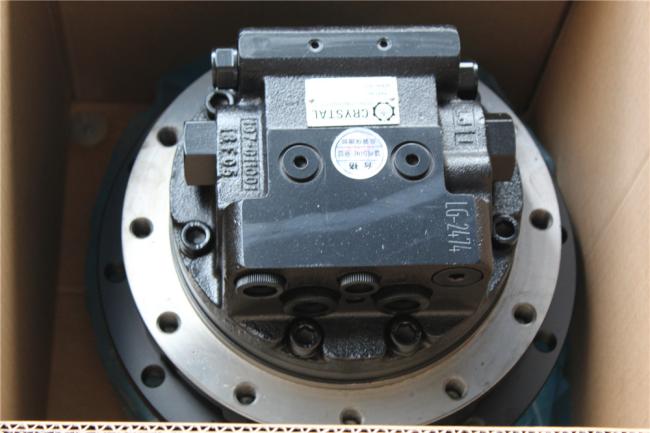

R55-7 R55-7A Final Drive Assy Belparts Excavator Travel Motor Assy 31M8-40010 31M8-40020 For Hyundai
R55-7 R55-7A final drive assy Belparts Excavator travel motor assy 31M8-40010 31M8-40020 for hyundai
Product description
Appliion:Excavator
Part name:Travel motor ass'y
Material:Steel
Model:R55-7 R55-7A
MOQ:1PC
Warranty:6 months
Payment term:T/T, paypal, trade assurance or as required
Part number:31M8-40010 31M8-40020
Shipment:by sea, by air, by express or as required
| Appliion | Excavator |
| Part name | Travel motor ass'y |
| Material | Steel |
| Model | R55-7 R55-7A |
| MOQ | 1PC |
| Warranty | 6 months |
| Payment term | T/T, paypal, trade assurance or as required |
| Part number | 31M8-40010 31M8-40020 |
| Shipment | by sea, by air, by express or as required |

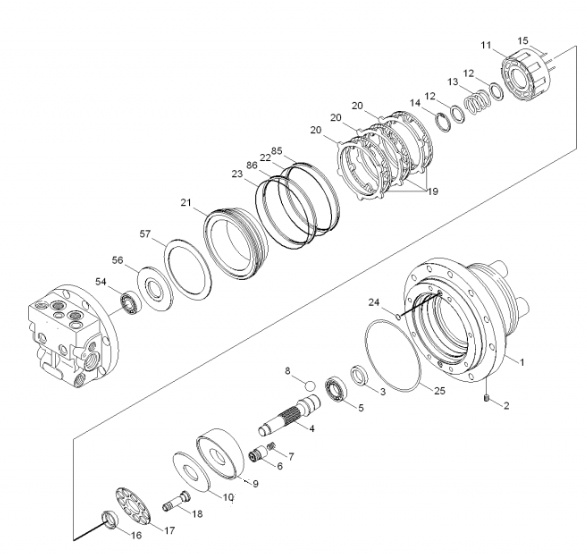

| # | Part No | Part Name | Qty. | Price request |
| * | 31M8-40010 | TRAVEL MOTOR | 1 | |
| *-1 | XKAH-00797 | REAR FLANGE ASSY | 1 | |
| *-11 | XKAH-00796 | REAR FLANGE KIT | 1 | |
| N1 | XKAH-00795 | REAR FLANGE | 1 | |
| N23 | XKAH-00827 | MAIN SPOOL(E-TYPE) | 1 | |
| 18 | XKAH-00793 | SEAT-VALVE | 1 | |
| 19 | XKAH-00792 | VALVE-T | 1 | |
| 20 | XKAH-00791 | SPRING | 1 | |
| 21 | XKAH-00790 | PLUG-VP | 1 | |
| 22 | XKAH-00461 | RING | 1 | |
| 24 | XKAH-00789 | PLUG-MAIN | 2 | |
| 25 | XKAH-00788 | RETAINER-SPRING | 2 | |
| 26 | XKAH-00787 | PLUG-CHECK | 2 | |
| 27 | XKAH-00786 | VALVE-CHECK | 2 | |
| 28 | XKAH-00785 | MAIN SPRING | 2 | |
| 30 | XKAH-00784 | SPRING-CHECK | 2 | |
| K33 | XKAH-00389 | O-RING | 1 | |
| K37 | XKAH-00104 | O-RING | 2 | |
| 44 | XKAH-00325 | PLUG | 6 | |
| 52 | XKAH-00050 | PLUG-RO | 2 | |
| 54 | XKAH-00208 | PLUG-PT | 4 | |
| 63 | XKAH-00387 | VALVE(TWO SPEED) | 1 | |
| 64 | XKAH-00386 | STOPPER(TWO SPEED) | 1 | |
| 65 | XKAH-00385 | RING(TWO SPEED) | 1 | |
| 66 | XKAH-00384 | SPRING(TWO SPEED) | 1 | |
| 68 | XKAH-00378 | BALL-STEEL | 2 | |
| K36 | XKAH-00256 | O-RING | 2 | |
| K38 | XKAH-00326 | O-RING | 1 | |
| 41 | XKAH-00757 | PIN-PARALLEL | 2 | |
| 42 | XKAH-00756 | PIN-PARALLEL | 2 | |
| 43 | XKAH-00755 | BOLT-SOCKET | 8 | |
| K74 | XKAH-00052 | O-RING | 2 | |
| 89 | XKAH-00754 | PLATE-NAME | 1 | |
| 90 | XKAH-00116 | SCREW-RIVET | 2 | |
| 91 | XKAH-00327 | PLUG-PT | 2 | |
| K | XKAH-00838 | SEAL KIT SEE ILLUST |
1 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L | Intet | Outlet | Weight (kg) |
|||||
Rated |
Max |
Min |
Rated |
Max |
a | b | a | b | ||||||
| CBF-F410-AL** | 10 | 20 | 25 | 800 | 2500 | 3000 | ) J2 |
55 | 114 | M22×1.5 | 50 | M18×1.5 | 45 | 3.2 |
| CBF-F412.5-AL** | 12.5 | 56.3 | 116.5 | 3.3 | ||||||||||
| CBF-F414-AL** | 14 | 57.3 | 118.5 | 3.4 | ||||||||||
| CBF-F416-AL** | 16 | 58.3 | 120 | M27×2 | M22×1.5 | 3.5 | ||||||||
| CBF-F418-AL** | 18 | 600 | 59.5 | 123 | 3.6 | |||||||||
| CBF-F420-AL** | 20 | 93 | 60.5 | 125 | 3.7 | |||||||||
| CBF-F425-AL** | 25 | 63.8 | 131.5 | M33×2 | M27×1.5 | 3.8 | ||||||||
| CBF-F432-AL** | 32 | 67.5 | 139 | 4.1 | ||||||||||
| CBF-E440-AL** | 40 | 72 | 148 | 4.4 | ||||||||||
| CBF-E450-AL** | 50 | 72 | 148 | 4.7 | ||||||||||
Company information
Our factory strength
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T, PayPal (for small amount) and trade assurance.
