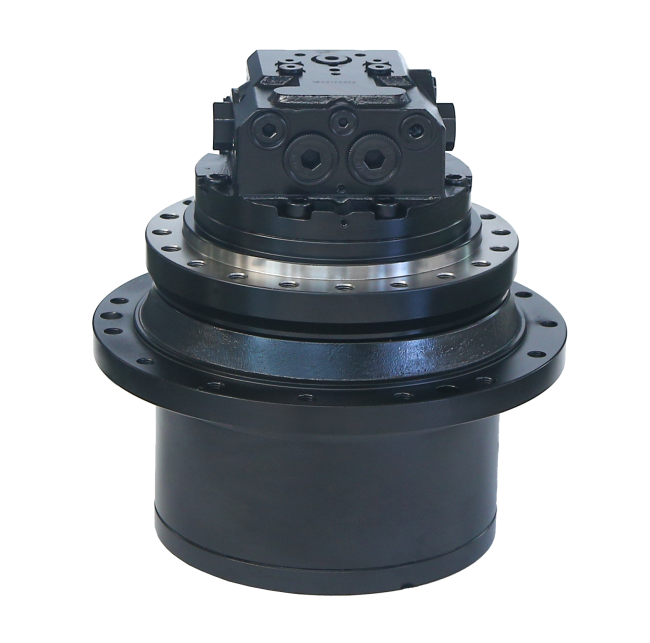

Belparts Excavator Travel Motor Assy PC100-3 PC100-1 Final Drive Assy 202-60-00302 202-60-51101 For KOMATSU
Belparts Excavator travel motor assy PC100-3 PC100-1 final drive assy 202-60-00302 202-60-51101 for KOMATSU
Product description
Appliion:Excavator
Part name:Travel motor ass'y
Material:Steel
Model:R55-7 R55-7A
MOQ:1PC
Warranty:6 months
Payment term:T/T, paypal, trade assurance or as required
Part number:202-60-00302 202-60-51101
Shipment:by sea, by air, by express or as required
| Appliion | Excavator |
| Part name | Travel motor ass'y |
| Material | Steel |
| Model | PC100-3 PC100-1 |
| MOQ | 1PC |
| Warranty | 6 months |
| Payment term | T/T, paypal, trade assurance or as required |
| Part number | 202-60-00302 202-60-51101 |
| Shipment | by sea, by air, by express or as required |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 202-60-00302 | TRAVEL MOTOR ASS'Y | 2 | |
| 1 | 202-60-00301 | TRAVEL MOTOR ASS'Y | 2 | |
| 1 | 202-60-00300 | TRAVEL MOTOR ASS'Y | 2 | |
| 1 | 202-60-51101 | TRAVEL MOTOR ASS'Y | 2 | |

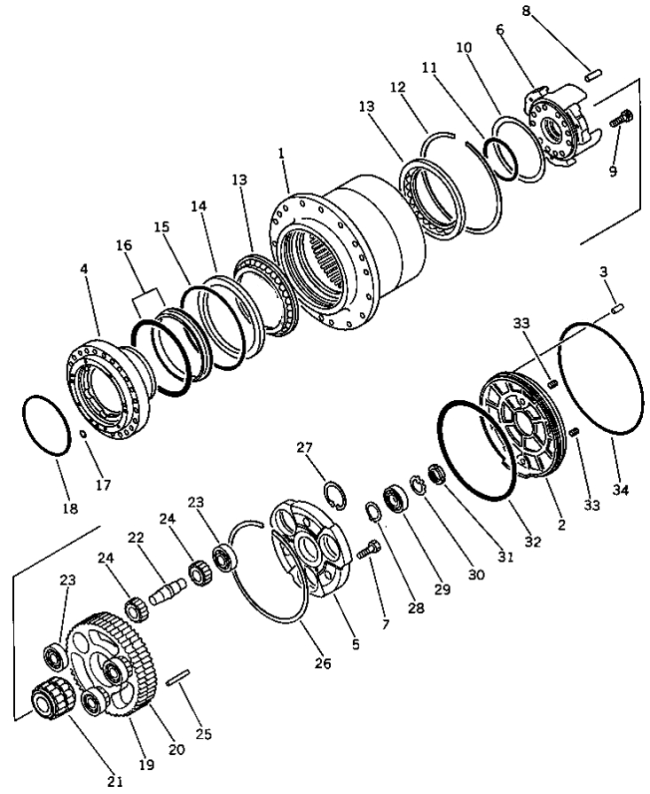

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2005 AND 2006 | ||||
| 1 | TZ150A1103-00 | HUB ASS'Y | 1 | |
| 1 | TZ150A1001-02 | Hub | 1 | |
| 1 | TZ150A1001-01 | Hub | 1 | |
| (TZ150A1001-02{TZ150A1108-02)} | ||||
| 1 | Hub | 1 | ||
| 2 | TZ150A1008-02 | Cover | 1 | |
| 2 | TZ150A1008-01 | Cover | 1 | |
| 2 | Cover | 1 | ||
| 3 | PIN,DOWEL | 2 | ||
| 4 | TZ150A1101-01 | SPINDLE KIT | 1 | |
| 4 | TZ150A1132-01 | SPINDLE ASS'Y | 1 | |
| 4 | Spindle | 1 | ||
| 5 | FLANGE,HOLD | 1 | ||
| 6 | Carrier | 1 | ||
| 7 | TZ100A1019-00 | BOLT,REAMER | 3 | |
| 8 | TZ200A1015-00 | Pin | 6 | |
| 9 | 01252-31850 | Bolt | 6 | |
| 10 | TZ200A1013-00 | PIECE,DISTANCE | 1 | |
| 11 | TZJW1516-G26-9 | O-RING (KIT) | 1 | |
| 12 | TZ150A1011-00 | Ring | 1 | |
| 13 | TZ200A1021-01 | BEARING,BALL | 2 | |
| 13 | TZ200A1021-00 | BEARING,BALL | 2 | |
| 14 | TZ150A1010-00 | PIECE,DISTANCE | 1 | |
| 15 | 07000-15260 | O-RING,(F4350-60A0 -15 ) | 1 | |
| 16 | TZES100-209-A | SEAL,FLOATING (KIT) | 1 | |
| 17 | 07000-11006 | O-RING,(NOT SHOWN) | 1 | |
| 18 | TZJW1516-G41-9 | O-RING (KIT) | 1 | |
| 19 | TZ150A1104-00 | GEAR ASS'Y | 1 | |
| 19 | TZ150A1204-00 | GEAR ASS'Y | 1 | |
| 19 | Gear | 1 | ||
| 20 | Gear | 1 | ||
| 21 | TZ150A1007-01 | Bearing | 1 | |
| 21 | TZ150A1007-00 | Bearing | 1 | |
| 22 | TZ150A1009-01 | SHAFT,CRANK | 3 | |
| 23 | TZ150A1022-00 | Bearing | 6 | |
| 24 | TZ150A1023-00 | Bearing | 6 | |
| 25 | TZ150A1017-00 | Pin | 54 | |
| 26 | TZ150A1012-00 | Ring | 1 | |
| 27 | TZ150A1020-00 | SNAP RING KIT,SNAP | 3 | |
| 28 | 04064-04018 | RING,SNAP (WITH EMERGENCY STEERING) | 1 | |
| 29 | TZ150A1024-00 | Bearing | 1 | |
| 30 | TZJB1555-AW07 | Washer | 1 | |
| 31 | TZJB1554-AN07 | Nut | 1 | |
| 32 | TZJW1516-P77-7 | O-RING (KIT) | 1 | |
| 32 | 07000-15270 | O-RING,CASE SIDE | 1 | |
| 33 | TZGM1-2 | Plug | 2 | |
| 34 | TZ150A1018-00 | Ring | 1 |
Company information
Our factory strength
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T, PayPal (for small amount) and trade assurance.
