Excavator parts EC380DL VOE14622901 VOE14680015 swing gearbox assembly for

Name: Excavator parts EC380DL VOE14622901 VOE14680015 swing gearbox assembly for
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED

Price Negotiable

Price: negotiation

MOQ: Negotiable

Delivery Time: Negotiable

Brand: Belparts

Product Description

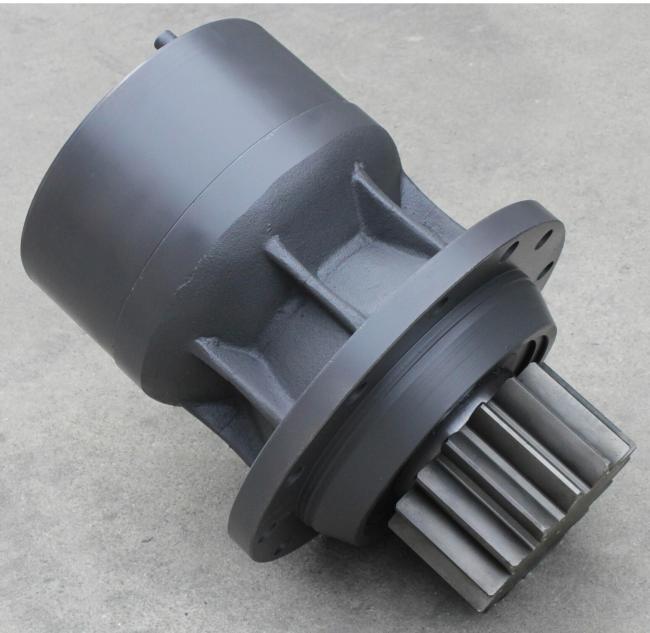

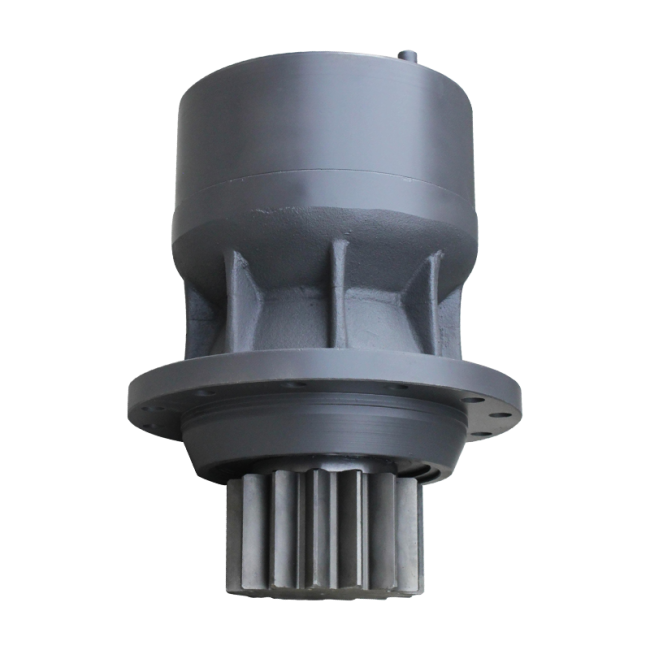

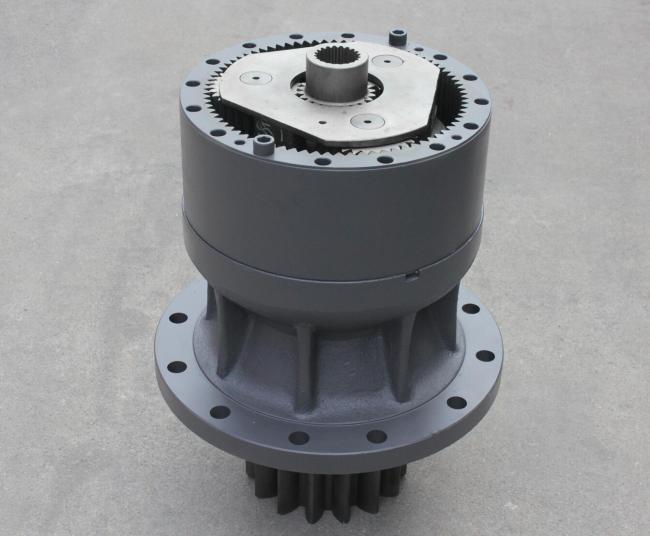

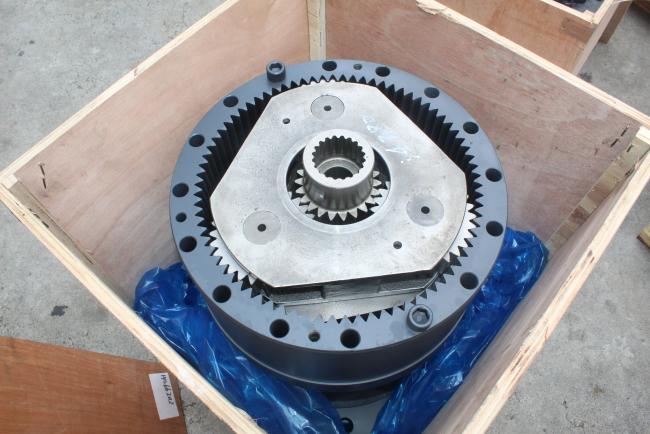

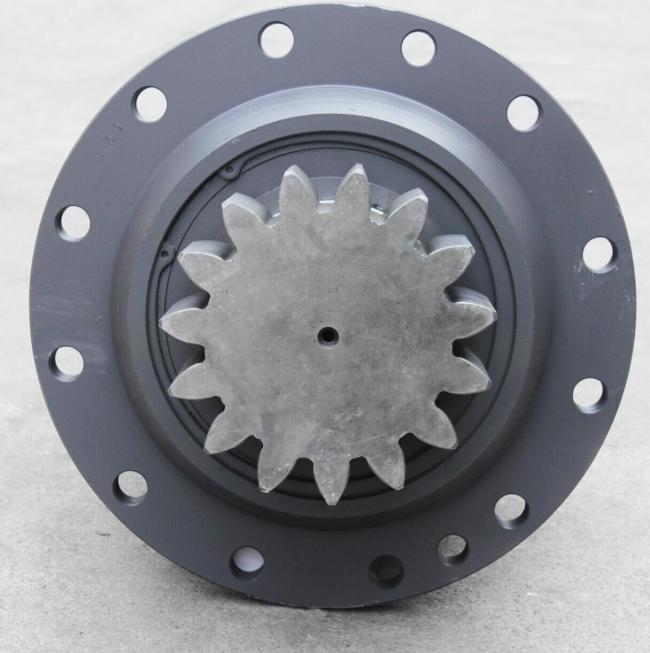

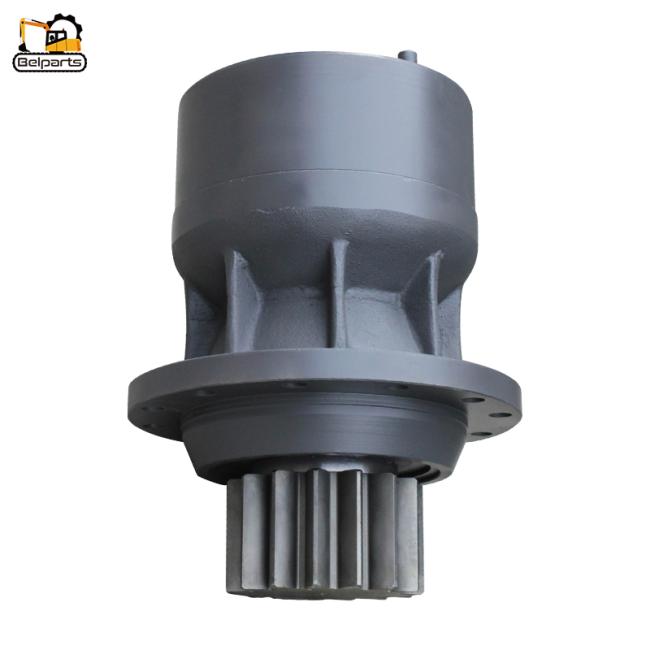

Excavator parts EC380DL VOE14622901 VOE14680015 swing gearbox assembly for

Product parameter:

Product name	swing gearbox
Weight	344KG
Model:	EC380DL
Part number:	VOE14622901 VOE14680015
Brand:
Package:	57X62x63
Delivery time:	Within 2 days after receiving the payment

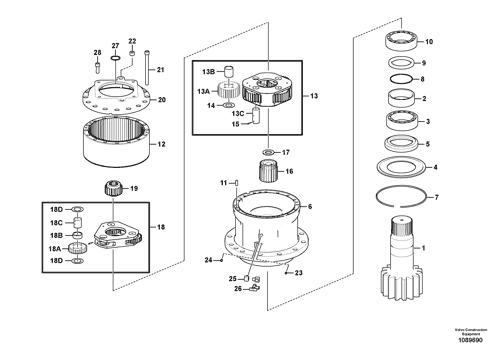

Pos.	Part No	Qty	Parts name
	VOE14622901	[1]	Swing gearbox
	VOE14680015		Swing gearbox
1.	VOE14622865	[1]	Shaft
2.	VOE14622869	[1]	Collar
3.	VOE14622894	[1]	Roller bearing
4.	VOE14622895	[1]	Plate
5.	VOE14622896	[1]	Collar
6.	VOE14622897	[1]	Case
7.	VOE14622898	[1]	Retaining ring
8.	VOE14622899	[1]	Retaining ring
9.	VOE14596611	[1]	Seal
10.	VOE14640028	[1]	Bearing
11.	SA9324-21317	[4]	Pin
12.	VOE14622914	[1]	Gear
13.	VOE14622908	[1]	Planet carrier
13A.	VOE14622910	[4]	Gear
13B.	VOE14622911	[4]	Bushing
13C.	VOE14622912	[4]	Pin
14.	VOE14596618	[4]	Washer
15.	VOE952004	[4]	Spring pin
16.	VOE14622913	[1]	Gear
17.	VOE14596621	[1]	Thrust washer
18.	VOE14622902	[1]	Planet carrier
18A.	VOE14622904	[0003]	Gear
18B.	VOE14622905	[3]	Bushing
18C.	VOE14622906	[3]	Pin
18D.	VOE14596625	[0006]	Washer
19.	VOE14622907	[1]	Gear
	VOE14680062		Gear
20.	VOE14596630	[1]	Cover
	VOE14633289		Cover
21.	VOE995261	[16]	Hex. socket screw
22.	SA9415-43052	[2]	Plug
23.	SA9415-43012	[1]	Plug
24.	VOE914167	[1]	Lubriing nipple
25.	SA9411-92830	[2]	Elbow nipple
26.	VOE14529015	[1]	Valve
27.	VOE914472		Snap ring
28.	VOE984138	[4]	Hex. socket screw
	VOE984139		Hex. socket screw
