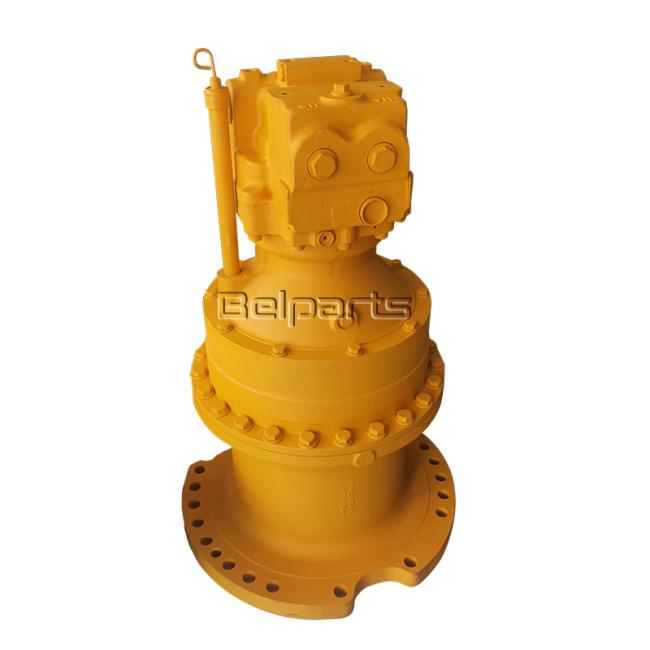

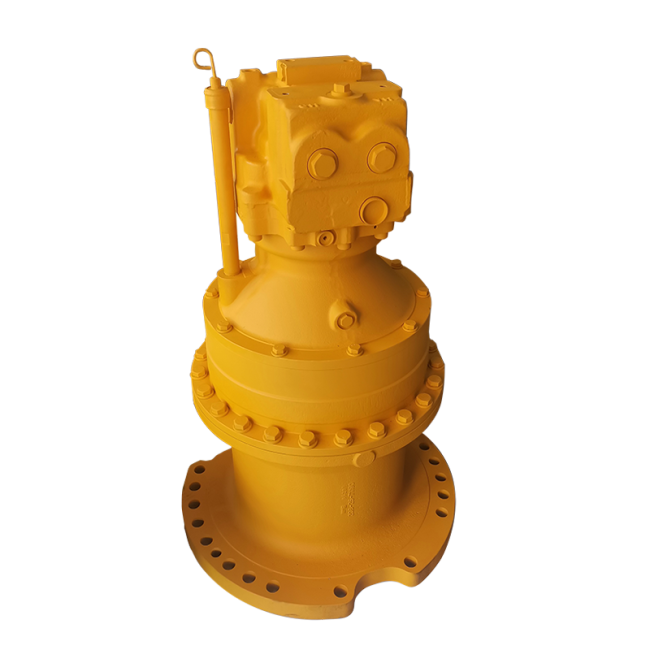

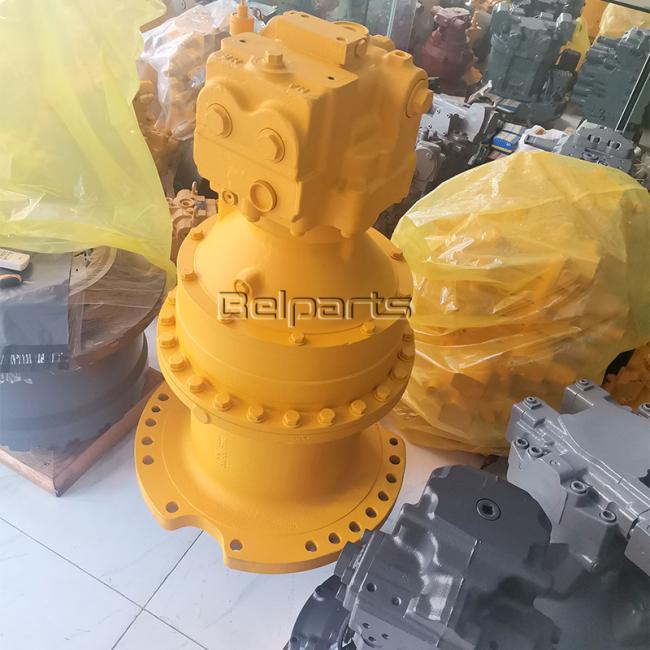

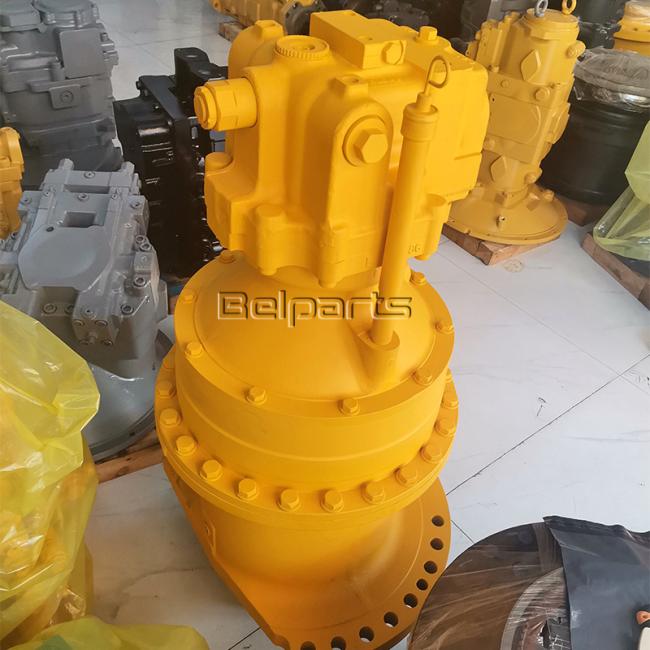

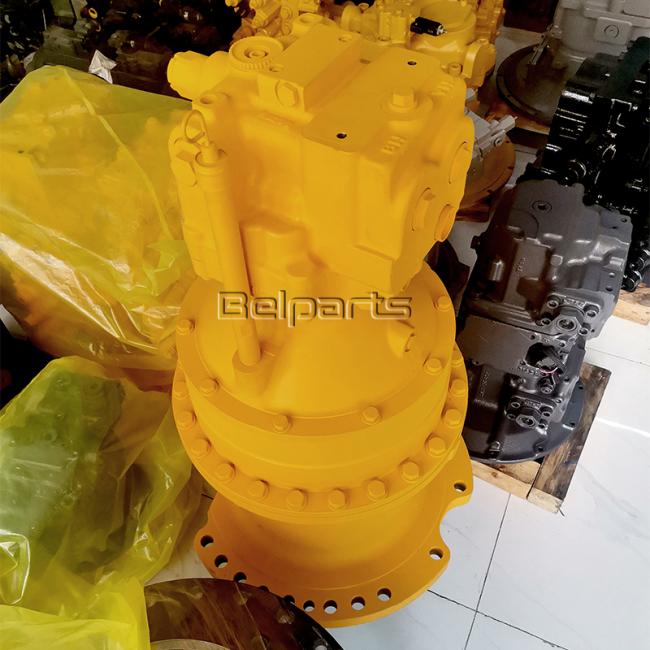

Excavator Parts Swing Motor Assy For Komatsu PC450-7 PC450-8 PC400-7 PC400-8 Hydraulic Swing Device 706-7K-010
Price:
negotiation
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Belparts
Product Description
Excavator parts PC450-7 PC450-8 PC400-7 PC400-8 Hydraulic Swing Device 706-7K-010 Swing Motor assy for komatsu
PRODUCT SPECIFIIONS
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | (706-7K-01040) | MOTOR ASS'Y,(SEE FIG. Y1640-01A0) | 1 | |
| 2 | 207-26-71240 | Ring | 1 | |
| 3 | 07040-11209 | PLUG, OIL DRAIN | 1 | |
| 4 | 07002-11223 | O-RING,(F4350-65A0 -16 ) | 1 | |
| 5 | 208-26-71190 | CASE | 1 | |
| 6 | 07049-02430 | PLUG,(FOR W/O. FULL ROLLER GUARD) | 2 | |
| 7 | 06000-23124 | Bearing | 1 | |
| 8 | 06000-22326 | BEARING,ROLLER | 1 | |
| 9 | 208-26-52242 | Shaft | 1 | |
| 10 | 208-26-61290 | Seal | 1 | |
| 11 | 208-26-71360 | Cover | 1 | |
| 12 | 01010-81030 | BOLT,(WITH BODY POSITIONER) | 12 | |
| 13 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 12 | |
| 14 | 07000-15390 | O-ring | 1 | |
| 15 | 208-26-71181 | Carrier | 1 | |
| 15 | (208-26-71180) | Carrier | 1 | |
| 16 | 208-26-71140 | Gear | 4 | |
| 17 | 207-27-61230 | BEARING,2P | 4 | |
| 18 | 20Y-27-21250 | WASHER,THRUST | 8 | |
| 19 | 207-27-61250 | Pin | 4 | |
| 20 | 20Y-27-21290 | Pin | 4 | |
| 21 | 208-26-71230 | Plate | 1 | |
| 22 | 205-32-51211 | BOLT? SHOE (KIT) | 1 | |
| 23 | 208-26-71150 | Gear | 1 | |
| 24 | 01010-81645 | BOLT,(FOR 60TON DUMP BODY) | 24 | |
| 25 | 01643-31645 | WASHER,(FOR TRAVEL MOTOR) (NOT SHOW) | 24 | |
| 26 | 208-26-71130 | Gear | 1 | |
| 27 | 208-26-71241 | Plate | 1 | |
| 28 | 208-26-71170 | Carrier | 1 | |
| 29 | 207-26-71520 | Gear | 3 | |
| 30 | 22U-26-21320 | Bearing | 3 | |
| 31 | 22U-26-21240 | WASHER,THRUST | 6 | |
| 32 | 207-26-71210 | Pin | 3 | |
| 33 | 04064-04018 | RING,SNAP (WITH EMERGENCY STEERING) | 6 | |
| 34 | 208-26-71210 | HOLDER | 1 | |
| 35 | 04260-01270 | BALL,(-40 DEG. SPEC.) | 1 | |
| 36 | 207-26-71510 | Gear | 1 | |
| 37 | 207-26-71261 | Plate | 1 | |
| 38 | 144-60-11151 | Valve | 1 | |
| 39 | 07270-21590 | Tube | 1 | |
| 40 | 07281-00197 | CLAMP,(WITH PRE-FUEL FILTER) | 1 | |
| 41 | 01010-81240 | BOLT,FOR WEIGHT ADJUSTING BOLT | 10 | |
| 42 | 01643-31232 | WASHER,(NOT USED WITH EMERGENCY STR.) | 10 | |
| 43 | 207-26-71410 | GAUGE | 1 | |
| 44 | 20Y-26-21350 | Filler | 1 | |
| 45 | 07000-15335 | O-RING (KIT) | 1 | |
| 46 | 01010-82480 | Bolt | 17 | |
| 47 | 01643-32460 | WASHER,(WITHOUT ROPS GUARD? CANOPY) | 17 |
