Excavating Machinery Excavator Swing Motor Assy R300lc-9s 38Q8-11100 38Q8-11101 39Q8-11100 39Q8-11101

Name: Excavating Machinery Excavator Swing Motor Assy R300lc-9s 38Q8-11100 38Q8-11101 39Q8-11100 39Q8-11101
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED

Price Negotiable

Price: negotiation

MOQ: Negotiable

Delivery Time: Negotiable

Brand: Belparts

Product Description

Excavating machinery r300lc-9s 38Q8-11100 38Q8-11101 39Q8-11100 39Q8-11101 excavator swing motor

Product Description

Product Name:	Swing motor
Model:	r300lc-9s
Part Number:	38Q8-11100 38Q8-11101 39Q8-11100 39Q8-11101
MOQ:	1 PIECE
Packing:	Standard exporting wooden box or as required
Delivery time:	Within 2 days after receiving full payment

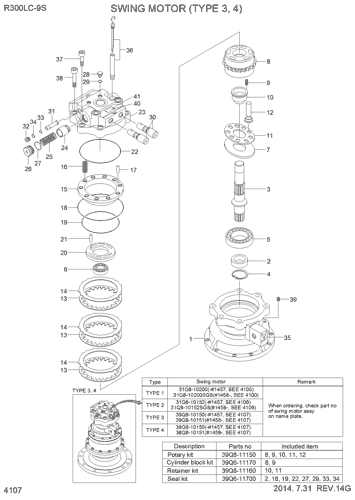

Parts on group SWING MOTOR (TYPE 3, 4):

Pos.	Part No	Qty	Parts name	Comments
*.	39Q8-10150	[1]	SWING MOTOR ASSY	TYPE 3
*.	39Q8-10151	[1]	SWING MOTOR ASSY	TYPE 3
*.	38Q8-10150	[1]	SWING MOTOR ASSY	TYPE 4
*.	38Q8-10151	[1]	SWING MOTOR ASSY	TYPE 4
*-1.	39Q8-11100	[1]	SWING MOTOR	TYPE 3
*-1.	39Q8-11101	[1]	SWING MOTOR	TYPE 3
*-1.	38Q8-11100	[1]	SWING MOTOR	TYPE 4
*-1.	38Q8-11101	[1]	SWING MOTOR	TYPE 4
1.	39Q8-11110	[1]	CASING
K2.	39Q6-11660	[1]	SEAL-OIL
3.	39Q8-11120	[1]	SHAFT
4.	S601-040004	[1]	RING-SNAP
5.	39Q8-11130	[1]	BEARING-ROLLER(R/GEAR)
6.	39Q8-11140	[1]	BEARING-ROLLER(COVER)
7.	39Q6-11150	[1]	PLATE-SWASH
K8.	39Q6-11180	[1]	BLOCK-CYLINDER
K9.	39Q6-41290	[9]	SPRING
K10.	39Q8-11170	[1]	GUIDE-BALL
K11.	39Q6-11210	[1]	PLATE-RETAINER
K12.	39Q6-11220	[9]	PISTON ASSY
13.	39Q6-41361	[5]	PLATE-FRICTION
14.	39Q6-41370	[5]	PLATE-SEPERATED
15.	39Q6-11250	[1]	PISTON-PARKING
16.	39Q8-11180	[26]	SPRING
17.	S471-800454	[1]	PIN-SPRING
K18.	Y172-043004	[1]	O-RING
K19.	Y172-041004	[1]	O-RING
20.	39QB-11270	[1]	PLATE-VALVE
21.	S471-800224	[2]	PIN-SPRING
K22.	Y172-042004	[1]	O-RING
23.	39Q6-11281	[1]	CASING A-VALVE
24.	39Q6-11290	[2]	VALVE-CHECK
25.	39Q6-11300	[2]	SPRING-CHECK VALVE
26.	39Q6-11671	[2]	PLUG
K27.	S631-040004	[2]	O-RING
28.	39Q6-41750	[3]	PLUG
K29.	S631-011004	[3]	O-RING
30.	39Q8-11190	[2]	RELIEF VALVE ASSY
31.	39Q8-11300	[2]	ANTI ROTATING VLV ASSY
32.	39Q6-11500	[2]	PLUG
K33.	S631-012004	[2]	O-RING
K34.	S631-018004	[2]	O-RING
35.	39Q6-11510	[1]	VALVE ASSY-TIME DELAY
36.	39Q6-11601	[1]	GAUGE-LEVEL
37.	S109-180456	[2]	BOLT-SOCKET
38.	S109-180556	[4]	BOLT-SOCKET
39.	P220-430202	[1]	PLUG-HEX
40.	39Q8-11320	[1]	NAME PLATE	TYPE 3
40.	39Q8-11321	[1]	NAME PLATE	TYPE 3
40.	38Q8-11321	[1]	NAME PLATE	TYPE 4
41.	39Q6-41800	[2]	RIVET
K.	39Q8-11150	[1]	ROTARY KIT	SEE ILLUST
K.	39Q6-11170	[1]	BLOCK KIT-CYLINDER	SEE ILLUST
K.	39Q8-11160	[1]	RETAINER KIT	SEE ILLUST
K.	39Q6-11700	[1]	SEAL KIT	SEE ILLUST
*-2.	@	[1]	SWING REDUCTION GEAR	SEE 4117

Contact us for The Latest Prices

Recommend by buyer

FAQ

1.If I only know the excavator model, but can not offer parts No., what should I do ?

If possible, you can send us pictures of old products, nameplate or the size for reference.

2.What is the warranty of the parts after I purchased?

The warranty is 6/12 Months based on the item details.

3.How can I pay the order?

We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.

4.When will get the items after I place order?

Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the

order.

5.How can I do if there is something wrong with the items?

First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us

and we will check. After it is confirmed, pls return to us , we will offer the correct item.

6.What is your main products ?

We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts,

hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
