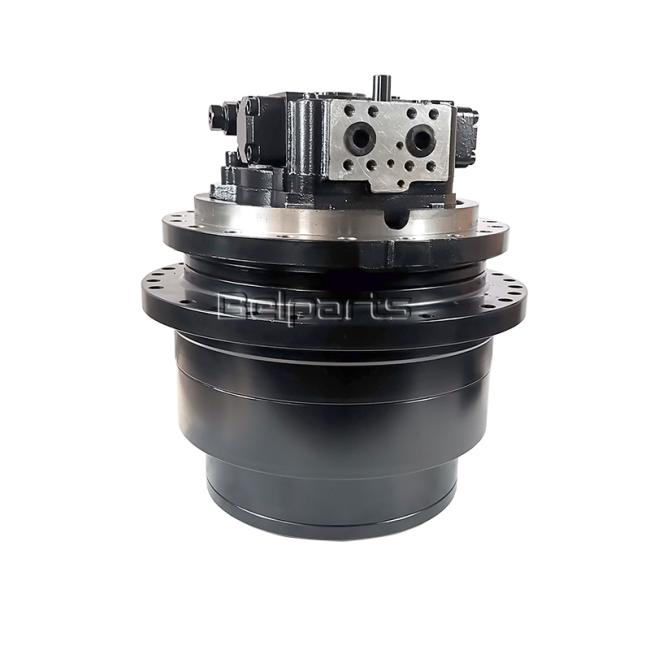

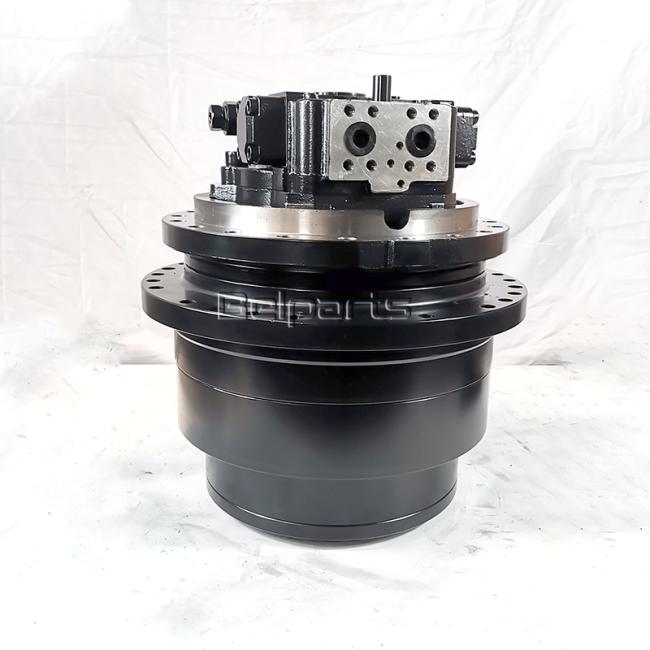

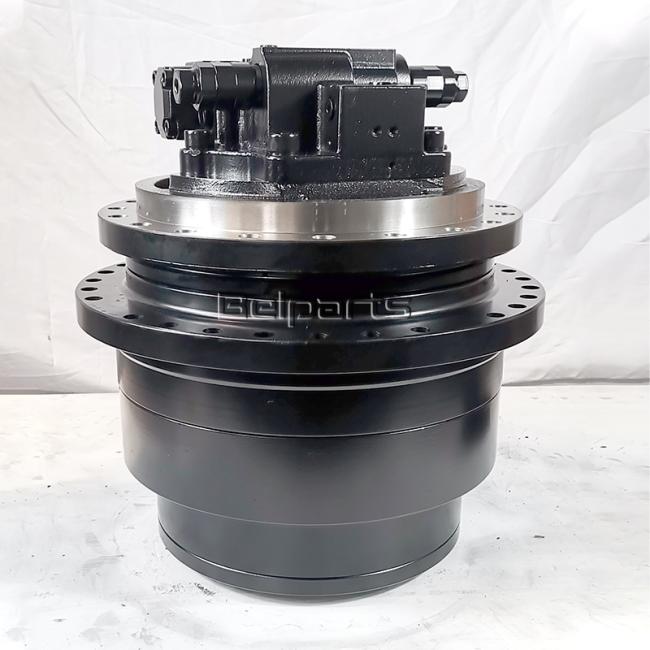

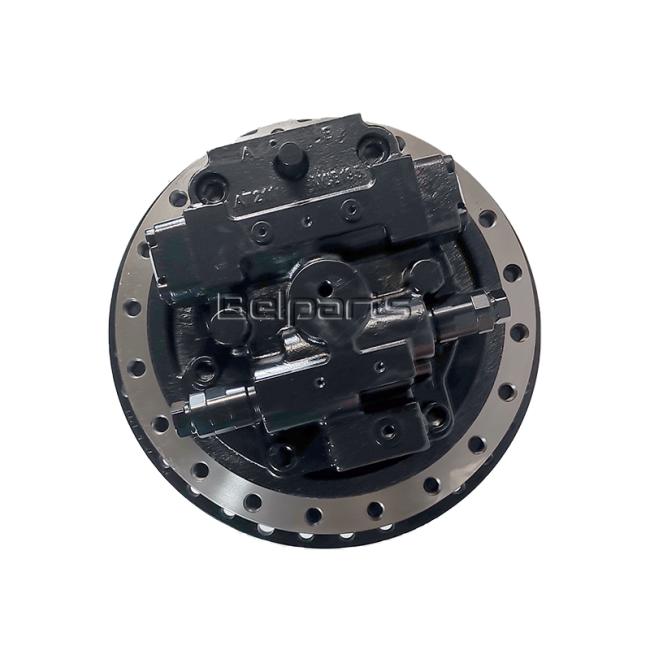

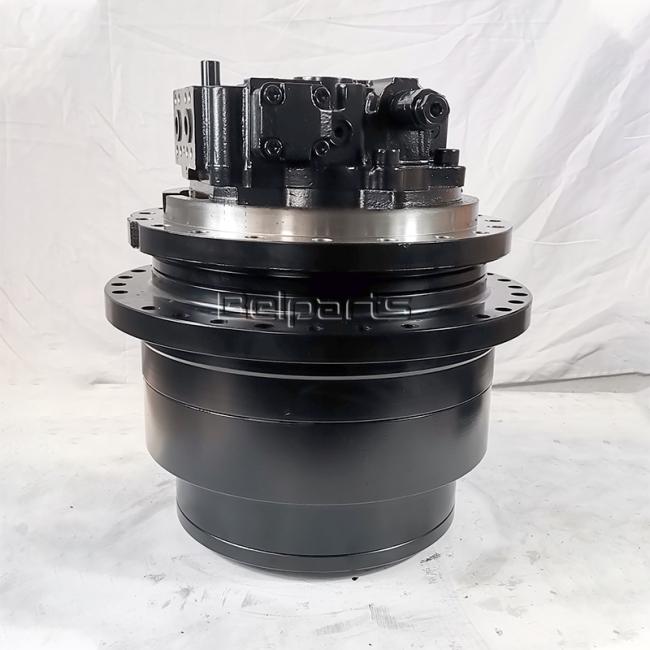

Excavator Case CX460 KTA10190 LJ015030 Final Drive Assembly Construction Machinery Parts
Price:
Negotiated price
MOQ:
1PCS
Delivery Time:
1~3 days
Brand:
case
Product Description
Construction Machinery Parts excavator case CX460 KTA10190 LJ015030 final drive assembly
| Product name | excavator final drive |
| Part name | Final drive |
| Brand | case |
| Model | CX460 |
| Part number | KTA10190 LJ015030 |
| Material | Alloy Steel |
| Weight | 322KG |
| Texture | Steel |

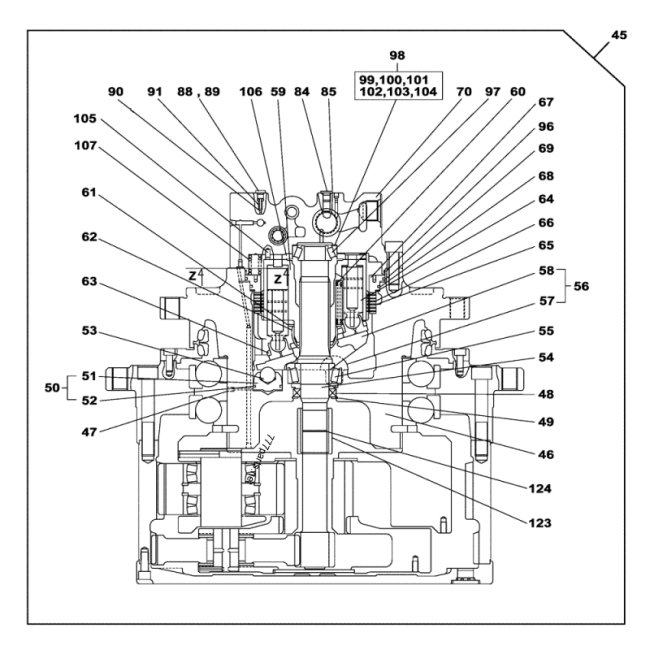

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 45 | LJ015030 | HYDRAULIC MOTOR | 1 | |
| 46 | LW005210 | HOUSING | 1 | |
| 47 | LK005330 | PLUG | 2 | |
| 48 | LE00997 | OIL SEAL | 1 | |
| 49 | 800-2168 | SNAP RING,M68, Int | 1 | |
| 50 | LJ013800 | PISTON | 1 | |
| 51 | LJ013810 | PISTON | 1 | |
| 52 | LE012890 | SEAL | 1 | |
| 53 | LB011180 | BALL | 1 | |
| 54 | LB00833 | SHAFT | 1 | |
| 55 | LB00834 | TAPERED BEARING | 1 | |
| 56 | LR013570 | PLATE | 1 | |
| 57 | LB00794 | BEARING, ROLLER | 2 | |
| 58 | LR013580 | PLATE | 1 | |
| 59 | LS002910 | BRACKET | 1 | |
| 60 | LG00430 | COMPRESSION SPRING | 9 | |
| 61 | LR00950 | SPRING SEAT | 1 | |
| 62 | LB00795 | BALL JOINT | 1 | |
| 63 | LH00320 | RETAINER | 1 | |
| 64 | LJ015040 | PISTON | 9 | |
| 65 | LR00859 | ADJUSTING PLATE | 7 | |
| 66 | LR00858 | PLATE | 6 | |
| 67 | LJ00954 | PISTON | 1 | |
| 68 | LE012900 | SEALING RING | 1 | |
| 69 | LE012910 | SEALING RING | 1 | |
| 70 | LW004720 | COVER | 1 | |
| 84 | LK00391 | PLUG | 2 | |
| 85 | 154467A1 | O-RING,10.8mm ID x 2.4mm Width | 2 | |
| 88 | TK00028 | PLUG | 5 | |
| 89 | 154455A1 | O-RING | 5 | |
| 90 | TJ00129 | CHECK VALVE | 3 | |
| 91 | TG00045 | SPRING | 3 | |
| 98 | LH00389 | SHIM KIT | 1 | |
| 99 | LH00428 | SHIM,0.4mm Thk | 1 | |
| 100 | LH00429 | SHIM,0.5mm Thk | 1 | |
| 101 | LH00430 | SHIM,0.6mm Thk | 1 | |
| 102 | LH00431 | SHIM,0.7mm Thk | 1 | |
| 103 | LH00432 | SHIM,0.8mm Thk | 1 | |
| 104 | LH00433 | SHIM,0.9mm Thk | 1 | |
| 105 | 837-8012 | DOWEL,M8 x 12 | 1 | |
| 106 | LR015650 | PLATE | 1 | |
| 107 | LG00431 | COMPRESSION SPRING | 14 | |
| 123 | LB00793 | COUPLING FLANGE | 1 | |
| 124 | 800-2140 | SNAP RING,M40, Int | 1 |
