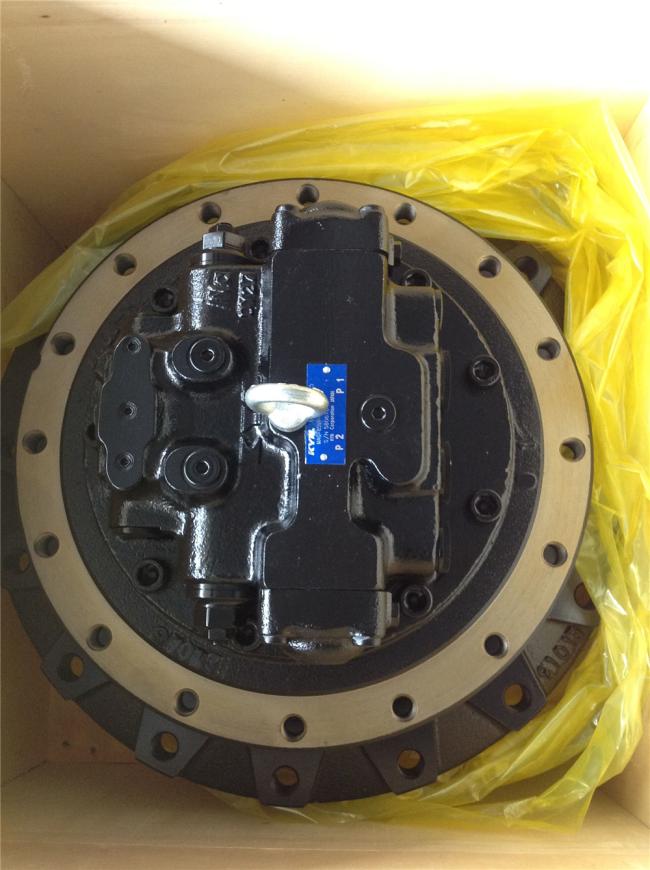

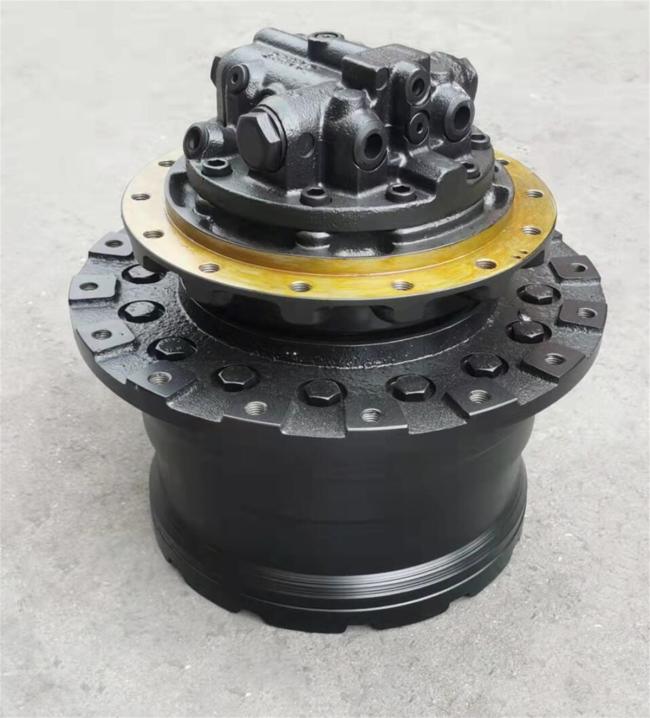

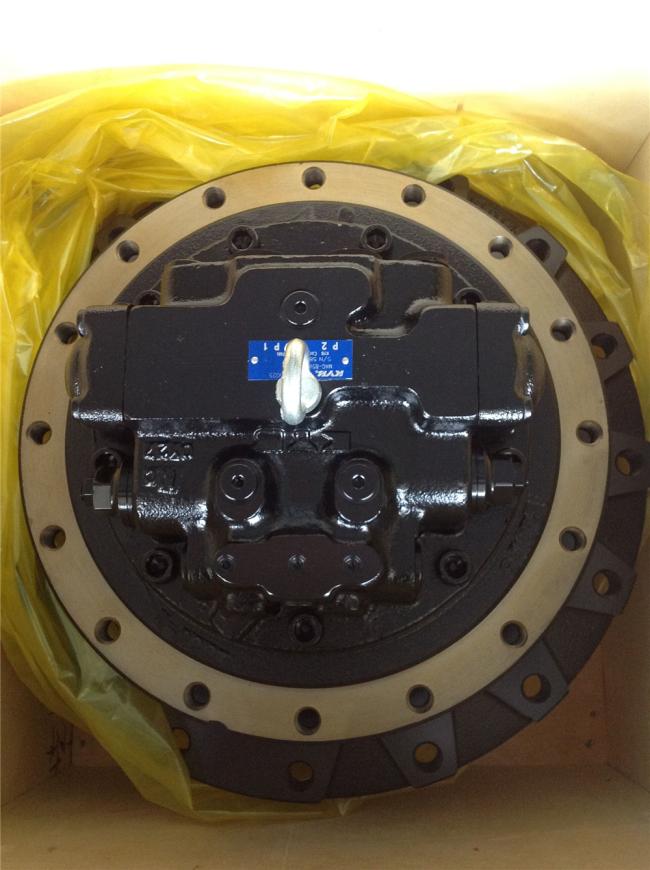

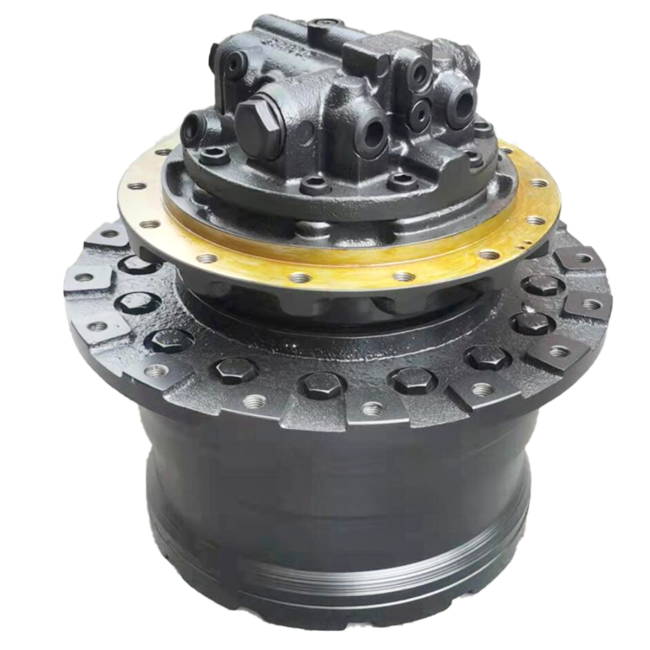

Mini Excavator Hitachi Travelling Motors Zx110 Travel Motor Assy Final Drive
Mini excavator travelling motors for hitachi zx110 travel motor zx110 final drive
| Apply for | excavator |
| Part name | Final drive |
| Brand | Hitachi |
| Model | zx110 |
| Part number |
9180429 |
| Material | Alloy Steel |
| Weight | 275KG |
| Texture | Steel |

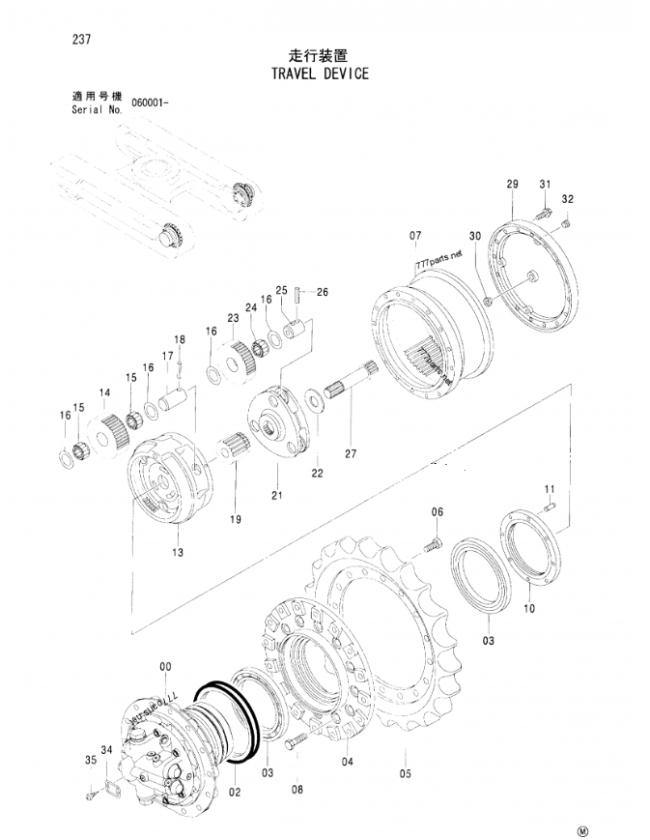

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9180731 | TRAVEL DEVICE ASS'Y (FOR ASSEMBLY OF MACHINE) | 2 | ||
| 9181123 | TRAVEL DEVICE ASS'Y (FOR TRANSPORTATION) | 2 | ||
| 00 | 9180429 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | 9196238 | . MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 02 | 4110369 | . SEAL; GROUP | 1 | |
| 03 | 4321887 | . BRG.; ROL. | 2 | |
| 04 | 1016125 | . DRUM | 1 | |
| 05 | 1010325 | . SPROCKET | 1 | |
| 06 | J931640 | . BOLT | 16 | |
| 07 | 1027082 | . GEAR; RING | 1 | |
| 08 | J931660 | . BOLT | 16 | |
| 10 | 3085728 | . NUT | 1 | |
| 11 | 4436242 | . PIN; KNOCK | 1 | |
| 13 | 1027076 | . CARRIER | 1 | |
| 14 | 3085566 | . GEAR; PLANETARY | 3 | |
| 15 | 4442789 | . BRG.; NEEDLE | 6 | |
| 16 | 4192982 | . PLATE; THRUST | 12 | |
| 17 | 4245966 | . PIN | 3 | |
| 18 | 4144020 | . PIN; SPRING | 3 | |
| 19 | 3085569 | . GEAR; SUN | 1 | |
| 21 | 2043774 | . CARRIER | 1 | |
| 22 | 4418771 | . SPACER | 1 | |
| 23 | 3085568 | . GEAR; PLANETARY | 3 | |
| 24 | 4442788 | . BRG.; NEEDLE | 3 | |
| 25 | 4178203 | . PIN | 3 | |
| 26 | 4192020 | . PIN; SPRING | 3 | |
| 27 | 2043769 | . SHAFT; PROP. | 1 | |
| 29 | 2028800 | . COVER | 1 | |
| 30 | 4258916 | . PIN; STOPPER | 1 | |
| 31 | J011230 | . BOLT; SEMS | 12 | |
| 32 | 4245797 | . PLUG | 3 | |
| 34 | 3053559 | . NAME-PLATE | 1 | |
| 35 | M492564 | . SCREW; DRIVE | 2 |
