1600kg Lead Free Wave Soldering Machine 0.4MPa Spraying Pressure
PCB Lead-Free Wave Soldering Machine
Features
1. Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design,
simple operation.
2. Preheating system uses three independent temperature control so that ensure the excellent
heat preservation, temperature uniformity, temperature difference no more than ±2ºC.
3. Tin stove adopts imported high frequency conversion motor independent control, good performance.
4. Lead-free solder furnace with independent design, environmental protection and safety, easy to clean.
5. Automatic power system, frequency converter control, automatic board input system.
6. Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.
7. Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic
cylinders and PLC control, accurate and reliable.
Specifications
| Mode | RF-450B |
| General | |
| Dimension ( L*W*H ) | 4200*1500*1700 |
| Weight | 1600 kg |
| Operating System | |
| Control Mode | PLC + Computer |
| Spraying System | |
| Transmission Methos | Step Motor |
| Spraying Pressure | 0.25MPa ~ 0.4MPa |
| Flux Flow | Flux Flow Meter |
| Auto Flux Feeding | Optional |
| Exhaust Method | Upper Exhaust |
| Preheating System | |
| Preheating System | IR Tube Option: Hot Air Convenction |
| Preheating Length | 1800MM |
| Preheating Temp | Room Temperature ~300C |
| Warm-up Time | Approx. 20/Min |

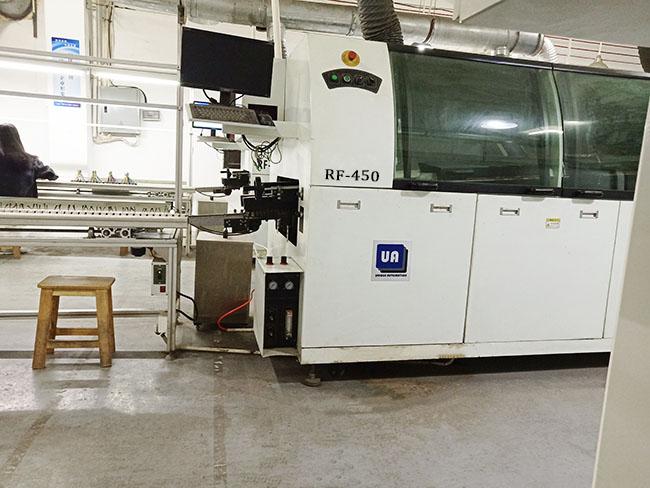

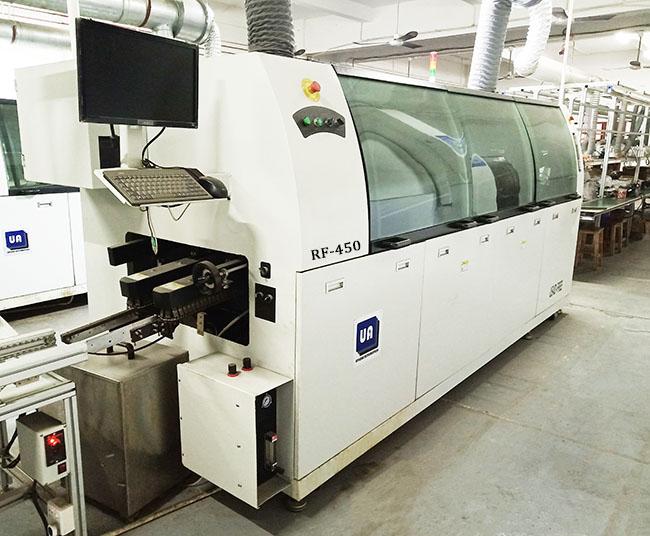

Pictures Showing

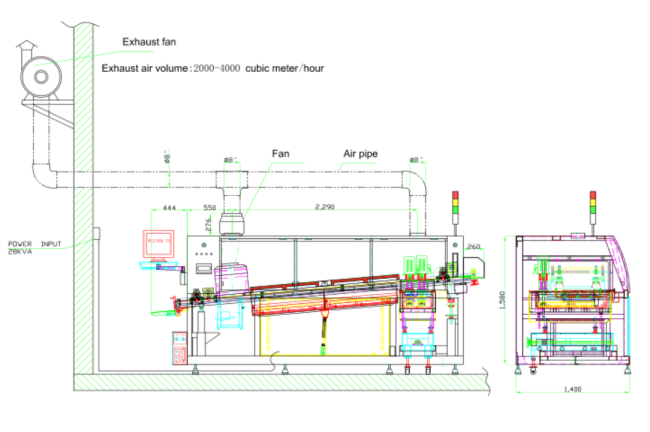

Installation Drawing
Packaing and Shipping
About packing methods
Internal vaccum package and outer wooden package.
About transportation methods
- By sea.
- By Truck.
- By air
- Other
