10 Zones Lead Free Reflow Oven
SMT Reflow Oven
10 Zones Lead Free Reflow Oven
Features
1.Totally meet various requirements for lead free processing.
2. The patent wind wheel design can ensure wind speed which can be adjusted by frequency conversion.
3. All temperature zone applies coercive independent cycles PID controls and up & down heating style,
which make the temperature of the oven accurate with a large heat capacity.
4. Quick warm up, it takes less than 20 minutes to heat from the normal temperature to the working temperature.
5. Thermal uniformity, atmosphere purity and very low exit temperatures.
6. Save energy, environmental friendly, high efficiency.
7. Automatically monitoring and displaying the working condition of the oven the parameter of the oven can
be modified at any moment.
8. The guide rail is made of special aluminum alloy with high rigidity accuracy and intensity, with auto chain lubricating system.
9. Powerful programming software’s controlling system, it can detect the online temperature of PCB and
can analysis save and print the profiles.
10. SMEMA compatible.
Specifications
| Modle | RF- H1010I |
| Machine Dimension (mm) | 5850*1490*1510 |
| Weight (kg) | Approx.2500 |
| Heating Zone Length (mm) | 3632 |
| Running / Starting Power (kw) | 11 / 37 |
| Control | PLC + PC |
| Temp Range | Room Temperature ~ 320C |
| Temp Accuracy | ± 1C |
| Temp Deviation | ± 2C |
| PCB Width (mm) | 50 - 400 ( or customized ) |
| Cooling Type | Forced-air Coooling |
| Cooling Zone length ( mm ) | 600 |
| Conveyor Type | Chain and Mesh Belt |
| Conveyor Speed (mm/min ) | 20-1500 |
| Mesh Belt Width ( mm ) | 460 ( or Customized ) |
| Parts Height | On Baoard 35mm / Under Board 20mm |
| Power Supply | 3P/AC 380V OR 3P/AC 220V |
| Options Available | 450/500 max PCB width Central support for big PCB Extra cooling zone |

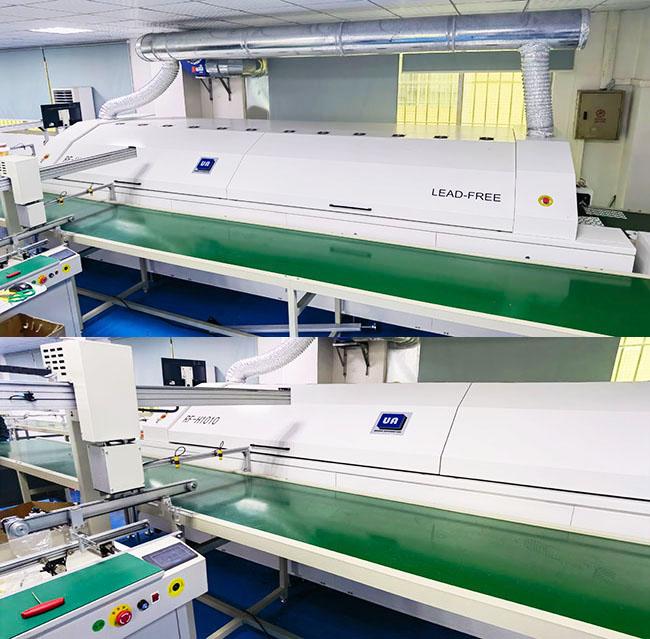

Picture Showing
Company Profile
FAQ
Q1: Are you a trade company or manufacturer ?
We are the manufacturer of high precision SMT Equipment and have more than 10 years’ experience in this line.
OEM & ODM service are available.
Q2 : What is your payment terms?
T/T, L/C, etc
Q3: What’s your terms of packing ?
We usually adopt this method : internal vacuum packing and outer wooden packing.
Or according to your requirement.
Q4 : What is your delivery date?
The delivery date is about 20-30 working days after receive the payment.
Q5:If we come to your factory, you will provide the free training ?
Yes, warmly welcome you to visit our factory and we will arrange the free training for you.
Q6 : Whether these products have quality assurance ?
We have strict QC and all products have 100% quality tested before delivery.
`
Q7: Why choose UA ?
Experienced in design and manufacturing of SMT equipment, UA is one of the most professional
solution providers in the SMT equipment market.
Package and Shipping
Package :
internal vacuum packing and outer wooden packing.
Shippment
1. By air. International Express like Federal Express, DHL, UPS, TNT, etc.
( Fast transportation, safe and accurate)
2. By sea. Suitable for the transportation of large items, carrying a lot of goods and cheap.
3. By truck. Fast transportation and low cost.
4. Other method as you customized.
