Double Speed Chain SMT Production Line Mitsubishi PLC control
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
20 days
Brand:
UA
Product Description
SMT Production Line General Assembly Line
Custom Automatic LCD SKD TV Assembly Line Production Free Flow Chain Home Appliance TV Assembly Production Line

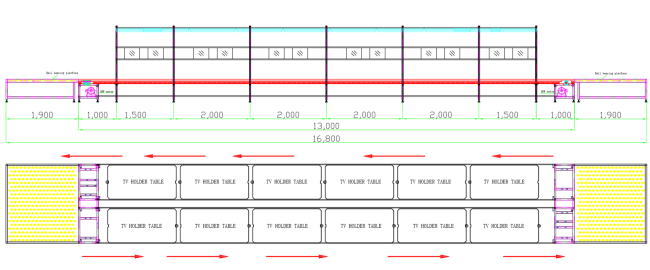

Assembly Line Conveyor
| Assembly Line Width | 00-1200mm or customized according to customer's requirements |
| Assembly Line Height | 750-950mm or customized according to customer's requirements |
| Assembly Line Length | 15m, 16m, 30m, 40m or customized according to customer's requirements |
| Transmission Speed | 2~20 meters/minute |

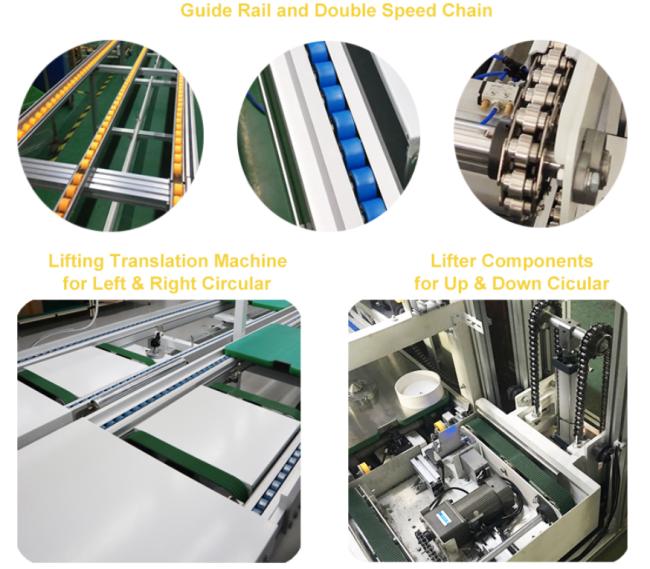

| Guide Rail Material | special aluminum alloy guide rail for accumulation double speed chain |
| Double Speed Chain |
Type: 3 times speed chain, 2.5 times speed chain; Material: nylon chain,stainless steel chain, etc |

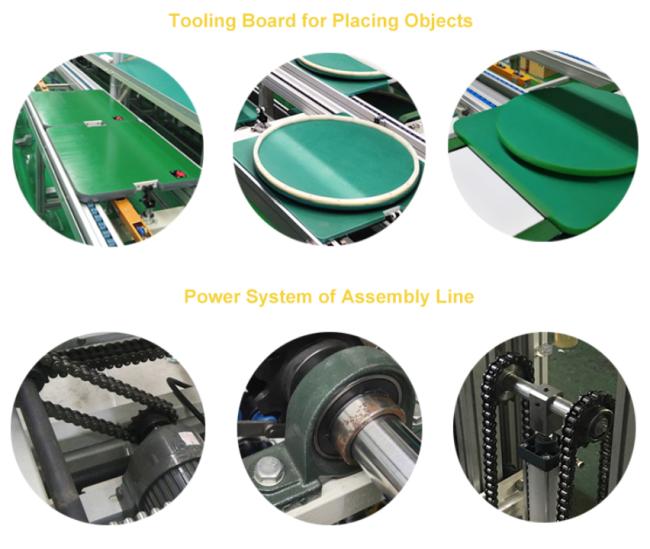

| Tooling Plate Material | Wood plate (regular), aluminum plate, plastic plate |
| Bracket Material | Aluminum profile, iron square tube, stainless steel |
| Motion Mode | left and right circulation, up and down circulation |
| Beat Type |
automatic beat (time can be set freely), or manual beat (foot switch control and hand valve control) |
| Speed Control Mode | fixed speed (regular) or frequency conversion speed control |

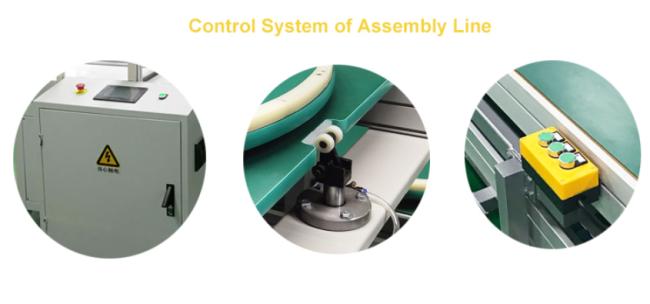

| Control Method | Japan Mitsubishi PLC |
| Other Optional Configurations | Lights, sockets,hanging rails, air pipes, storage tables, workbenches, blocker, lifting and returning machines, lifting transfers, parallel transfers, 90-degree angle machines, etc. |
